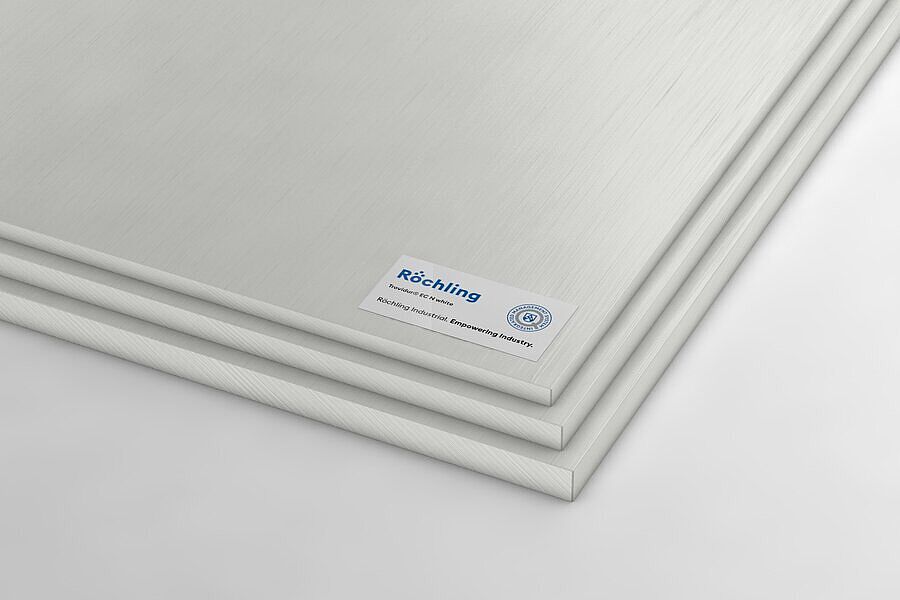

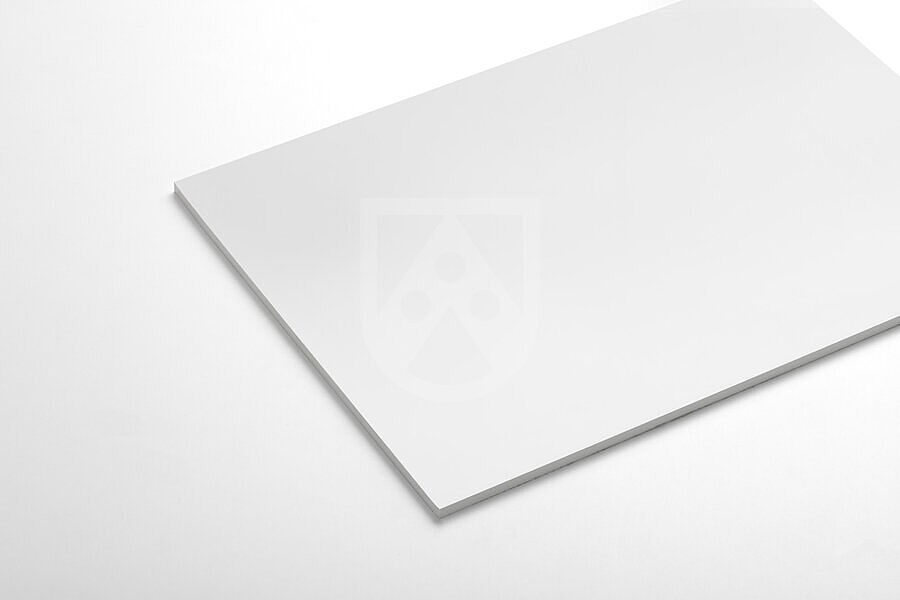

Trovidur® EC N white
PVC-U
T-182 white
sheetwelding rod
Characteristics
- Good resistance to acids, lyes and salt solutions
- Good weldability
- Good glueability
- Electrically insulating
- Easy processing
- Vacuum formable
- Self-Extinguishing after removal of the flame
- Good impact strength
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100713 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 25 mm | 2.000 mm | 1.000 mm | 25 mm | ||
| Stock item (no MOQ) | 100721 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 8 mm | 3.000 mm | 1.500 mm | 8 mm | ||
| Stock item (no MOQ) | 100771 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 2 mm | 2.000 mm | 1.000 mm | 2 mm | ||
| Stock item (no MOQ) | 100772 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 3 mm | 2.000 mm | 1.000 mm | 3 mm | ||
| Stock item (no MOQ) | 100773 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 4 mm | 2.000 mm | 1.000 mm | 4 mm | ||
| Stock item (no MOQ) | 100796 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 1 mm | 2.440 mm | 1.220 mm | 1 mm | ||
| Stock item (no MOQ) | 100797 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 1,5 mm | 2.440 mm | 1.220 mm | 1,5 mm | ||
| Stock item (no MOQ) | 100798 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 3 mm | 2.440 mm | 1.220 mm | 3 mm | ||
| Stock item (no MOQ) | 100799 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 4,5 mm | 2.440 mm | 1.220 mm | 4,5 mm | ||
| Stock item (no MOQ) | 100800 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 6 mm | 2.440 mm | 1.220 mm | 6 mm | ||
| Stock item (no MOQ) | 100801 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 9 mm | 2.440 mm | 1.220 mm | 9 mm | ||
| Stock item (no MOQ) | 100802 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.440 x 1.220 x 12 mm | 2.440 mm | 1.220 mm | 12 mm | ||
| Stock item (no MOQ) | 100877 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 4 mm | 3.000 mm | 1.500 mm | 4 mm | ||
| Stock item (no MOQ) | 100878 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 5 mm | 3.000 mm | 1.500 mm | 5 mm | ||
| Stock item (no MOQ) | 100879 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 3 mm | 3.000 mm | 1.500 mm | 3 mm | ||
| Stock item (no MOQ) | 100880 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 6 mm | 3.000 mm | 1.500 mm | 6 mm | ||
| Stock item (no MOQ) | 100881 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 10 mm | 3.000 mm | 1.500 mm | 10 mm | ||
| Stock item (no MOQ) | 100908 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 20 mm | 3.000 mm | 1.500 mm | 20 mm | ||
| Stock item (no MOQ) | 100917 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 15 mm | 3.000 mm | 1.500 mm | 15 mm | ||
| Stock item (no MOQ) | 101312 | Trovidur® EC N white extruded | welding rod | welding rod | T-182 white | Ø 3 x 1.000 mm | 1.000 mm | 3 mm | |||
| Stock item (no MOQ) | 207125 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 1 mm | 2.000 mm | 1.000 mm | 1 mm | ||
| Stock item (no MOQ) | 247946 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 20 mm | 2.000 mm | 1.000 mm | 20 mm | ||
| Stock item (no MOQ) | 280298 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 10 mm | 2.000 mm | 1.000 mm | 10 mm | ||
| Stock item (no MOQ) | 280320 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 3.000 x 1.500 x 12 mm | 3.000 mm | 1.500 mm | 12 mm | ||
| Stock item (no MOQ) | 297252 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 8 mm | 2.000 mm | 1.000 mm | 8 mm | ||
| Stock item (no MOQ) | 354235 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 5 mm | 2.000 mm | 1.000 mm | 5 mm | ||
| Stock item (no MOQ) | 359347 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 30 mm | 2.000 mm | 1.000 mm | 30 mm | ||
| Stock item (no MOQ) | 440808 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 6 mm | 2.000 mm | 1.000 mm | 6 mm | ||
| Stock item (no MOQ) | 440809 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 12 mm | 2.000 mm | 1.000 mm | 12 mm | ||
| Stock item (no MOQ) | 440810 | Trovidur® EC N white extruded | sheet | sheet | T-182 white | 2.000 x 1.000 x 15 mm | 2.000 mm | 1.000 mm | 15 mm |
Technical Specifications Trovidur® EC N white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 1 ... 4 mm) | DIN 4102 | B1 | |
| Flammability from 3 mm | UL 94 | V0, 5VA | |
| Flammability from 1 mm | UL 94 | V0, 5VB | |
| Flammability (Thickness 1 ... 10 mm) | NF P 92-501 | M1 | |
| Flammability (Thickness 1,5 ... 12 mm) | BS 476 Part 6 | Class 0 | |
| Flammability (Thickness 1,5 ... 12 mm) | BS 476 Part 7 | Class 1 | |
| Flammability (Thickness 1,5 ... 6 mm) | EN 13501-1 | B -s3d0 | |
| WRAS (Thickness 1 ... 6 mm), grey | BS6920-1 | listed |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 55 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 110 |
| Compressive strength | DIN EN ISO 604 | MPa | 75 |
| Bending strength | DIN EN ISO 178 | MPa | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN EN ISO 8302 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | - 15 ... + 60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 68 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Glow wire ignition tempearture | DIN EN 60695-2-13 | °C | 925 |
| Glow wire flammability index | DIN EN 60695-2-12 | °C | 960 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | ∼ 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | ∼ 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
| Dielectric strength | IEC 60243 | kV / mm | 12 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
