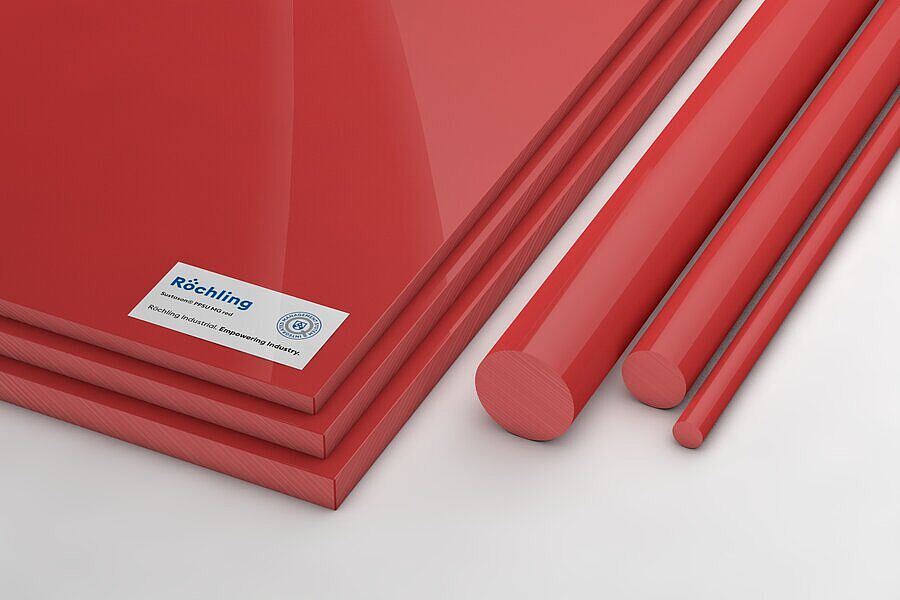

Sustason® PPSU MG red

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

RD1018 red, similar RAL 3027

rodsheet

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

Materials for ventilators

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

Trial implants

For example for knee implants, hip socket implants and sockets. It has very high precision and surface quality, is machined to high tolerances in accordance with customer drawings. Material used is Sustason^® PPSU MG.

Plastic components for endoscopes

Our Sustason® PPSU MG is specifically designed to reduce the weight of medical devices, allowing surgeons to work more precisely and for longer. It offers excellent sterilisation resistance over 2,000 cycles, can be surface finished to customer specifications and offers an improved feel compared to metal. It is manufactured to tight tolerances and is available in a range of colours.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600843	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	600844	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	609698	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	15 x 620 x 3000 mm	3,000 mm	620 mm	15 mm
No stock item (MOQ)	609700	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	15 x 620 x 1000 mm	1,000 mm	620 mm	15 mm
No stock item (MOQ)	632609	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	50 x 620 x 1000 mm	1,000 mm	620 mm	50 mm
No stock item (MOQ)	665961	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	690686	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (MOQ)	690690	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 65 x 3000 mm	3,000 mm		65 mm
No stock item (MOQ)	721094	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	808070	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 25 x 3000 mm	3,000 mm		25 mm
No stock item (MOQ)	808071	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	808072	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (MOQ)	808580	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	25 x 620 x 3000 mm	3,000 mm	620 mm	25 mm
No stock item (MOQ)	808581	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	808584	Sustason® PPSU MG red extruded	sheet	sheet	RD1018 red, similar RAL 3027	50 x 620 x 3000 mm	3,000 mm	620 mm	50 mm
No stock item (MOQ)	808890	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	808891	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	920799	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	923316	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	923317	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	931231	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 75 x 1000 mm	1,000 mm		75 mm
No stock item (MOQ)	931232	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (MOQ)	931553	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (no MOQ)	932161	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (MOQ)	934283	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	934403	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	934790	Sustason® PPSU MG red extruded	rod	rod	RD1018 red, similar RAL 3027	Ø 20 x 1000 mm	1,000 mm		20 mm

Technical Specifications Sustason® PPSU MG red

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet

Technical Data Sheet Sustason® PPSU MG red

Flyer Sustason® PPSU MG red

Product Handling (including processing instructions, storage instructions and general safety instructions)

Product Handling Information Sheet Sustason® PPSU MG red

Additional Documents

RI_Folder_Healthcare.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
