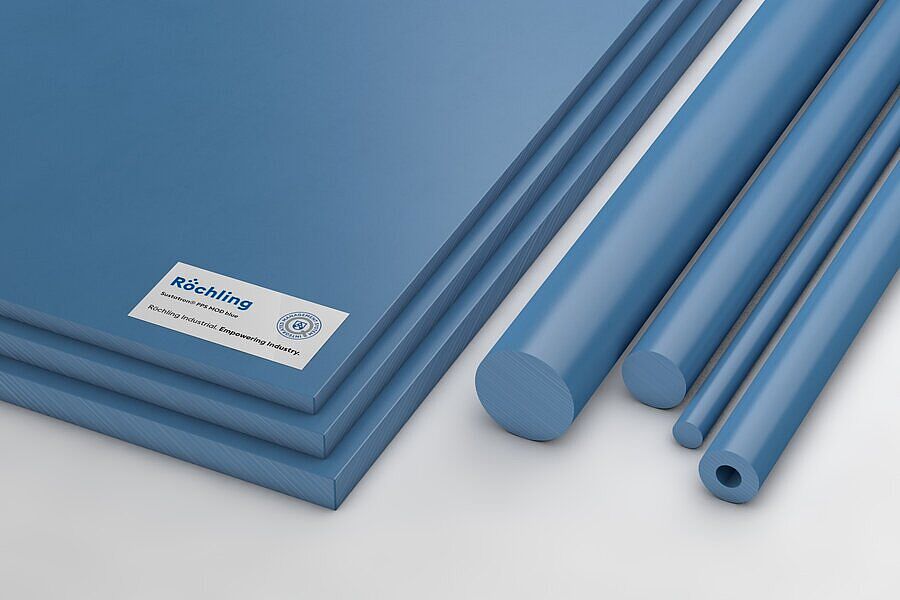

Sustatron® PPS MOD blue
PPS
blue
rod
Characteristics
- High hardness
- High rigidity
- High heat deflection temperature
- Low moisture absorption
- Chemical resistant
- Low wear
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 809727 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 809728 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 60 x 1000 mm | 1,000 mm | 60 mm | |||
| No stock item (MOQ) | 809730 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 40 x 1000 mm | 1,000 mm | 40 mm | |||
| No stock item (MOQ) | 809732 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 16 x 3000 mm | 3,000 mm | 16 mm | |||
| No stock item (MOQ) | 810101 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 100 x 3000 mm | 3,000 mm | 100 mm | |||
| No stock item (MOQ) | 921205 | Sustatron® PPS MOD blue extruded | rod | rod | blue | Ø 90 x 3000 mm | 3,000 mm | 90 mm |
Technical Specifications Sustatron® PPS MOD blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,38 |
| Water absorption | DIN EN ISO 62 | % | 0,0 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 4 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 5,0 |
| Shore hardness | DIN EN ISO 868 | scale D | 77 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 285 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 50 |
| Service temperature, long term | Average | °C | -20 … 220 |
| Service temperature, short term (max.) | Average | °C | 260 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1016 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1013 |
