Polystone® M polyblue
PE — PE-UHMW - PE 1000
Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.
signal blue, similar RAL 5005

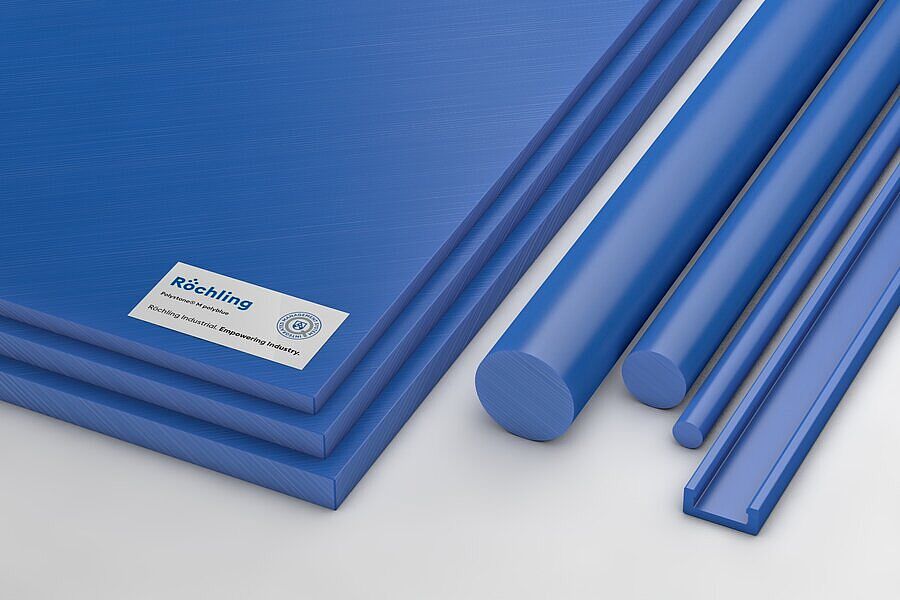

rodsheet
Characteristics
- Long lifetime
- Good sliding properties with soft sliding partners
- Highly impact resistant
- Low moisture absorption
- Good wear resistance
Industries
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 481534 | Polystone® M polyblue blue extruded | rod | rod | signal blue, similar RAL 5005 | Ø 80 x 1.000 mm | 1 000 mm | 80 mm | |||
| No stock item (MOQ) | 237747 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 6.000 x 1.000 x 50 mm | 6 000 mm | 1 000 mm | 50 mm | ||
| No stock item (MOQ) | 245291 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 6.000 x 1.000 x 27 mm | 6 000 mm | 1 000 mm | 27 mm | ||
| No stock item (MOQ) | 263161 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 2.000 x 1.000 x 40 mm | 2 000 mm | 1 000 mm | 40 mm | ||
| No stock item (MOQ) | 276960 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 2.000 x 1.000 x 20 mm | 2 000 mm | 1 000 mm | 20 mm | ||
| No stock item (MOQ) | 302933 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 2.000 x 1.000 x 50 mm | 2 000 mm | 1 000 mm | 50 mm | ||
| No stock item (MOQ) | 417956 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 6.000 x 2.000 x 20 mm | 6 000 mm | 2 000 mm | 20 mm | ||
| No stock item (MOQ) | 420690 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 3.000 x 2.000 x 50 mm | 3 000 mm | 2 000 mm | 50 mm | ||
| No stock item (MOQ) | 420713 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 6.000 x 2.000 x 50 mm | 6 000 mm | 2 000 mm | 50 mm | ||
| No stock item (MOQ) | 462090 | Polystone® M polyblue blue pressed | sheet | sheet | signal blue, similar RAL 5005 | 6.000 x 2.000 x 27 mm | 6 000 mm | 2 000 mm | 27 mm |
Technical Specifications Polystone® M polyblue pressed
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Molecular weight | - | 106 g/mol | ∼ 9 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >20 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >700 |
| Notched impact strength | DIN EN ISO 11542-2 | kJ / m2 | >100 |
| Shore hardness | DIN EN ISO 868 | scale D | >65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -250 … 80 |
| Service temperature, short term (max.) | Average | °C | 130 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | >1014 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
