Polystone® P CubX® (Homopolymer) grey
PP-H

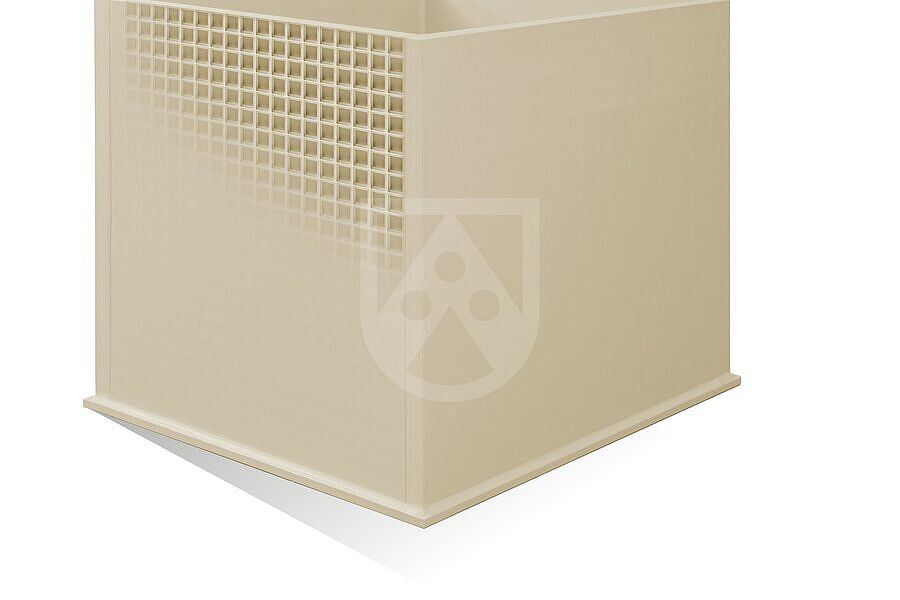

Polystone® P CubX®: Polystone® P (PP), již desítky let celosvětově osvědčený materiál pro stavbu obdélníkových a kulatých nádrží.
- Vysoká podélná i příčná tuhost
- Vysoká odolnost proti chemikáliím
- Nízká hmotnost, snadná manipulace
- Dobrá tepelná izolace
- Snadná svařitelnost pomocí svařování natupo, tažného svařování teplým plynem a extruzního svařování
grey, similar RAL 7032

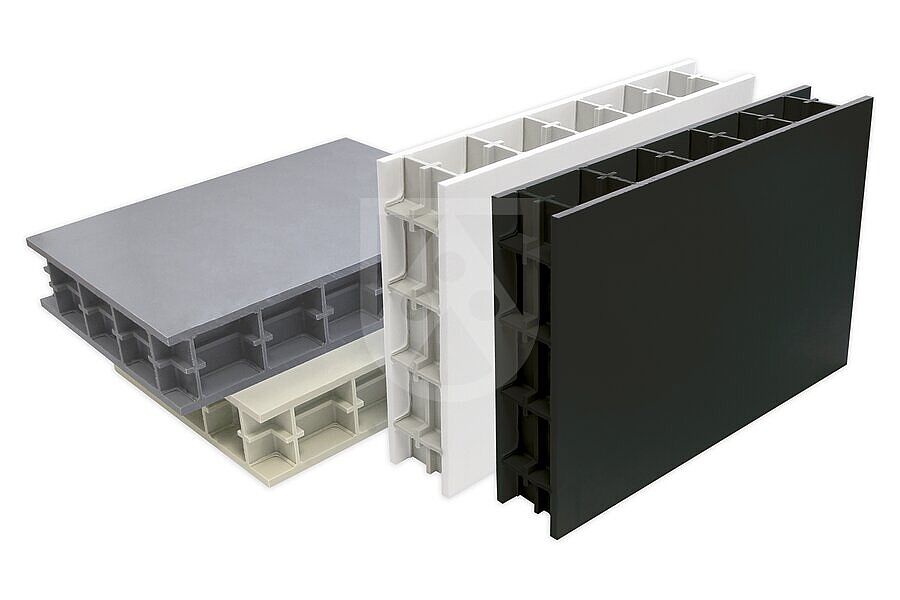

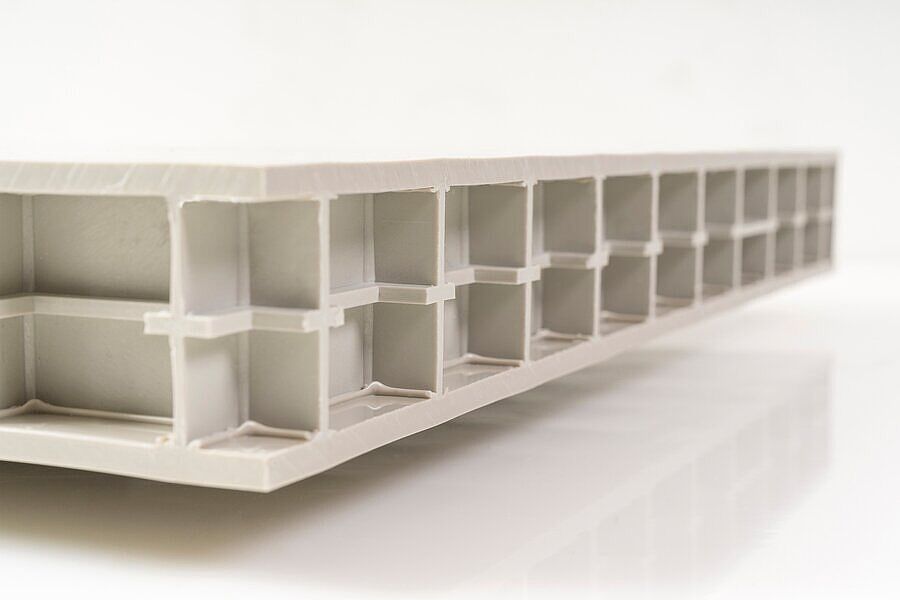

cross-ribbed twin-wall sheet
Characteristics
- High longitudinal and transversal stiffness
- Good handling
- Low weight
- Good thermal insulation
- Good machinability
- Good weldability
- Chemical resistant
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 409576 | Polystone® P CubX® (Homopolymer) grey | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | grey, similar RAL 7032 | 2.000 x 1.500 x 57 mm | 2 000 mm | 1 500 mm | 57 mm | ||
| No stock item (MOQ) | 434294 | Polystone® P CubX® (Homopolymer) grey | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | grey, similar RAL 7032 | 2.000 x 1.500 x 57 mm | 2 000 mm | 1 500 mm | 57 mm |
Technical Specifications Polystone® P CubX® (Homopolymer) grey
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | ISO 8302 | Tested with: GHP 500-1, Single-sheet process | W / (m * K) | Lambda 0,18 |
| Density | DIN EN ISO 1183 | g / cm3 | 0,3 |
| Area weight | kg/m2 | 17,1 | |
| Weld strength lattice / covering sheets | MPa | ≥ 20 | |
| Flatness | DIN EN ISO 15860 | mm/m | ≤ 3 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Dielectric strength | REP internal Tests | kV | >130 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density, RT | DIN EN ISO 1183 | g / cm3 | 0,92 |
| Yield stress | DIN EN ISO 527 | MPa | 32 |
| Elongation at break | DIN EN ISO 527 | % | > 50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Dielectric constant | IEC 60250 | 2,4 | |
| Surface resistivity | DIN EN 62631-3-2 | >1014 |
