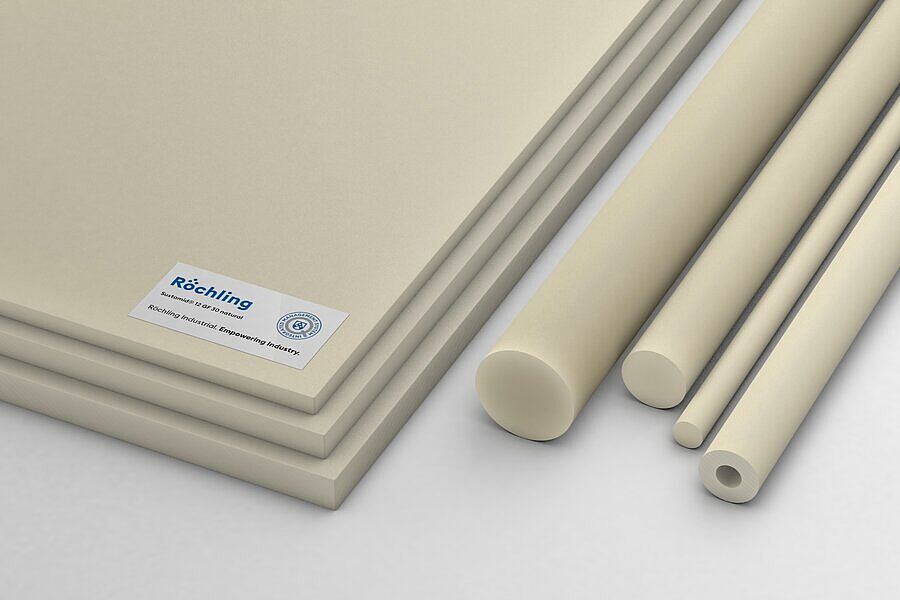

Sustamid® 12 GF 30 natural
PA — PA 12
natural
sheetrodtubular bar
Characteristics
- High heat deflection temperature
- Good noise absorption properties
- Vibration damping
- High abrasion resistance
- High stiffness
- Good compressive strength
- High mechanical strength
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 102320 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 16 x 620 x 3000 mm | 3,000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 102324 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 50 x 620 x 3000 mm | 3,000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 118042 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 20 x 3000 mm | 3,000 mm | 20 mm | |||
| No stock item (MOQ) | 118046 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 118047 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3,000 mm | 50 mm | |||
| No stock item (MOQ) | 118048 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 619328 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 50 x 1000 mm | 1,000 mm | 50 mm | |||
| No stock item (MOQ) | 678821 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 130 x 1000 mm | 1,000 mm | 130 mm | |||
| No stock item (MOQ) | 800942 | Sustamid® 12 GF 30 natural extruded | tubular bar | tubular bar | natural | Ø 125/70 x 2000 mm | 2,000 mm | 125 mm | 70 mm | ||
| No stock item (MOQ) | 800943 | Sustamid® 12 GF 30 natural extruded | tubular bar | tubular bar | natural | Ø 125/70 x 3000 mm | 3,000 mm | 125 mm | 70 mm | ||
| No stock item (MOQ) | 803371 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 45 x 1000 mm | 1,000 mm | 45 mm | |||
| No stock item (MOQ) | 803736 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 16 x 620 x 1000 mm | 1,000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 803738 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 50 x 620 x 1000 mm | 1,000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 803739 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 20 x 1000 mm | 1,000 mm | 20 mm | |||
| No stock item (MOQ) | 803745 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 60 x 1000 mm | 1,000 mm | 60 mm | |||
| No stock item (MOQ) | 920394 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 130 x 3000 mm | 3,000 mm | 130 mm | |||
| No stock item (MOQ) | 924593 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 20 x 620 x 1000 mm | 1,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 924594 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 20 x 620 x 3000 mm | 3,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 933161 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 40 x 620 x 3000 mm | 3,000 mm | 620 mm | 40 mm | ||
| No stock item (MOQ) | 933372 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 40 x 620 x 1000 mm | 1,000 mm | 620 mm | 40 mm |
Technical Specifications Sustamid® 12 GF 30 natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,25 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 60 |
| Elongation at break | DIN EN ISO 527 | % | 10 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 5 |
| Shore hardness | DIN EN ISO 868 | scale D | 86 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 180 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,28 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,50 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 60 |
| Service temperature, long term | Average | °C | -30 … 110 |
| Service temperature, short term (max.) | Average | °C | 180 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 140 |
