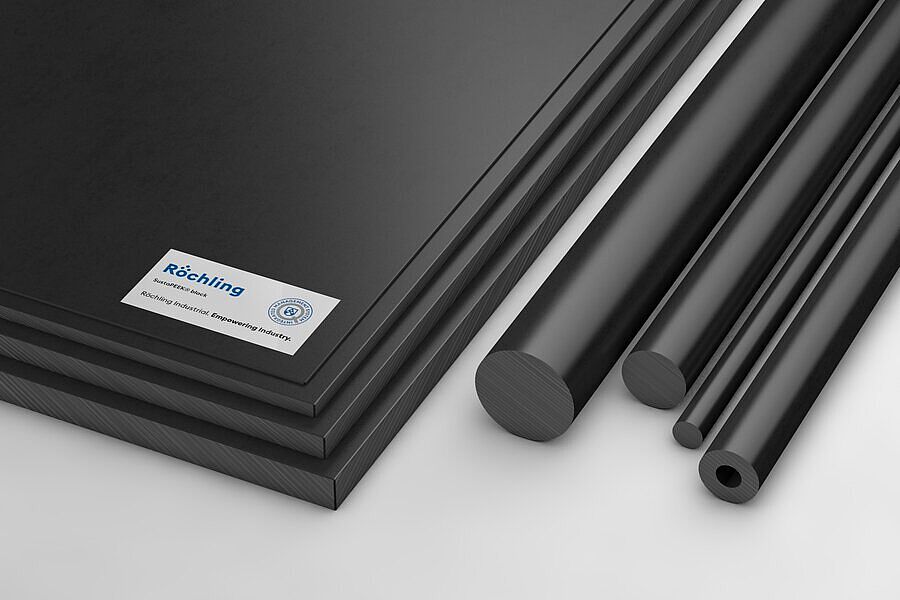

SustaPEEK black

PEEK

black
sheettubular barrod
QR-Code

Characteristics

  • Flame retardant
  • Self-extinguishing
  • Low smoke density

Industries

Application Examples

+

Subsea (Christmas) tree end caps

During drilling the delicate wellhead is covered by a removal cap prior to installation/after removal of the subsea tree. As these are installed by ROV, weight is of a key concern. With thermoplastics like Sustarin® C, SustaPVDF® and SustaPEEK® offering significant weight reduction over traditional metallic components. Further benefits include the natural corrosion resistance of the material, as well as the thermal insulation properties and chemical resistance to the anti-fouling fluid.

Subsea connectors

As subsea equipment becomes more complicated, it is imperative that connectors both electrical & communication are machined and produced using material of the highest quality. SustaPEEK®, SustaPEI® and Sustarin® C are the optimum solution with good electrical resistance, low moisture absorption, dimensional stability and impact resistance for Dry-Mate and Wet-Met systems.

+

Housing for fueling system

Machined in tight tolerances housing for fuel systems made of SustaPEEK® are resistant to fuels and suitable for a broad range of continuous use temperatures.

+

Subsea support structures

With our expertise and wide range of materials, we are able to offer the optimum material for metal replacement projects. This has included the replacement of metallic flanges/adaptor rings with thermoplastic alternatives, for which SustaPEEK® has been selected. The combination of excellent load bearing properties, chemical resistance and dimensional stability resulted in the material selection. This was in addition to thermoplastics and composites natural corrosion resistance.

+

Frac balls

During hydraulic fracking, fac balls are subjected to high pressures to ensure the release of hydrocarbon reserves. For these applications, SustaPEEK® offers the optimum combination of chemical resistance to fracking fluids, excellent mechanical properties and high thermal stability.

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		625890SustaPEEK black extruded sheet sheet black12 x 620 x 1000 mm 1,000 mm 620 mm 12 mm
No stock item (MOQ)		635118SustaPEEK black extruded tubular bar tubular bar blackØ 100/70 x 3000 mm 3,000 mm 100 mm 70 mm
No stock item (MOQ)		635119SustaPEEK black extruded tubular bar tubular bar blackØ 100/70 x 1000 mm 1,000 mm 100 mm 70 mm
No stock item (MOQ)		646357SustaPEEK black extruded sheet sheet black25 x 620 x 2500 mm 2,500 mm 620 mm 25 mm
No stock item (MOQ)		657134SustaPEEK black extruded rod rod blackØ 12 x 2000 mm 2,000 mm 12 mm
No stock item (MOQ)		660573SustaPEEK black extruded rod rod blackØ 70 x 1000 mm 1,000 mm 70 mm
No stock item (MOQ)		668333SustaPEEK black extruded rod rod blackØ 16 x 1000 mm 1,000 mm 16 mm
No stock item (MOQ)		672532SustaPEEK black extruded rod rod blackØ 40 x 2000 mm 2,000 mm 40 mm
No stock item (MOQ)		676514SustaPEEK black extruded rod rod blackØ 18 x 3000 mm 3,000 mm 18 mm
No stock item (MOQ)		678835SustaPEEK black extruded rod rod blackØ 35 x 3000 mm 3,000 mm 35 mm
No stock item (MOQ)		685378SustaPEEK black extruded rod rod blackØ 65 x 3000 mm 3,000 mm 65 mm
No stock item (MOQ)		685379SustaPEEK black extruded rod rod blackØ 65 x 1000 mm 1,000 mm 65 mm
No stock item (MOQ)		685736SustaPEEK black extruded rod rod blackØ 18 x 1000 mm 1,000 mm 18 mm
No stock item (MOQ)		691780SustaPEEK black extruded rod rod blackØ 85 x 3000 mm 3,000 mm 85 mm
No stock item (MOQ)		703890SustaPEEK black extruded rod rod blackØ 60 x 3000 mm 3,000 mm 60 mm
No stock item (MOQ)		703891SustaPEEK black extruded rod rod blackØ 55 x 3000 mm 3,000 mm 55 mm
No stock item (MOQ)		706580SustaPEEK black extruded rod rod blackØ 90 x 2000 mm 2,000 mm 90 mm
No stock item (MOQ)		708925SustaPEEK black extruded rod rod blackØ 85 x 1000 mm 1,000 mm 85 mm
No stock item (MOQ)		713728SustaPEEK black extruded rod rod blackØ 55 x 1000 mm 1,000 mm 55 mm
No stock item (MOQ)		713735SustaPEEK black extruded rod rod blackØ 20 x 2000 mm 2,000 mm 20 mm
No stock item (MOQ)		731854SustaPEEK black extruded tubular bar tubular bar blackØ 50/40 x 3000 mm 3,000 mm 50 mm 40 mm
No stock item (MOQ)		753379SustaPEEK black extruded sheet sheet black30 x 620 x 3000 mm 3,000 mm 620 mm 30 mm
No stock item (MOQ)		755009SustaPEEK black extruded rod rod blackØ 35 x 1000 mm 1,000 mm 35 mm
No stock item (MOQ)		755137SustaPEEK black extruded rod rod blackØ 25 x 2000 mm 2,000 mm 25 mm
Stock item (no MOQ)		800593SustaPEEK black extruded rod rod blackØ 90 x 3000 mm 3,000 mm 90 mm
No stock item (MOQ)		800594SustaPEEK black extruded rod rod blackØ 100 x 3000 mm 3,000 mm 100 mm
No stock item (MOQ)		800643SustaPEEK black extruded rod rod blackØ 90 x 1000 mm 1,000 mm 90 mm
No stock item (MOQ)		800644SustaPEEK black extruded rod rod blackØ 100 x 1000 mm 1,000 mm 100 mm
Stock item (no MOQ)		800979SustaPEEK black extruded rod rod blackØ 32 x 3000 mm 3,000 mm 32 mm
Stock item (no MOQ)		801214SustaPEEK black extruded rod rod blackØ 45 x 3000 mm 3,000 mm 45 mm
Stock item (no MOQ)		801215SustaPEEK black extruded rod rod blackØ 25 x 3000 mm 3,000 mm 25 mm
Stock item (no MOQ)		801252SustaPEEK black extruded rod rod blackØ 12 x 3000 mm 3,000 mm 12 mm
Stock item (no MOQ)		801253SustaPEEK black extruded rod rod blackØ 40 x 3000 mm 3,000 mm 40 mm
Stock item (no MOQ)		803351SustaPEEK black extruded rod rod blackØ 20 x 3000 mm 3,000 mm 20 mm
No stock item (MOQ)		803634SustaPEEK black extruded rod rod blackØ 45 x 1000 mm 1,000 mm 45 mm
No stock item (MOQ)		803678SustaPEEK black extruded sheet sheet black8 x 620 x 1000 mm 1,000 mm 620 mm 8 mm
No stock item (MOQ)		803679SustaPEEK black extruded sheet sheet black25 x 620 x 1000 mm 1,000 mm 620 mm 25 mm
No stock item (MOQ)		803680SustaPEEK black extruded sheet sheet black30 x 620 x 1000 mm 1,000 mm 620 mm 30 mm
No stock item (MOQ)		803696SustaPEEK black extruded sheet sheet black6 x 620 x 1000 mm 1,000 mm 620 mm 6 mm
No stock item (MOQ)		804134SustaPEEK black extruded rod rod blackØ 32 x 1000 mm 1,000 mm 32 mm
No stock item (MOQ)		805528SustaPEEK black extruded rod rod blackØ 12 x 1000 mm 1,000 mm 12 mm
No stock item (MOQ)		805873SustaPEEK black extruded rod rod blackØ 25 x 1000 mm 1,000 mm 25 mm
No stock item (MOQ)		806063SustaPEEK black extruded rod rod blackØ 10 x 1000 mm 1,000 mm 10 mm
No stock item (MOQ)		806064SustaPEEK black extruded rod rod blackØ 20 x 1000 mm 1,000 mm 20 mm
No stock item (MOQ)		806065SustaPEEK black extruded rod rod blackØ 30 x 1000 mm 1,000 mm 30 mm
No stock item (MOQ)		806066SustaPEEK black extruded rod rod blackØ 40 x 1000 mm 1,000 mm 40 mm
No stock item (MOQ)		809002SustaPEEK black extruded rod rod blackØ 10 x 3000 mm 3,000 mm 10 mm
No stock item (MOQ)		809099SustaPEEK black extruded rod rod blackØ 30 x 3000 mm 3,000 mm 30 mm
No stock item (MOQ)		809810SustaPEEK black extruded sheet sheet black30 x 500 x 1000 mm 1,000 mm 500 mm 30 mm
No stock item (MOQ)		810031SustaPEEK black extruded rod rod blackØ 75 x 1000 mm 1,000 mm 75 mm
No stock item (MOQ)		810032SustaPEEK black extruded rod rod blackØ 75 x 3000 mm 3,000 mm 75 mm
No stock item (MOQ)		922184SustaPEEK black extruded sheet sheet black6 x 620 x 3000 mm 3,000 mm 620 mm 6 mm
No stock item (MOQ)		922185SustaPEEK black extruded sheet sheet black8 x 620 x 3000 mm 3,000 mm 620 mm 8 mm
Stock item (no MOQ)		922186SustaPEEK black extruded sheet sheet black10 x 620 x 3000 mm 3,000 mm 620 mm 10 mm
No stock item (MOQ)		922187SustaPEEK black extruded sheet sheet black10 x 620 x 1000 mm 1,000 mm 620 mm 10 mm
No stock item (MOQ)		924352SustaPEEK black extruded sheet sheet black12 x 620 x 3000 mm 3,000 mm 620 mm 12 mm
No stock item (MOQ)		924353SustaPEEK black extruded sheet sheet black12 x 620 x 1000 mm 1,000 mm 620 mm 12 mm
Stock item (no MOQ)		924354SustaPEEK black extruded sheet sheet black16 x 620 x 3000 mm 3,000 mm 620 mm 16 mm
No stock item (MOQ)		924355SustaPEEK black extruded sheet sheet black16 x 620 x 1000 mm 1,000 mm 620 mm 16 mm
Stock item (no MOQ)		924356SustaPEEK black extruded sheet sheet black20 x 620 x 3000 mm 3,000 mm 620 mm 20 mm
No stock item (MOQ)		924357SustaPEEK black extruded sheet sheet black20 x 620 x 1000 mm 1,000 mm 620 mm 20 mm
No stock item (MOQ)		924969SustaPEEK black extruded rod rod blackØ 16 x 3000 mm 3,000 mm 16 mm
Stock item (no MOQ)		925627SustaPEEK black extruded sheet sheet black25 x 620 x 3000 mm 3,000 mm 620 mm 25 mm
No stock item (MOQ)		928384SustaPEEK black extruded sheet sheet black6 x 500 x 1000 mm 1,000 mm 500 mm 6 mm
No stock item (MOQ)		928600SustaPEEK black extruded sheet sheet black5 x 620 x 3000 mm 3,000 mm 620 mm 5 mm
No stock item (MOQ)		929387SustaPEEK black extruded sheet sheet black5 x 620 x 1000 mm 1,000 mm 620 mm 5 mm
Stock item (no MOQ)		929482SustaPEEK black extruded rod rod blackØ 8 x 3000 mm 3,000 mm 8 mm
No stock item (MOQ)		929629SustaPEEK black extruded rod rod blackØ 8 x 1000 mm 1,000 mm 8 mm
No stock item (no MOQ)		930387SustaPEEK black extruded rod rod blackØ 70 x 3000 mm 3,000 mm 70 mm
No stock item (MOQ)		931831SustaPEEK black extruded sheet sheet black25 x 620 x 2000 mm 2,000 mm 620 mm 25 mm
No stock item (MOQ)		934033SustaPEEK black extruded sheet sheet black30 x 500 x 3000 mm 3,000 mm 500 mm 30 mm

Technical Specifications SustaPEEK black

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,32
Water absorptionDIN EN ISO 62%0,2
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa110
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa4000
Shore hardnessDIN EN ISO 868scale D88
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C343
Thermal conductivityDIN 52612-1W / (m * K)0,25
Thermal capacityDIN 52612kJ / (kg * K)1,34
Coefficient of linear thermal expansionDIN 5375210-6 / K50
Service temperature, long termAverage°C-60 … 250
Service temperature, short term (max.)Average°C310
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C152
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (50 Hz)IEC 602500,001
Volume resistivityDIN EN 62631-3-1Ω * cm4,9 * 1016
Surface resistivityDIN EN 62631-3-2Ω1018
Dielectric strengthIEC 60243kV / mm20
