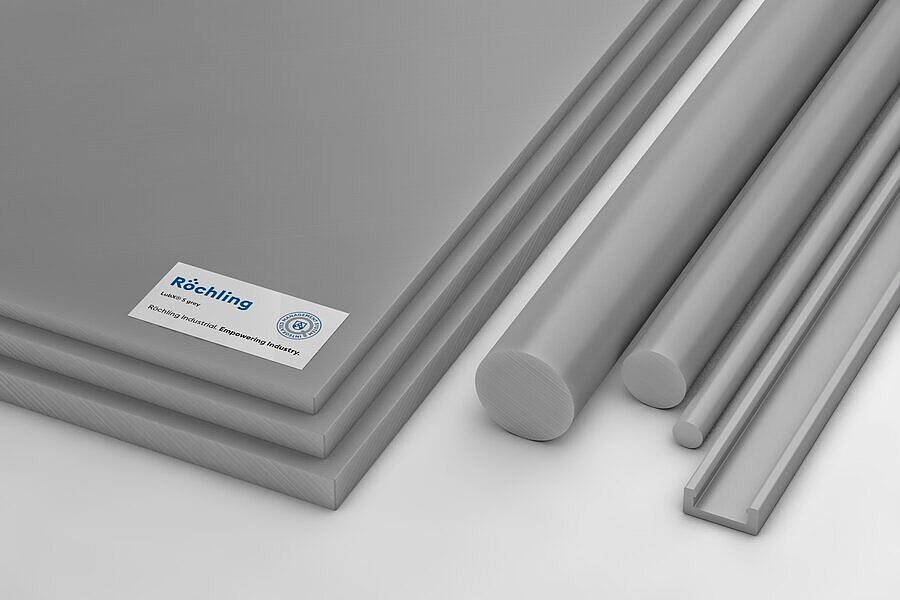

LubX® S grey
PE — PE-UHMW - PE 1000
With LubX® S, Röchling offers a highperformance material especially aligned to the sliding partner PET, which has outstanding dry-running properties at its disposal. It has been especially developed for applications in materials-handling and automation technologies.
- Compared with conventional sliding materials, conveying systems equipped with LubX® S need considerably less energy.
- The considerably lower coefficient of friction of LubX® S eliminates the possibility of the slip-stick effect (backsliding) almost completely and thus increases process stability.
Characteristics
- Energy-saving
- Especially aligned to the sliding partner PET
- 10/2011/EU compliant
- Good wear resistance
Application Examples
Technical Specifications LubX® S grey extruded
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 0,93 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Non-toxicity | + | ||
| Moulding Compound PE | DIN ISO 1872-1 | UHMW-PE-QCD 35-3-4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 19 |
| Elongation at yield stress | DIN EN ISO 527 | % | >50 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | no break |
| Shore hardness | DIN EN ISO 868 | scale A | 60 |
| Shore hardness | DIN EN ISO 868 | scale D | 60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 133 ... 135 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 (*) |
| Service temperature, long term | Average | °C | -150 ... 80 (*) |
| Service temperature, short term (max.) | Average | °C | 130 (*) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | ≥1015 |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | ≥1014 |
