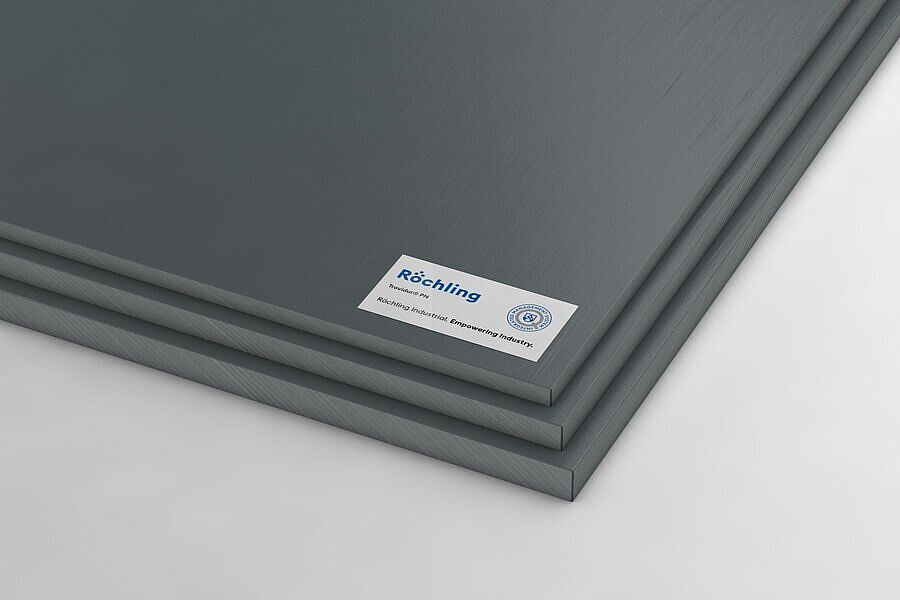

Trovidur® PN grey
PVC-U
T-7011 iron grey
sheet
Characteristics
- Uniform physical properties
- Flame retardant
- Self-Extinguishing after removal of the flame
- Good resistance to acids, lyes and salt solutions
- Electrically insulating
- Good weldability
- Good thermoformability
- Good glueability
- Good impact strength
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100957 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 60 (+6/-0) mm | 2,000 mm | 1,000 mm | 60 mm | ||
| Stock item (no MOQ) | 100978 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 1.000 x 1.000 x 80 (+8/-0) mm | 1,000 mm | 1,000 mm | 80 mm | ||
| Stock item (no MOQ) | 100985 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 1.000 x 1.000 x 100 (+10/-0) mm | 1,000 mm | 1,000 mm | 100 mm | ||
| Stock item (no MOQ) | 206447 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 15 (+1,5/-0) mm | 2,000 mm | 1,000 mm | 15 mm | ||
| Stock item (no MOQ) | 206448 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 20 (+2/-0) mm | 2,000 mm | 1,000 mm | 20 mm | ||
| Stock item (no MOQ) | 206449 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 30 (-0/+3) mm | 2,000 mm | 1,000 mm | 30 mm | ||
| Stock item (no MOQ) | 206450 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 40 (-0/+4) mm | 2,000 mm | 1,000 mm | 40 mm | ||
| Stock item (no MOQ) | 206451 | Trovidur® PN grey pressed | sheet | sheet | T-7011 iron grey | 2.000 x 1.000 x 60 (-0/+6) mm | 2,000 mm | 1,000 mm | 60 mm |
Technical Specifications Trovidur® PN grey
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 56 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Ball Hardness | ISO 2039 | MPa | 120 |
| Compressive strength | DIN EN ISO 604 | MPa | 70 |
| Bending strength | DIN EN ISO 178 | MPa | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | -10 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 67 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
