Spar Caps for wind turbines
Spar Caps for wind turbines

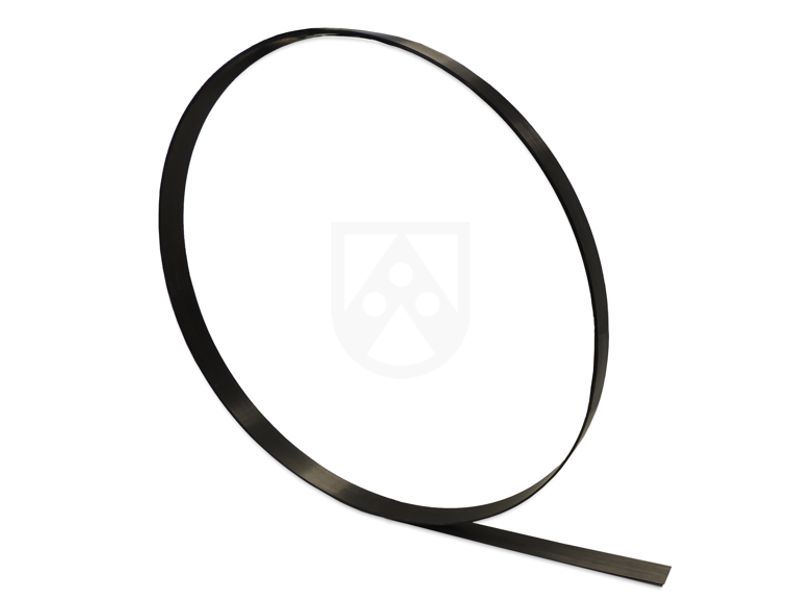

Pulcap® pultuded profiles for spar caps

Strengthen your rotor blades for wind turbines

Together with the ribs, the two spar caps in the rotor blade shells are, one might say, the skeleton of each and every rotor blade of a wind turbine. They must be able to withstand very high loads for the operational life of the turbine. Therefore it is essential to deliver high component quality and to ensure that the best possible properties of the mix of fibres and matrix are achieved.

We offer you Pulcap® pultruded profiles for spar caps with

  • different fibre reinforcements
  • resin matrices
  • and cross-sections.
+

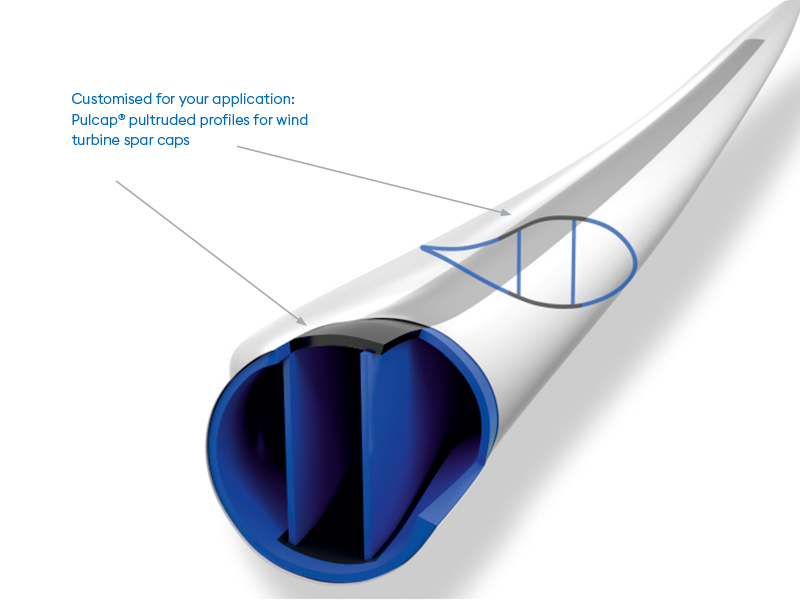

Customised for your application: we manufacture pultruded profiles for wind turbine spar caps

Production process

Our Pulcap® profiles are manufactured using the pultrusion process. The continuous process enables the manufacture of almost endless profiles with a consistently high quality. In the pultrusion process, reinforcement fibres are pulled very straight in tension, which largely reduces the occurrence of fibre undulations and therefore inconsistency in fibre orientation that frequently occurs in other manufacturing processes.

Your advantages

High mechanical properties

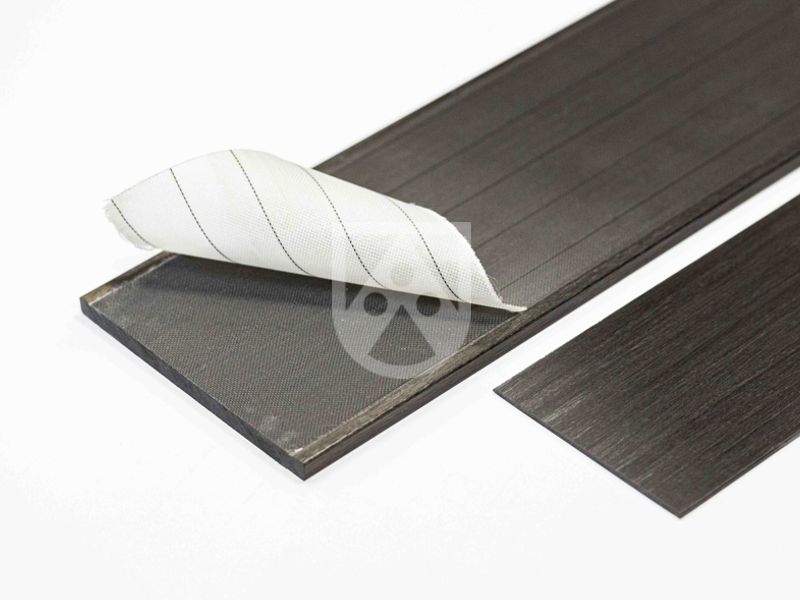

Pulcap® pultruded profiles are precured and quality-tested insertable components with clearly defined, very high mechanical properties. The high tensile stresses during the pultrusion process significantly reduces the possiblity of excessive material defects such as fibre undulations or air bubbles. This method reduces error rates, manufacturing risk and repair requirements for the spar caps to a minimum.

High reliability

Our material is tested in advance according to defined criteria – only approved material is used. Thus material defects that usually arise in the spar cap area during the traditional hand laminating process.

Reduce your mould occupancy time

The mould occupancy time for the rotor blade shells is much shorter using Pulcap® pultruded spar caps than for spar caps produced in the traditional manner.

Material

Fibre reinforcements

  • Glass fibre reinforcement
  • Carbon fibre reinforcement

Resin systems

  • Epoxy resin
  • Vinyl ester resin
  • Polyurethane resin
  • UV-curing resins, depending on the profile cross-section

Cross-sections

  • Reinforcement with glass or carbon fibres possible
  • Various cross-sections: width up to 200 mm, wall thickness 1.2 to 5 mm





+
Consistently high quality: our Pulcap® pultruded profiles for spar caps offer high mechanical properties, lower the manufacturing risk and shorten the mould occupancy time.

Technical data

 Test methodDimensional unitPulcap® CFE
DensityDIN EN ISO 1183g/cm31,6
Fibre volume contentDIN EN 2564%60-70
Tensile Modulus 0°DIN EN ISO 527-5AGPa130-160
Compressive Modulus 0°DIN EN 2850GPa130-150
Compressive Strenght 0°DIN EN 2850MPa1100-1400
Compressive StrainDIN EN 2850%1,0-1,3
Bending Modulus 0°DIN EN ISO 14125GPa130-160



The figures given above are mean values obtained through continuous statistical checks and tests. They are provided as an indicator of quality only and do not establish any warranty unless and until expressly agreed in a purchase contract.
