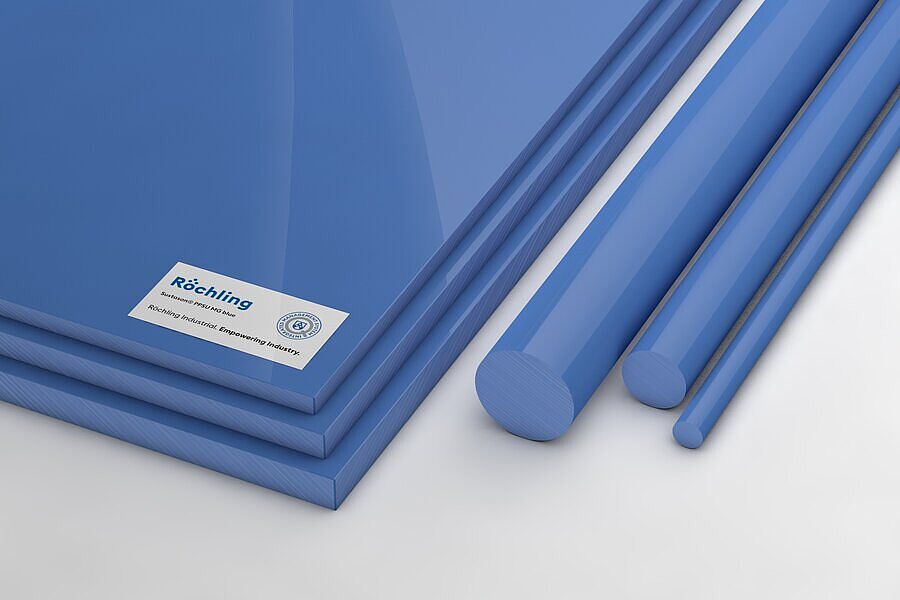

Sustason® PPSU MG blue

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

BU1027 blue, similar RAL 5005

rodsheet

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

Materials for ventilators

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

Trial implants

For example for knee implants, hip socket implants and sockets. It has very high precision and surface quality, is machined to high tolerances in accordance with customer drawings. Material used is Sustason^® PPSU MG.

Plastic components for endoscopes

Our Sustason® PPSU MG is specifically designed to reduce the weight of medical devices, allowing surgeons to work more precisely and for longer. It offers excellent sterilisation resistance over 2,000 cycles, can be surface finished to customer specifications and offers an improved feel compared to metal. It is manufactured to tight tolerances and is available in a range of colours.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600846	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 35 x 1000 mm	1,000 mm		35 mm
Stock item (no MOQ)	601585	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 30 x 3000 mm	3,000 mm		30 mm
No stock item (MOQ)	620788	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	35 x 620 x 1000 mm	1,000 mm	620 mm	35 mm
No stock item (MOQ)	620790	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	35 x 620 x 3000 mm	3,000 mm	620 mm	35 mm
Stock item (no MOQ)	631909	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	632403	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	25 x 620 x 2000 mm	2,000 mm	620 mm	25 mm
No stock item (MOQ)	632404	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	632406	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	45 x 620 x 2000 mm	2,000 mm	620 mm	45 mm
No stock item (MOQ)	657017	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 45 x 2000 mm	2,000 mm		45 mm
No stock item (MOQ)	663044	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm
No stock item (MOQ)	676174	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 18 x 3000 mm	3,000 mm		18 mm
No stock item (MOQ)	679461	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 18 x 1000 mm	1,000 mm		18 mm
No stock item (MOQ)	699320	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	80 x 620 x 2000 mm	2,000 mm	620 mm	80 mm
No stock item (MOQ)	699321	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	80 x 620 x 1000 mm	1,000 mm	620 mm	80 mm
No stock item (MOQ)	717829	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 90 x 1000 mm	1,000 mm		90 mm
Stock item (no MOQ)	717831	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 90 x 3000 mm	3,000 mm		90 mm
No stock item (MOQ)	756560	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (MOQ)	756561	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 50 x 2000 mm	2,000 mm		50 mm
No stock item (no MOQ)	808053	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 20 x 3000 mm	3,000 mm		20 mm
Stock item (no MOQ)	808054	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 25 x 3000 mm	3,000 mm		25 mm
Stock item (no MOQ)	808055	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (no MOQ)	808056	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 40 x 3000 mm	3,000 mm		40 mm
Stock item (no MOQ)	808057	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 45 x 3000 mm	3,000 mm		45 mm
Stock item (no MOQ)	808058	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 50 x 3000 mm	3,000 mm		50 mm
Stock item (no MOQ)	808059	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	808531	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 60 x 1000 mm	1,000 mm		60 mm
No stock item (MOQ)	808532	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	808534	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	808535	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	808536	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	808537	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	808574	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	25 x 620 x 3000 mm	3,000 mm	620 mm	25 mm
No stock item (MOQ)	808575	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	808576	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	40 x 620 x 3000 mm	3,000 mm	620 mm	40 mm
No stock item (MOQ)	808577	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	40 x 620 x 1000 mm	1,000 mm	620 mm	40 mm
No stock item (no MOQ)	808578	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	50 x 620 x 3000 mm	3,000 mm	620 mm	50 mm
No stock item (MOQ)	808579	Sustason® PPSU MG blue extruded	sheet	sheet	BU1027 blue, similar RAL 5005	50 x 620 x 1000 mm	1,000 mm	620 mm	50 mm
No stock item (no MOQ)	920136	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	920137	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (no MOQ)	920752	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 65 x 3000 mm	3,000 mm		65 mm
No stock item (MOQ)	920754	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (MOQ)	920800	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	922958	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 30 x 1000 mm	1,000 mm		30 mm
No stock item (MOQ)	922961	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	922962	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 80 x 2000 mm	2,000 mm		80 mm
No stock item (MOQ)	923939	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 12 x 1000 mm	1,000 mm		12 mm
No stock item (MOQ)	923940	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 12 x 3000 mm	3,000 mm		12 mm
No stock item (MOQ)	923941	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 15 x 1000 mm	1,000 mm		15 mm
No stock item (MOQ)	923942	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 15 x 3000 mm	3,000 mm		15 mm
No stock item (MOQ)	923943	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 22 x 1000 mm	1,000 mm		22 mm
No stock item (MOQ)	923944	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 22 x 3000 mm	3,000 mm		22 mm
No stock item (MOQ)	926835	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 75 x 1000 mm	1,000 mm		75 mm
Stock item (no MOQ)	926836	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (no MOQ)	930204	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	930206	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	932154	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 85 x 1000 mm	1,000 mm		85 mm
No stock item (MOQ)	932155	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 85 x 3000 mm	3,000 mm		85 mm
Stock item (no MOQ)	932211	Sustason® PPSU MG blue extruded	rod	rod	BU1027 blue, similar RAL 5005	Ø 80 x 3000 mm	3,000 mm		80 mm

Technical Specifications Sustason® PPSU MG blue

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet

Technical Data Sheet Sustason® PPSU MG blue

Flyer Sustason® PPSU MG blue

Product Handling (including processing instructions, storage instructions and general safety instructions)

Product Handling Information Sheet Sustason® PPSU MG blue

Additional Documents

RI_Folder_Healthcare.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
