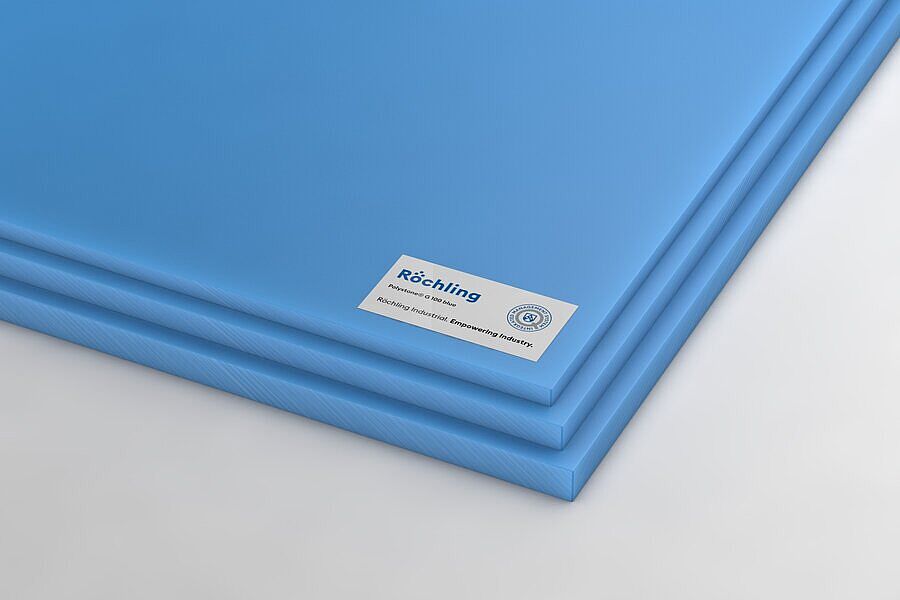

Polystone® G 100 blue
PE — PE-HD (PE 100)
sky blue, similar RAL 5015signal blue, similar RAL 5005light blue, similar RAL 5012
welding rodsheet
Characteristics
- Suitable for contact with drinking water
- Chemical resistant
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 380462 | Polystone® G 100 UV-stabilized blue extruded | welding rod | welding rod | sky blue, similar RAL 5015 | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 409118 | Polystone® G 100 blue extruded | sheet | sheet | signal blue, similar RAL 5005 | 3.000 x 2.000 x 10 mm | 3,000 mm | 2,000 mm | 10 mm | ||
| No stock item (MOQ) | 444663 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 3.000 x 1.500 x 8 mm | 3,000 mm | 1,500 mm | 8 mm | ||
| No stock item (MOQ) | 444664 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 3.000 x 1.500 x 10 mm | 3,000 mm | 1,500 mm | 10 mm | ||
| No stock item (MOQ) | 444665 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 3.000 x 1.500 x 12 mm | 3,000 mm | 1,500 mm | 12 mm | ||
| No stock item (MOQ) | 444666 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 3.000 x 1.500 x 15 mm | 3,000 mm | 1,500 mm | 15 mm | ||
| No stock item (MOQ) | 444667 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 4.000 x 2.000 x 20 mm | 4,000 mm | 2,000 mm | 20 mm | ||
| No stock item (MOQ) | 450308 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 4.000 x 2.000 x 5 mm | 4,000 mm | 2,000 mm | 5 mm | ||
| No stock item (MOQ) | 450310 | Polystone® G 100 blue extruded | welding rod | welding rod | light blue, similar RAL 5012 | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 462580 | Polystone® G 100 blue extruded | welding rod | welding rod | light blue, similar RAL 5012 | Ø 3 (+/-0,2) mm | 3 mm | ||||
| No stock item (MOQ) | 470532 | Polystone® G 100 blue extruded | sheet | sheet | light blue, similar RAL 5012 | 3.000 x 1.500 x 20 mm | 3,000 mm | 1,500 mm | 20 mm |
Technical Specifications Polystone® G 100 blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >23 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1100 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >16 |
| Shore hardness | DIN EN ISO 868 | scale D | 63 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -50 … 80 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 67 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,5 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0004 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 45 |
