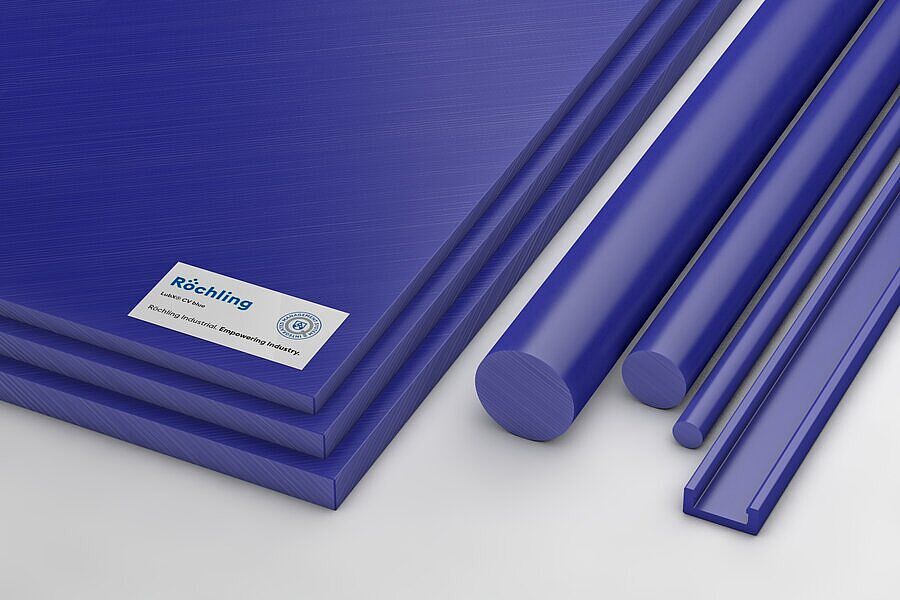

LubX® CV blue

PE — PE-UHMW - PE 1000

LubX® CV is a sliding material especially for systems and machinery used in conveyor technology and automation. The material was developed for systems intended to be operated at higher velocities and pressure loads, meaning increased productivity. Scientific research shows: The material significantly improves system performance and efficiency. Even when used for high-load applications, it retains its excellent sliding characteristics and high wear resistance.

LubX® CV has:

  • exceptionally good sliding properties
  • at the same time exhibits a very low temperature development
  • Both results in lower wear and a longer lifespan of the entire system.
QR-Code

Characteristics

  • Good sliding properties even at higher load
  • Good dry-running properties
  • 10/2011/EU compliant
  • Good machinability
  • GMP 2023/2006 EC compliant

Industries

Application Examples

+

Sliding elements for conveyor systems

Our LubX® product range offers high-performance sliding materials specifically developed for conveyor technology. Thanks to its outstanding sliding properties, conveyor systems equipped with LubX® need less energy, slip-stick effects are avoided and process stability is improved. Depending on the application we recommend LubX® CV, LubX® C, LubX® S or LubX® Ast black.

+

Slide rails for spiral frosters

Profiles made of our material LubX® are used in the construction of spiral frosters for frozen pizzas. With its outstanding slide properties, the material helps to reduce the conveying power required and hence the energy used. LubX® meets the requirements of Regulation 10/2011/EU and the FDA and so is suitable for direct contact with foodstuffs. Depending on the application we recommend LubX® CV, LubX® C, LubX® S or LubX® Ast black.

+

Slide elements for beverage bottling plants

Our LubX® product range offers heavy-duty sliding materials specifically developed for conveyor technology. Thanks to its outstanding slide properties, conveyor systems equipped with LubX®, such as those in beverage bottling plants, need less energy, slip-stick effects are avoided and the stability of the conveyor processes is improved. Depending on the application we recommend LubX® CV, LubX® C, LubX® S or LubX® Ast black.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		340073LubX® CV blue extruded U-profile U-profile (R023) ultramarine blue, similar RAL 500250.000 x 13 x 12 mm 50,000 mm 13 mm 12 mm
No stock item (MOQ)		344913LubX® CV blue extruded Special profile Special profile (R593) ultramarine blue, similar RAL 500230.000 x 11,5 x 12 mm 30,000 mm 11.5 mm 12 mm
No stock item (MOQ)		351165LubX® CV blue extruded U-profile U-profile (R191) ultramarine blue, similar RAL 500250.000 x 15 x 11,4 mm 50,000 mm 15 mm 11.4 mm
No stock item (MOQ)		352417LubX® CV blue extruded U-profile U-profile (R023) ultramarine blue, similar RAL 500260.000 x 13 x 12 mm 60,000 mm 13 mm 12 mm
No stock item (MOQ)		352659LubX® CV blue extruded U-profile U-profile (R269) ultramarine blue, similar RAL 50026.000 x 41 x 9 mm 6,000 mm 41 mm 9 mm
No stock item (MOQ)		352662LubX® CV blue extruded U-profile U-profile (R219) ultramarine blue, similar RAL 500260.000 x 13 x 13 mm 60,000 mm 13 mm 13 mm
No stock item (MOQ)		355788LubX® CV blue extruded U-profile U-profile (R247) ultramarine blue, similar RAL 50026.000 x 14 x 10 mm 6,000 mm 10 mm 1.8 mm 14 mm
No stock item (MOQ)		357885LubX® CV blue extruded U-profile U-profile (R594) ultramarine blue, similar RAL 500260.000 x 6,4 x 8,6 mm 60,000 mm 6.4 mm 8.6 mm
No stock item (MOQ)		359574LubX® CV blue extruded U-profile U-profile (R372) ultramarine blue, similar RAL 50022.000 x 19 x 14 mm 2,000 mm 19 mm 14 mm
No stock item (MOQ)		360433LubX® CV blue extruded C-profile C-profile (R393) ultramarine blue, similar RAL 500250.000 x 15 x 12,5 mm 50,000 mm 15 mm 12.5 mm
Stock item (no MOQ)		360587LubX® CV blue extruded U-profile U-profile (R063) cobalt blue, similar RAL 50136.000 x 42 x 9 mm 6,000 mm 42 mm 9 mm
Stock item (no MOQ)		361435LubX® CV blue extruded U-profile U-profile (R117) sky blue, similar RAL 50156.000 x 42 x 9 mm 6,000 mm 42 mm 9 mm
Stock item (no MOQ)		362547LubX® CV blue extruded Z-profile Z-profile (R187) cobalt blue, similar RAL 50136.000 x 27 x 15 mm 6,000 mm 27 mm 15 mm
No stock item (MOQ)		366818LubX® CV blue extruded C-profile C-profile (R536) ultramarine blue, similar RAL 50026.050 x 40 x 10 mm 6,050 mm 40 mm 10 mm
Stock item (no MOQ)		368065LubX® CV blue extruded Z-profile Z-profile (R007) cobalt blue, similar RAL 50136.000 x 20 x 8 mm 6,000 mm 20 mm 8 mm
No stock item (MOQ)		371218LubX® CV blue extruded Clamp profile Clamp profile (R351) ultramarine blue, similar RAL 500260.000 x 12,5 x 6,5 mm 60,000 mm 12.5 mm 6.5 mm
Stock item (no MOQ)		371382LubX® CV blue extruded Z-profile Z-profile (R007) cobalt blue, similar RAL 501350.000 x 20 x 8 mm 50,000 mm 20 mm 8 mm
Stock item (no MOQ)		372299LubX® CV blue extruded L-profile L-profile (R182) cobalt blue, similar RAL 50136.000 x 22 x 10 mm 6,000 mm 22 mm 10 mm
No stock item (MOQ)		377798LubX® CV blue extruded L-profile L-profile (R141) cobalt blue, similar RAL 50136.000 x 23 x 10 mm 6,000 mm 23 mm 10 mm
No stock item (MOQ)		377976LubX® CV blue extruded Clamp profile Clamp profile (R519) ultramarine blue, similar RAL 500230.000 x 16 x 7 mm 30,000 mm 16 mm 7 mm
No stock item (MOQ)		386395LubX® CV blue extruded Z-profile Z-profile (R205) ultramarine blue, similar RAL 500260000 x 23 x 12 mm 60,000 mm 23 mm 12 mm
No stock item (MOQ)		400819LubX® CV blue extruded C-profile C-profile (R022) ultramarine blue, similar RAL 500260.000 x 49 x 15,5 mm 60,000 mm 49 mm 15.5 mm
No stock item (MOQ)		403802LubX® CV blue extruded Special profile Special profile (R365) ultramarine blue, similar RAL 50026.040 x 40 x 29 mm 6,040 mm 40 mm 29 mm
No stock item (MOQ)		411266LubX® CV blue extruded Clamp profile Clamp profile (R155) cobalt blue, similar RAL 50136000 x 15 x 10 mm 6,000 mm 15 mm 10 mm
No stock item (MOQ)		412568LubX® CV blue extruded U-profile U-profile (R427) ultramarine blue, similar RAL 500250.000 x 10,3 x 13 mm 50,000 mm 10.3 mm 13 mm
No stock item (MOQ)		412646LubX® CV blue extruded rod rod ultramarine blue, similar RAL 5002Ø 40 x 3.000 mm 3,000 mm 40 mm
No stock item (MOQ)		412936LubX® CV blue extruded U-profile U-profile (R221) ultramarine blue, similar RAL 50026.000 x 28,5 x 20 mm 6,000 mm 28.5 mm 20 mm
No stock item (MOQ)		412937LubX® CV blue extruded Clamp profile Clamp profile (R218) ultramarine blue, similar RAL 50026.000 x 25 x 10 mm 6,000 mm 25 mm 10 mm
No stock item (MOQ)		416055LubX® CV blue extruded rod rod ultramarine blue, similar RAL 5002Ø 60 x 2.000 mm 2,000 mm 60 mm
No stock item (MOQ)		416538LubX® CV blue extruded U-profile U-profile (R372) ultramarine blue, similar RAL 50026.000 x 19 x 14 mm 6,000 mm 19 mm 14 mm
No stock item (MOQ)		419578LubX® CV blue extruded Round-Bar-Cover profile Round-Bar-Cover profile (R095) ultramarine blue, similar RAL 500260.000 x 14,3 x 9,5 mm 60,000 mm 14.3 mm 9.5 mm
No stock item (MOQ)		420344LubX® CV blue extruded Clamp profile Clamp profile (R218) ultramarine blue, similar RAL 500250.000 x 25 x 10 mm 50,000 mm 25 mm 10 mm
No stock item (MOQ)		428341LubX® CV blue extruded U-profile U-profile (R705) ultramarine blue, similar RAL 50023.000 x 25 x 10,5 mm 3,000 mm 25 mm 10.5 mm
No stock item (MOQ)		428342LubX® CV blue extruded U-profile U-profile (R706) ultramarine blue, similar RAL 50023.000 x 20 x 10 mm 3,000 mm 20 mm 10 mm
No stock item (MOQ)		428343LubX® CV blue extruded Special profile Special profile (R707) ultramarine blue, similar RAL 50023.000 x 24,5 x 20 mm 3,000 mm 24.5 mm 20 mm
No stock item (MOQ)		430100LubX® CV blue extruded Special profile Special profile (R694) ultramarine blue, similar RAL 50022.000 x 162,3 (+/- 3) x 30 (+/- 1) mm 2,000 mm 162.3 mm 30 mm
No stock item (MOQ)		430103LubX® CV blue extruded Special profile Special profile (R695) ultramarine blue, similar RAL 50022.000 x 162,3 (+/- 3) x 40 (+/- 1) mm 2,000 mm 162.3 mm 40 mm
No stock item (MOQ)		432354LubX® CV blue extruded Special profile Special profile (R719) ultramarine blue, similar RAL 500250.000 (-0/+50) x 22 x 12,5 mm 50,000 mm 22 mm 12.5 mm
No stock item (MOQ)		432748LubX® CV blue extruded C-profile C-profile (R227) ultramarine blue, similar RAL 50026.000 x 50 x 12 mm 6,000 mm 50 mm 12 mm
No stock item (MOQ)		432749LubX® CV blue extruded U-profile U-profile (R706) ultramarine blue, similar RAL 50026.000 x 20 x 10 mm 6,000 mm 20 mm 10 mm
No stock item (MOQ)		432750LubX® CV blue extruded U-profile U-profile (R705) ultramarine blue, similar RAL 50026.000 x 25 x 10,5 mm 6,000 mm 25 mm 10.5 mm
No stock item (MOQ)		432752LubX® CV blue extruded Special profile Special profile (R707) ultramarine blue, similar RAL 50026.000 x 24,5 x 20 mm 6,000 mm 24.5 mm 20 mm
No stock item (MOQ)		434288LubX® CV blue extruded Special profile Special profile (R088) cobalt blue, similar RAL 50136.000 x 45 x 20 mm 6,000 mm 45 mm 20 mm
No stock item (MOQ)		434289LubX® CV blue extruded Clamp profile Clamp profile (R010) cobalt blue, similar RAL 50136.000 x 21 x 12 mm 6,000 mm 21 mm 12 mm
No stock item (MOQ)		435388LubX® CV blue extruded Special profile Special profile (R442) ultramarine blue, similar RAL 500225.000 x 22 x 11,4 mm 25,000 mm 22 mm 11.4 mm
No stock item (MOQ)		437449LubX® CV blue extruded Clamp profile Clamp profile (R543) ultramarine blue, similar RAL 500225.000 x 15,81 x 5,8 mm 25,000 mm 15.81 mm 5.8 mm
No stock item (MOQ)		439004LubX® CV blue extruded Special profile Special profile (R733) ultramarine blue, similar RAL 500250.000 x 18 x 15 mm 50,000 mm 18 mm 15 mm
No stock item (MOQ)		439007LubX® CV blue extruded Special profile Special profile (R732) ultramarine blue, similar RAL 500250.000 x 18 x 15 mm 50,000 mm 18 mm 15 mm
No stock item (MOQ)		441180LubX® CV blue extruded L-profile L-profile (R267) ultramarine blue, similar RAL 50026.000 x 21 x 9 mm 6,000 mm 21 mm 9 mm
No stock item (MOQ)		442220LubX® CV blue extruded Clamp profile Clamp profile (R155) cobalt blue, similar RAL 501360.000 x 15 x 10 mm 60,000 mm 15 mm 10 mm
No stock item (MOQ)		442597LubX® CV blue extruded U-profile U-profile (R236) ultramarine blue, similar RAL 50026.000 x 19 x 16 mm 6,000 mm 19 mm 16 mm
No stock item (MOQ)		442945LubX® CV blue extruded Clamp profile Clamp profile (R352) ultramarine blue, similar RAL 500260.000 x 12,5 x 6,5 mm 60,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		447267LubX® CV blue extruded Clamp profile Clamp profile (R352) ultramarine blue, similar RAL 50023.000 x 12,5 x 6,5 mm 3,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		449094LubX® CV blue extruded Special profile Special profile (R719) ultramarine blue, similar RAL 50024.000 (-0/+50) x 22 x 12,5 mm 4,000 mm 22 mm 12.5 mm
No stock item (MOQ)		449232LubX® CV blue extruded U-profile U-profile (R763) ultramarine blue, similar RAL 500240.000 x 15,4 x 15 mm 40,000 mm 15.4 mm 15 mm
No stock item (MOQ)		451511LubX® CV blue extruded rod rod ultramarine blue, similar RAL 5002Ø 25 x 1.000 mm 1,000 mm 25 mm
No stock item (MOQ)		451512LubX® CV blue extruded rod rod ultramarine blue, similar RAL 5002Ø 30 x 1.000 mm 1,000 mm 30 mm
No stock item (MOQ)		456039LubX® CV blue extruded C-profile C-profile (R338) ultramarine blue, similar RAL 50023000 (-0/+50) x 40 x 10 mm 3,000 mm 40 mm 10 mm
No stock item (MOQ)		457288LubX® CV blue extruded Special profile Special profile (R776) ultramarine blue, similar RAL 50026.000 x 19 x 17,3 mm 6,000 mm 19 mm 17.3 mm
No stock item (MOQ)		459487LubX® CV blue extruded Special profile Special profile (R558) ultramarine blue, similar RAL 500250.000 x 20 x 10,8 mm 50,000 mm 20 mm 10.8 mm
No stock item (MOQ)		460397LubX® CV blue extruded Special profile Special profile (R688) ultramarine blue, similar RAL 50026000 (-0/+50) x 30 x 20 mm 6,000 mm 30 mm 20 mm
No stock item (MOQ)		464195LubX® CV blue extruded Special profile Special profile (R776) ultramarine blue, similar RAL 500250.000 x 19 x 17,3 mm 50,000 mm 19 mm 17.3 mm
No stock item (MOQ)		467250LubX® CV blue extruded Clamp profile Clamp profile (R399) ultramarine blue, similar RAL 500250.000 x 15 x 7 mm 50,000 mm 15 mm 7 mm
No stock item (MOQ)		468852LubX® CV blue extruded U-profile U-profile (R269) ultramarine blue, similar RAL 500250.000 x 41 x 9 mm 50,000 mm 41 mm 9 mm
No stock item (MOQ)		468864LubX® CV blue extruded Z-profile Z-profile (R009) ultramarine blue, similar RAL 500260.000 x 23,5 x 12 mm 60,000 mm 23.5 mm 12 mm
No stock item (MOQ)		469852LubX® CV blue extruded Side-Guide profile Side-Guide profile (R013) cobalt blue, similar RAL 50132.000 x 20 x 15 2,000 mm 20 mm 15 mm
No stock item (MOQ)		473557LubX® CV blue extruded Round-Bar-Cover profile Round-Bar-Cover profile (R735) brilliant blue, similar RAL 5007Ø 13,8/8,8 x 60.000 mm 60,000 mm 13.8 mm 8.8 mm
No stock item (MOQ)		474818LubX® CV blue extruded Clamp profile Clamp profile (R793) cobalt blue, similar RAL 501325.000 x 14 x 6 mm 25,000 mm 14 mm 6 mm
No stock item (MOQ)		476470LubX® CV blue extruded Special profile Special profile (R557) cobalt blue, similar RAL 5013100.000 x 7,8 x 6,1 mm 100,000 mm 7.8 mm 6.1 mm
No stock item (MOQ)		476607LubX® CV blue extruded U-profile U-profile (R220) ultramarine blue, similar RAL 50026000 x 20 x 17 mm 6,000 mm 20 mm 17 mm
No stock item (MOQ)		477909LubX® CV blue extruded Clamp profile Clamp profile (R740) cobalt blue, similar RAL 501325.000 x 15,5 x 7,2 mm 25,000 mm 15.5 mm 7.2 mm
No stock item (MOQ)		477915LubX® CV blue extruded Clamp profile Clamp profile (R745) cobalt blue, similar RAL 501325.000 x 10,2 x 6,2 mm 25,000 mm 10.2 mm 6.2 mm
No stock item (MOQ)		477928LubX® CV blue extruded Clamp profile Clamp profile (R795) cobalt blue, similar RAL 50133000 (-0/+50) x 15,6 x 15,4 mm 3,000 mm 15.6 mm 15.4 mm
No stock item (MOQ)		344656LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 10 mm 2,000 mm 1,000 mm 10 mm
Stock item (no MOQ)		345399LubX® CV blue pressed sample sample ultramarine blue, similar RAL 5002210 x 148 x 10 mm 210 mm 148 mm 10 mm
No stock item (MOQ)		345961LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 15 mm 2,000 mm 1,000 mm 15 mm
Stock item (no MOQ)		345962LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 30 (-0/+0,4) mm 2,000 mm 1,000 mm 30 mm
No stock item (MOQ)		347377LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 2.000 x 25 mm 3,000 mm 2,000 mm 25 mm
No stock item (MOQ)		347384LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 25 mm 6,000 mm 2,000 mm 25 mm
No stock item (MOQ)		348956LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 10 mm 6,000 mm 2,000 mm 10 mm
No stock item (MOQ)		351659LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 25 mm 2,000 mm 1,000 mm 25 mm
No stock item (MOQ)		352582LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 8 mm 2,000 mm 1,000 mm 8 mm
No stock item (MOQ)		357077LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 15 mm 6,000 mm 2,500 mm 15 mm
Stock item (no MOQ)		357399LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 20 (-0/+0,4) mm 2,000 mm 1,000 mm 20 mm
Stock item (no MOQ)		357400LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 15 (-0/+0,4) mm 2,000 mm 1,000 mm 15 mm
Stock item (no MOQ)		357401LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 10 (-0/+0,4) mm 2,000 mm 1,000 mm 10 mm
No stock item (MOQ)		357405LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 15 mm 6,000 mm 2,000 mm 15 mm
No stock item (MOQ)		357407LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		357419LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 30 mm 6,000 mm 2,000 mm 30 mm
No stock item (MOQ)		360577LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 25 mm 6,000 mm 2,500 mm 25 mm
No stock item (MOQ)		360578LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 30 mm 6,000 mm 2,500 mm 30 mm
Stock item (no MOQ)		362269LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50133.000 (-0/+100) x 1.250 (+/-30) x 30 mm 3,000 mm 1,250 mm 30 mm
No stock item (MOQ)		362311LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 60 mm 2,000 mm 1,000 mm 60 mm
No stock item (no MOQ)		362901LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 40 mm 2,000 mm 1,000 mm 40 mm
No stock item (MOQ)		362987LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 35 mm 2,000 mm 1,000 mm 35 mm
No stock item (MOQ)		363792LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50133.000 (-0/+100) x 1.250 (+/-30) x 25 mm 3,000 mm 1,250 mm 25 mm
No stock item (MOQ)		365124LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 16 mm 6,000 mm 2,000 mm 16 mm
No stock item (MOQ)		365785LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 15 mm 6,000 mm 2,500 mm 15 mm
No stock item (MOQ)		365787LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 20 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		366791LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 50 mm 2,000 mm 1,000 mm 50 mm
No stock item (MOQ)		368548LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		371960LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 2.000 x 40 mm 3,000 mm 2,000 mm 40 mm
No stock item (MOQ)		371983LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 40 mm 6,000 mm 2,000 mm 40 mm
No stock item (MOQ)		372942LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 25 mm 2,000 mm 1,000 mm 25 mm
No stock item (MOQ)		375326LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50133.000 x 1.000 x 25 mm 3,000 mm 1,000 mm 25 mm
No stock item (MOQ)		375356LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 25 mm 6,000 mm 2,000 mm 25 mm
No stock item (MOQ)		375407LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 12 mm 3,000 mm 1,250 mm 12 mm
No stock item (MOQ)		375446LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 12 mm 6,000 mm 2,500 mm 12 mm
No stock item (MOQ)		375635LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 20 mm 3,000 mm 1,250 mm 20 mm
No stock item (MOQ)		375636LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 50 mm 3,000 mm 1,250 mm 50 mm
No stock item (MOQ)		375800LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 20 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		377773LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 1.000 x 80 mm 3,000 mm 1,000 mm 80 mm
No stock item (MOQ)		382897LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 16,5 mm 6,000 mm 2,500 mm 16.5 mm
No stock item (MOQ)		382987LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 80 mm 2,000 mm 1,000 mm 80 mm
No stock item (MOQ)		383741LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 15 mm 2,000 mm 1,000 mm 15 mm
No stock item (MOQ)		383742LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 30 mm 2,000 mm 1,000 mm 30 mm
No stock item (MOQ)		383782LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136000 x 2000 x 15 mm 6,000 mm 2,000 mm 15 mm
No stock item (MOQ)		383784LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136000 x 2000 x 30 mm 6,000 mm 2,000 mm 30 mm
No stock item (MOQ)		400737LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 27 mm 6,000 mm 2,500 mm 27 mm
No stock item (MOQ)		402129LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 3 mm 2,000 mm 1,000 mm 3 mm
No stock item (MOQ)		403529LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 16,5 mm 6,000 mm 2,000 mm 16.5 mm
No stock item (MOQ)		403999LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.500 x 10 mm 6,000 mm 2,500 mm 10 mm
No stock item (MOQ)		407842LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 10 mm 3,000 mm 1,250 mm 10 mm
No stock item (MOQ)		408127LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 10 mm 6,000 mm 2,500 mm 10 mm
No stock item (MOQ)		410699LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 35 mm 6,000 mm 2,500 mm 35 mm
No stock item (MOQ)		410997LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 19 mm 6,000 mm 2,500 mm 19 mm
No stock item (MOQ)		411207LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 16 mm 6,000 mm 2,500 mm 16 mm
No stock item (MOQ)		411208LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 20 mm 6,000 mm 2,500 mm 20 mm
No stock item (MOQ)		411209LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 25 mm 6,000 mm 2,500 mm 25 mm
No stock item (MOQ)		411870LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 10 mm 2,000 mm 1,000 mm 10 mm
No stock item (MOQ)		412615LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 45 mm 6,000 mm 2,500 mm 45 mm
No stock item (MOQ)		413473LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 2.000 x 20 mm 3,000 mm 2,000 mm 20 mm
No stock item (MOQ)		413474LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 2.000 x 10 mm 3,000 mm 2,000 mm 10 mm
No stock item (MOQ)		413628LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 2.000 x 30 mm 3,000 mm 2,000 mm 30 mm
No stock item (MOQ)		413863LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 60 mm 6,000 mm 2,000 mm 60 mm
No stock item (MOQ)		418583LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 32 mm 6,000 mm 2,500 mm 32 mm
No stock item (MOQ)		420313LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.500 x 30 mm 6,000 mm 2,500 mm 30 mm
No stock item (MOQ)		420710LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 50 mm 6,000 mm 2,000 mm 50 mm
No stock item (MOQ)		420753LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 12,7 mm 3,000 mm 1,250 mm 12.7 mm
No stock item (MOQ)		420778LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 50 mm 2,000 mm 1,000 mm 50 mm
No stock item (MOQ)		420957LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 12,7 mm 6,000 mm 2,500 mm 12.7 mm
No stock item (MOQ)		426249LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 25 mm 3,000 mm 1,250 mm 25 mm
No stock item (MOQ)		426251LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 30 mm 3,000 mm 1,250 mm 30 mm
No stock item (MOQ)		426763LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 25 mm 6,000 mm 2,500 mm 25 mm
No stock item (MOQ)		426765LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 30 mm 6,000 mm 2,500 mm 30 mm
No stock item (MOQ)		435619LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 8 mm 6,000 mm 2,000 mm 8 mm
No stock item (MOQ)		439504LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 12 mm 2,000 mm 1,000 mm 12 mm
No stock item (MOQ)		439523LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 12 mm 6,000 mm 2,000 mm 12 mm
No stock item (MOQ)		445089LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		449535LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 100 mm 2,000 mm 1,000 mm 100 mm
No stock item (MOQ)		450559LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50133.000 (-0/+100) x 1.250 (+/-30) x 10 mm 3,000 mm 1,250 mm 10 mm
No stock item (MOQ)		460520LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 70 mm 2,000 mm 1,000 mm 70 mm
No stock item (MOQ)		460681LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 70 mm 6,000 mm 2,000 mm 70 mm
No stock item (MOQ)		460865LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 10 mm 6,000 mm 2,000 mm 10 mm
No stock item (MOQ)		462786LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50022.000 x 1.000 x 19 mm 2,000 mm 1,000 mm 19 mm
No stock item (MOQ)		463644LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 1.000 x 25 (+/-0,2) mm 3,000 mm 1,000 mm 25 mm
No stock item (MOQ)		463646LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 x 1.000 x 15 (+/-0,2) mm 3,000 mm 1,000 mm 15 mm
No stock item (MOQ)		464509LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50143.000 x 2.000 x 27 mm 3,000 mm 2,000 mm 27 mm
No stock item (MOQ)		464511LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.000 x 27 mm 6,000 mm 2,000 mm 27 mm
No stock item (MOQ)		464692LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50143.000 x 2.000 x 30 mm 3,000 mm 2,000 mm 30 mm
No stock item (MOQ)		464695LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.000 x 30 mm 6,000 mm 2,000 mm 30 mm
No stock item (MOQ)		468082LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50133.000 (-0/+100) x 1.250 (+/-30) x 23 mm 3,000 mm 1,250 mm 23 mm
No stock item (MOQ)		471513LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50143.000 x 2.000 x 40 mm 3,000 mm 2,000 mm 40 mm
No stock item (MOQ)		471525LubX® CV blue pressed sheet sheet pigeon blue, similar RAL 50146.000 x 2.000 x 40 mm 6,000 mm 2,000 mm 40 mm
No stock item (MOQ)		472591LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50023.000 (-0/+100) x 1.250 (+/-30) x 22 mm 3,000 mm 1,250 mm 22 mm
No stock item (MOQ)		472780LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.500 x 22 mm 6,000 mm 2,500 mm 22 mm
No stock item (MOQ)		473449LubX® CV blue pressed sheet sheet ultramarine blue, similar RAL 50026.000 x 2.000 x 15 (-0,4/+0) mm 6,000 mm 2,000 mm 15 mm
No stock item (MOQ)		480164LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50132.000 x 1.000 x 16,5 mm 2,000 mm 1,000 mm 16.5 mm
No stock item (MOQ)		480318LubX® CV blue pressed sheet sheet cobalt blue, similar RAL 50136.000 x 2.000 x 17 mm 6,000 mm 2,000 mm 17 mm

Technical Specifications LubX® CV blue extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm30,94
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Non-toxicity+
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa19
Elongation at breakDIN EN ISO 527%>250
Tensile modulus of elasticityDIN EN ISO 527MPa500
Notched impact strengthDIN EN ISO 179kJ / m2no break
Shore hardnessDIN EN ISO 868scale D60
Sliding properties: partner POM (0,5 m/s - 0,5 MPa)REP – Tribology – Test0,13
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C133 – 135
Coefficient of linear thermal expansionDIN 5375210-6 / K150 - 230 (*)
Service temperature, long termAverage°C-150 … 80 (*)
Service temperature, short term (max.)Average°C130 (*)
Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2Ω>1014

Contact

You have the option of attaching files to your message. The files have to be
JPEG, PNG, BMP, PDF-documents. Please be sure that you only add files up to 8 MB

Information on data protection can be found here.

Renew

Search

Refine Results

Röchling Group

Divisions

Career

Services

Stay informed
© 2024 Röchling
Contact

Share

Share this page:

Facebook
Twitter
Pinterest
Xing
LinkedIn
Recommend this page via Email

Newsletter Registration

Select Website

Plastics for technical applications

Industrial
