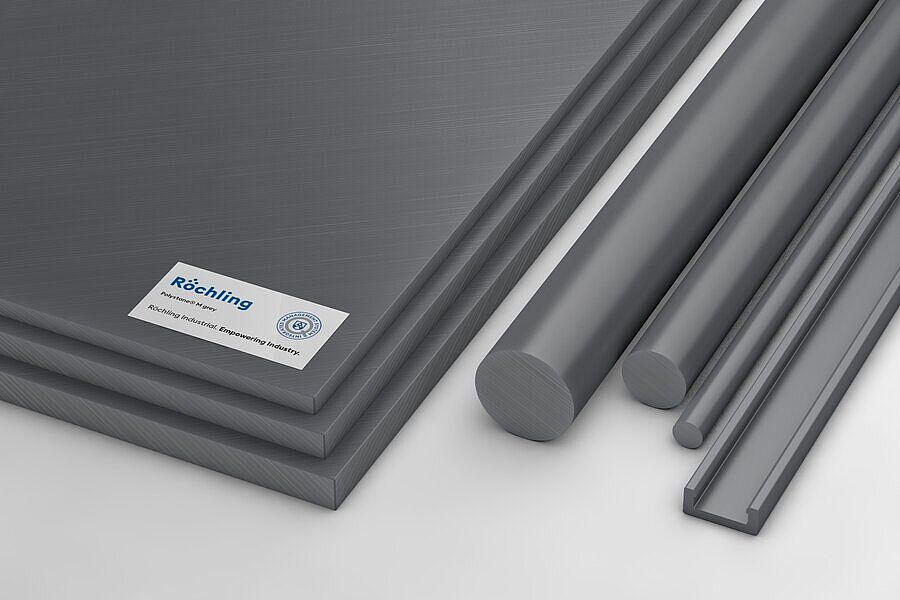

Polystone® M grey

PE — PE-UHMW - PE 1000

Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

squirrel grey, similar RAL 7000silver grey, similar RAL 7001light grey, similar RAL 7035grey, similar RAL 7032
All colors
rodprofilesheet
QR-Code

Characteristics

  • Good mechanical properties
  • Low coefficient of friction
  • Good wear properties

Industries

Application Examples

+

Sliding sheets for the supply area

In the accessible supply area of a biogas facility - the push floor - Polystone® sliding sheets of ultra-high-molecular polyethylene are used. The Polystone® sliding sheets take up transport chains and are characterised by outstanding sliding and abrasion properties. They are also robust, acid-resistant and wear-proof.

+

Chain guide profile for chain guides

Their low slide friction coefficients enable extruded and milled profiles made of Polystone® M for chain guides to reduce the drive energy required in chain conveyors while at the same time improving process stability. Polystone® M also has permanent self-lubrication properties.

+

Fenders

Mounted on fender systems, sliding sheets made of our material Polystone® M protect quay bulkheads and ships during mooring and harbour manoeuvring and during idle periods. The ready-to-mount sheets are characterized by high abrasion and wear resistance and are resistant to corrosion, UV radiation and weathering.

+

Handrail profiles for boards

We offer extruded and milled handrail profiles made of Polystone® M to fit boards.

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		264946Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 20 x 2.000 mm 2,000 mm 20 mm
No stock item (MOQ)		264947Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 25 x 2.000 mm 2,000 mm 25 mm
No stock item (MOQ)		264948Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 30 x 2.000 mm 2,000 mm 30 mm
No stock item (MOQ)		264949Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 40 x 2.000 mm 2,000 mm 40 mm
No stock item (MOQ)		264950Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 50 x 2.000 mm 2,000 mm 50 mm
No stock item (MOQ)		264951Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 60 x 2.000 mm 2,000 mm 60 mm
No stock item (MOQ)		264952Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 70 x 2.000 mm 2,000 mm 70 mm
No stock item (MOQ)		264953Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 80 x 2.000 mm 2,000 mm 80 mm
No stock item (MOQ)		264955Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 100 x 2.000 mm 2,000 mm 100 mm
No stock item (MOQ)		269655Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 120 x 2.000 mm 2,000 mm 120 mm
No stock item (MOQ)		269656Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 150 x 2000 mm 2,000 mm 150 mm
No stock item (MOQ)		283359Polystone® M grey extruded rod rod silver grey, similar RAL 7001Ø 140 x 2.000 mm 2,000 mm 140 mm
No stock item (MOQ)		286006Polystone® M grey extruded Special profile Special profile (R384) light grey, similar RAL 70354.500 x 35 x 30 mm 4,500 mm 35 mm 30 mm
No stock item (MOQ)		309914Polystone® M grey extruded U-profile U-profile (R219) grey, similar RAL 703260.000 x 13 x 13 mm 60,000 mm 13 mm 13 mm
No stock item (MOQ)		343763Polystone® M grey extruded Side-Guide profile Side-Guide profile (R013) grey, similar RAL 70326.000 x 20 x 16 mm 6,000 mm 20 mm 16 mm
No stock item (MOQ)		346976Polystone® M grey extruded Special profile Special profile (R549) signal grey, similar RAL 70044.000 x 10,48 x 9,62 mm 4,000 mm 10.48 mm 9.62 mm
No stock item (MOQ)		353177Polystone® M grey extruded Side-Guide profile Side-Guide profile (R013) grey, similar RAL 70324.000 x 20 x 16 mm 4,000 mm 20 mm 16 mm
No stock item (MOQ)		365177Polystone® M grey extruded rod rod squirrel grey, similar RAL 7000Ø 35 x 2.000 mm 2,000 mm 35 mm
No stock item (MOQ)		365312Polystone® M grey extruded Special profile Special profile (R551) light grey, similar RAL 70356.000 x 123 x 20,1 mm 6,000 mm 123 mm 20.1 mm
No stock item (MOQ)		384263Polystone® M grey extruded Special profile Special profile (R384) light grey, similar RAL 70355200 x 35 x 30 mm 5,200 mm 35 mm 30 mm
No stock item (MOQ)		403573Polystone® M grey extruded Special profile Special profile (R384) light grey, similar RAL 70355.000 x 35 x 30 mm 5,000 mm 35 mm 30 mm
No stock item (MOQ)		409615Polystone® M grey extruded Side-Guide profile Side-Guide profile (R013) grey, similar RAL 70322.000 x 20 x 16 mm 2,000 mm 20 mm 16 mm
No stock item (MOQ)		418019Polystone® M grey extruded Special profile Special profile (R696) graphite grey, similar RAL 70246.000 x 30,7 x 10,5 mm 6,000 mm 30.7 mm 10.5 mm
No stock item (MOQ)		445324Polystone® M grey extruded rod rod iron grey, similar RAL 7011Ø 160 x 2.000 mm 2,000 mm 160 mm
No stock item (MOQ)		446792Polystone® M grey extruded rod rod dust grey, similar RAL 7037Ø 120 x 3.000 (-0/+60) mm 3,000 mm 120 mm
No stock item (MOQ)		468649Polystone® M grey extruded rod rod dust grey, similar RAL 7037Ø 15 x 2.000 mm 2,000 mm 15 mm
No stock item (MOQ)		469401Polystone® M grey extruded U-profile U-profile (R219) blue grey, similar RAL 703160.000 x 13 x 13 mm 60,000 mm 13 mm 13 mm
No stock item (MOQ)		470373Polystone® M grey extruded rod rod signal grey, similar RAL 7004Ø 15 x 2.000 mm 2,000 mm 15 mm
No stock item (MOQ)		476394Polystone® M grey extruded rod rod iron grey, similar RAL 7011Ø 130 x 2.000 mm 2,000 mm 130 mm
No stock item (MOQ)		459444Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 64 mm 6,000 mm 2,000 mm 64 mm
No stock item (MOQ)		459445Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.500 x 64 mm 6,000 mm 2,500 mm 64 mm
No stock item (MOQ)		459446Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70374.000 x 2.000 x 64 mm 4,000 mm 2,000 mm 64 mm
No stock item (MOQ)		459447Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 64 mm 6,000 mm 2,000 mm 64 mm
No stock item (MOQ)		459449Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.500 x 64 mm 6,000 mm 2,500 mm 64 mm
No stock item (MOQ)		459451Polystone® M UV-stabilized grey pressed sheet sheet dust grey, similar RAL 70374.000 x 2.000 x 64 mm 4,000 mm 2,000 mm 64 mm
No stock item (MOQ)		241405Polystone® M grey pressed sheet sheet iron grey, similar RAL 70112.000 x 1.000 x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		277474Polystone® M grey pressed sheet sheet iron grey, similar RAL 70116.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		338329Polystone® M grey pressed sheet sheet iron grey, similar RAL 70116.000 x 2.500 x 21 mm 6,000 mm 2,500 mm 21 mm
No stock item (MOQ)		369799Polystone® M grey pressed sheet sheet silver grey, similar RAL 70016.000 x 1.000 x 15 mm 6,000 mm 1,000 mm 15 mm
No stock item (MOQ)		402899Polystone® M grey pressed sheet sheet silver grey, similar RAL 70016.000 x 2.000 x 15 mm 6,000 mm 2,000 mm 15 mm
No stock item (MOQ)		403357Polystone® M grey pressed sheet sheet silver grey, similar RAL 70012.000 x 1.000 x 15 mm 2,000 mm 1,000 mm 15 mm
No stock item (MOQ)		410673Polystone® M grey pressed sheet sheet blue grey, similar RAL 70316.000 x 2.500 x 12 mm 6,000 mm 2,500 mm 12 mm
No stock item (MOQ)		433252Polystone® M grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.500 x 27 mm 6,000 mm 2,500 mm 27 mm
No stock item (MOQ)		437600Polystone® M grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.500 x 32 mm 6,000 mm 2,500 mm 32 mm
No stock item (MOQ)		455917Polystone® M grey pressed sheet sheet grey, similar RAL 70326.000 x 2.000 x 60 mm 6,000 mm 2,000 mm 60 mm
No stock item (MOQ)		461355Polystone® M grey pressed sheet sheet silver grey, similar RAL 70012.000 (-0/+5) x 1.000 (-0/+5) x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		461362Polystone® M grey pressed sheet sheet silver grey, similar RAL 70016.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		468360Polystone® M grey pressed sheet sheet anthracite grey, similar RAL 70162.000 (-0/+5) x 1.000 (-0/+5) x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		468362Polystone® M grey pressed sheet sheet signal grey, similar RAL 70042.000 (-0/+5) x 1.000 (-0/+5) x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		468688Polystone® M grey pressed sheet sheet signal grey, similar RAL 70046.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		468691Polystone® M grey pressed sheet sheet anthracite grey, similar RAL 70166.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		479220Polystone® M grey pressed sheet sheet dust grey, similar RAL 70373.000 (-0/+100) x 1.250 (+/-30) x 20 mm 3,000 mm 1,250 mm 20 mm
No stock item (MOQ)		479309Polystone® M grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.500 x 20 mm 6,000 mm 2,500 mm 20 mm

Technical Specifications Polystone® M grey extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Molecular weight-106 g/mol∼ 9
Test MethodUnitGuideline Value
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>650
Notched impact strengthDIN EN ISO 11542kJ / m2>100
Shore hardnessDIN EN ISO 868scale D>63
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-250 … 80
Service temperature, short term (max.)Average°C130
Vicat softening temperatureDIN EN ISO 306, Vicat B°C80
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,3
Dielectric dissipation factor (106 Hz)IEC 602500,0001
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2Ω>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
