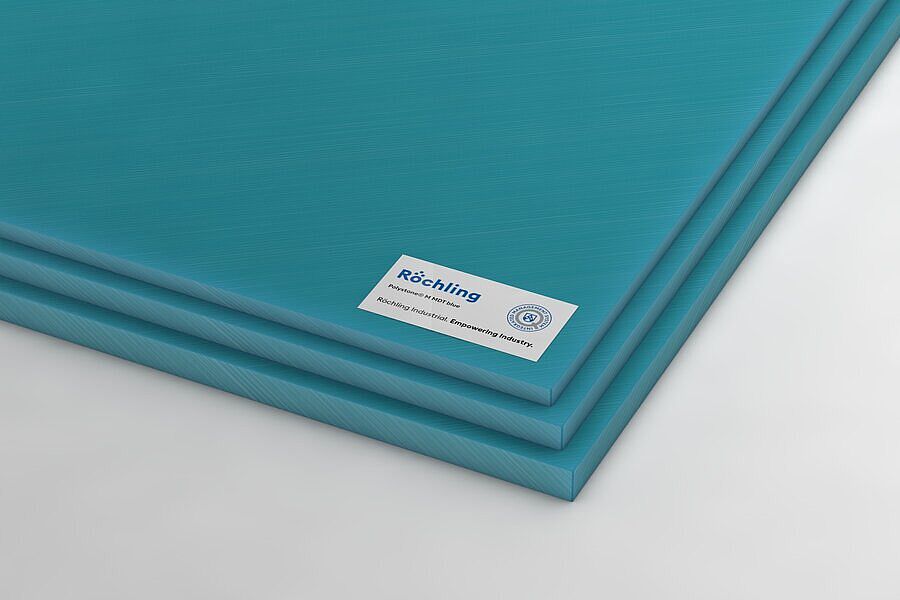

Polystone® M Microbloc blue
PE — PE-UHMW - PE 1000
Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.
sky blue, similar RAL 5015pastel blue, similar RAL 5024
sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 308935 | Polystone® M Microbloc blue pressed | sheet | sheet | sky blue, similar RAL 5015 | 2.000 x 1.000 x 25,4 mm | 2,000 mm | 1,000 mm | 25.4 mm | ||
| No stock item (MOQ) | 308936 | Polystone® M Microbloc blue pressed | sheet | sheet | sky blue, similar RAL 5015 | 2.000 x 1.000 x 19 mm | 2,000 mm | 1,000 mm | 19 mm | ||
| No stock item (MOQ) | 347966 | Polystone® M Microbloc blue pressed | sheet | sheet | pastel blue, similar RAL 5024 | 6.000 x 2.000 x 10 mm | 6,000 mm | 2,000 mm | 10 mm | ||
| No stock item (MOQ) | 347967 | Polystone® M Microbloc blue pressed | sheet | sheet | pastel blue, similar RAL 5024 | 6.000 x 2.000 x 25 mm | 6,000 mm | 2,000 mm | 25 mm | ||
| No stock item (MOQ) | 407042 | Polystone® M Microbloc blue pressed | sheet | sheet | sky blue, similar RAL 5015 | 6.000 x 2.000 x 19 mm | 6,000 mm | 2,000 mm | 19 mm | ||
| No stock item (MOQ) | 407043 | Polystone® M Microbloc blue pressed | sheet | sheet | sky blue, similar RAL 5015 | 6.000 x 2.000 x 26 mm | 6,000 mm | 2,000 mm | 26 mm | ||
| No stock item (MOQ) | 479487 | Polystone® M Microbloc blue pressed | sheet | sheet | pastel blue, similar RAL 5024 | 6.000 x 2.000 x 15 mm | 6,000 mm | 2,000 mm | 15 mm | ||
| No stock item (MOQ) | 479488 | Polystone® M Microbloc blue pressed | sheet | sheet | pastel blue, similar RAL 5024 | 6.000 x 2.000 x 20 mm | 6,000 mm | 2,000 mm | 20 mm | ||
| No stock item (MOQ) | 479493 | Polystone® M Microbloc blue pressed | sheet | sheet | pastel blue, similar RAL 5024 | 6.000 x 2.000 x 30 mm | 6,000 mm | 2,000 mm | 30 mm |
Technical Specifications Polystone® M Microbloc blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,93 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Molecular weight | - | 106 g/mol | ∼ 9 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >650 |
| Notched impact strength | DIN EN ISO 11542 | kJ / m2 | >100 |
| Shore hardness | DIN EN ISO 868 | scale D | >63 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -250 … 80 |
| Service temperature, short term (max.) | Average | °C | 130 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,3 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
