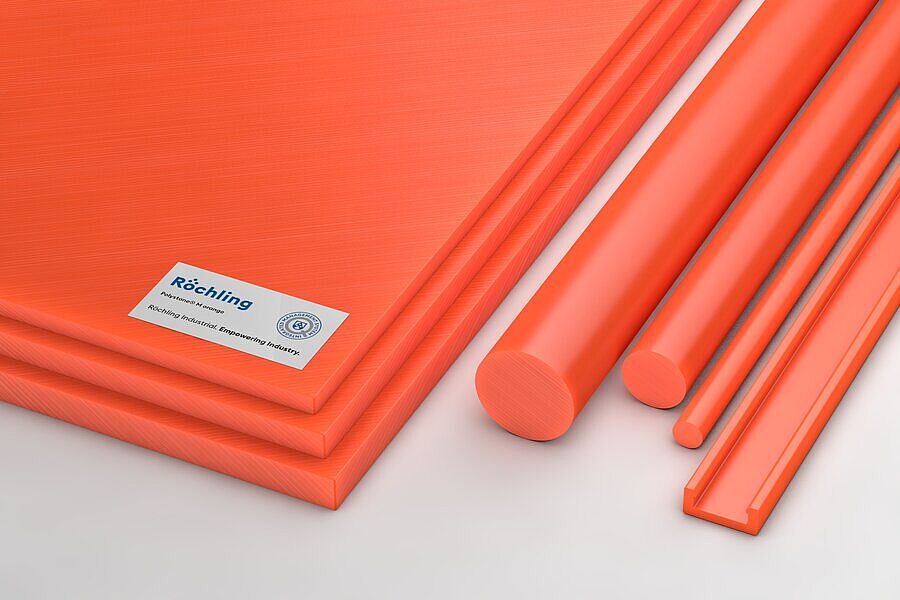

Polystone® M orange

PE — PE-UHMW - PE 1000

Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

traffic orange, similar RAL 2009pure orange, similar RAL 2004bright red orange, similar RAL 2008deep orange, similar RAL 2011
rodprofilesheet
QR-Code

Characteristics

  • Good mechanical properties
  • Low coefficient of friction
  • Good wear properties

Industries

Application Examples

+

Sliding sheets for the supply area

In the accessible supply area of a biogas facility - the push floor - Polystone® sliding sheets of ultra-high-molecular polyethylene are used. The Polystone® sliding sheets take up transport chains and are characterised by outstanding sliding and abrasion properties. They are also robust, acid-resistant and wear-proof.

+

Chain guide profile for chain guides

Their low slide friction coefficients enable extruded and milled profiles made of Polystone® M for chain guides to reduce the drive energy required in chain conveyors while at the same time improving process stability. Polystone® M also has permanent self-lubrication properties.

+

Fenders

Mounted on fender systems, sliding sheets made of our material Polystone® M protect quay bulkheads and ships during mooring and harbour manoeuvring and during idle periods. The ready-to-mount sheets are characterized by high abrasion and wear resistance and are resistant to corrosion, UV radiation and weathering.

+

Handrail profiles for boards

We offer extruded and milled handrail profiles made of Polystone® M to fit boards.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		247311Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 160 x 2.000 mm 2,000 mm 160 mm
No stock item (MOQ)		284554Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 140 x 3.000 (-0/+60) mm 3,000 mm 140 mm
No stock item (MOQ)		285782Polystone® M orange extruded Special profile Special profile (R385) pure orange, similar RAL 20042.000 x 50 x 52 mm 2,000 mm 50 mm 52 mm
No stock item (MOQ)		297203Polystone® M orange extruded rod rod bright red orange, similar RAL 2008Ø 65 x 2.000 mm 2,000 mm 65 mm
No stock item (MOQ)		335067Polystone® M orange extruded rod rod bright red orange, similar RAL 2008Ø 45 x 2.000 mm 2,000 mm 45 mm
No stock item (MOQ)		361538Polystone® M orange extruded rod rod bright red orange, similar RAL 2008Ø 100 x 2.000 mm 2,000 mm 100 mm
No stock item (MOQ)		386402Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 60 x 1.000 mm 1,000 mm 60 mm
No stock item (MOQ)		419648Polystone® M orange extruded Special profile Special profile (R555) pure orange, similar RAL 2004100.000 x 50 x 15 mm 100,000 mm 50 mm 15 mm
No stock item (MOQ)		443755Polystone® M orange extruded rod rod bright red orange, similar RAL 2008Ø 130 x 2.000 mm 2,000 mm 130 mm
No stock item (MOQ)		444196Polystone® M orange extruded rod rod bright red orange, similar RAL 2008Ø 40 x 2.000 mm 2,000 mm 40 mm
No stock item (MOQ)		447963Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 130 x 2.000 mm 2,000 mm 130 mm
No stock item (MOQ)		471013Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 40 x 2.000 mm 2,000 mm 40 mm
No stock item (MOQ)		471014Polystone® M orange extruded rod rod traffic orange, similar RAL 2009Ø 140 x 2.000 mm 2,000 mm 140 mm
No stock item (MOQ)		472697Polystone® M orange extruded rod rod pure orange, similar RAL 2004Ø 120 x 1.000 mm 1,000 mm 120 mm
No stock item (MOQ)		474998Polystone® M orange extruded Special profile Special profile (R232) pure orange, similar RAL 200450.000 x 15 x 4 mm 50,000 mm 15 mm 4 mm
No stock item (MOQ)		240571Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20092.000 x 1.000 x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		243766Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20092.000 x 1.000 x 20 mm 2,000 mm 1,000 mm 20 mm
No stock item (MOQ)		277440Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20096.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		277571Polystone® M orange pressed sheet sheet pure orange, similar RAL 20046.000 x 2.000 x 20 mm 6,000 mm 2,000 mm 20 mm
No stock item (MOQ)		418112Polystone® M orange pressed sheet sheet deep orange, similar RAL 20116.000 x 2.500 x 8 mm 6,000 mm 2,500 mm 8 mm
No stock item (MOQ)		448001Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20096.000 x 2.500 x 21 mm 6,000 mm 2,500 mm 21 mm
No stock item (MOQ)		463124Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20092.000 x 1.000 x 30 mm 2,000 mm 1,000 mm 30 mm
No stock item (MOQ)		463174Polystone® M orange pressed sheet sheet traffic orange, similar RAL 20096.000 x 2.000 x 30 mm 6,000 mm 2,000 mm 30 mm

Technical Specifications Polystone® M orange extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Molecular weight-106 g/mol∼ 9
Test MethodUnitGuideline Value
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>650
Notched impact strengthDIN EN ISO 11542kJ / m2>100
Shore hardnessDIN EN ISO 868scale D>63
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-250 … 80
Service temperature, short term (max.)Average°C130
Vicat softening temperatureDIN EN ISO 306, Vicat B°C80
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,3
Dielectric dissipation factor (106 Hz)IEC 602500,0001
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2Ω>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
