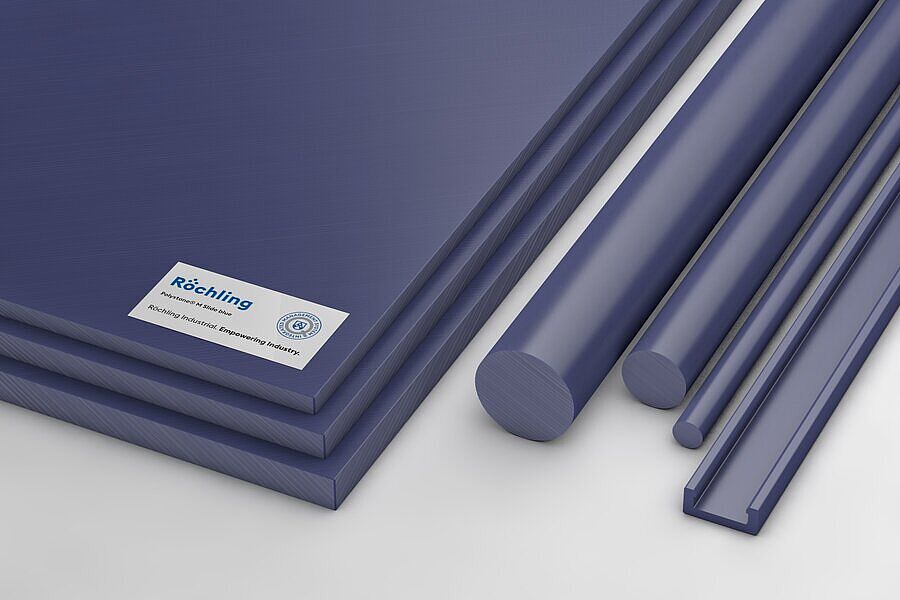

Polystone® M Slide blue

PE — PE-UHMW - PE 1000

Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

cobalt blue, similar RAL 5013
profile
QR-Code

Characteristics

  • Low coefficient of friction
  • Noise-reducing
  • Self-lubricating
  • UV-resistant
  • Good wear properties

Application Examples

Slide elements for lock gates

In locks steel gates weighing tonnes have to be moved quickly and reliably. Thanks to their excellent slide properties, special slide rails made of our material Polystone® M slide allow gates to be moved reliably with little use of energy. Slide rails made of Röchling materials are used in lock systems everywhere, from the Panama Canal to Venice.

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)
373949Polystone® M Slide blue extruded Clamp profile Clamp profile (R519) cobalt blue, similar RAL 501330.000 x 16 x 7 mm 30,000 mm 16 mm 7 mm
No stock item (MOQ)
409618Polystone® M Slide blue extruded U-profile U-profile (R191) cobalt blue, similar RAL 501350.000 x 15 x 11,4 mm 50,000 mm 15 mm 11.4 mm
No stock item (MOQ)
426638Polystone® M Slide blue extruded Clamp profile Clamp profile (R546) cobalt blue, similar RAL 501330.000 x 12,5 x 7 mm 30,000 mm 12.5 mm 7 mm

Technical Specifications Polystone® M Slide blue

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm3>0,95
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Molecular weight-106 g/mol 9
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa>20
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa>600
Notched impact strengthDIN EN ISO 11542kJ / m2>110
Shore hardnessDIN EN ISO 868scale D>60
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C130 ... 135
Thermal conductivityDIN 52612-1W / (m * K)0,40
Thermal capacityDIN 52612kJ / (kg * K)1,90
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230
Service temperature, long termAverage°C-250 … 80
Service temperature, short term (max.)Average°C130
Vicat softening temperatureDIN EN ISO 306, Vicat B°C79
Test MethodUnitGuideline Value
Dielectric constantIEC 602502,3
Dielectric dissipation factor (106 Hz)IEC 602500,0001
Volume resistivityDIN EN 62631-3-1Ω * cm>1014
Surface resistivityDIN EN 62631-3-2Ω>1014
Comparative tracking indexIEC 60112600
Dielectric strengthIEC 60243kV / mm>40
