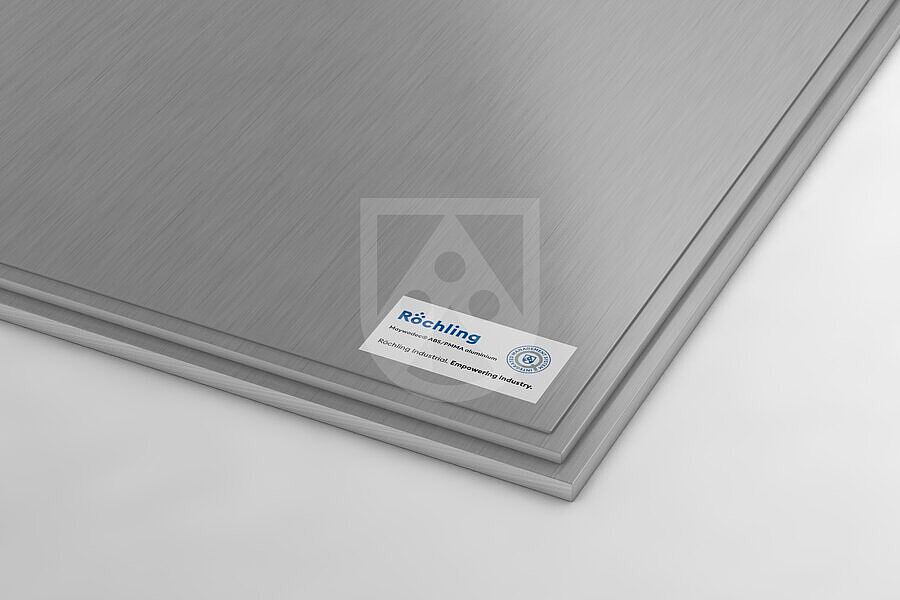

Maywodec® ABS/PMMA
ABS - PMMA
Maywodec® ABS/PMMA has a film lamination of deep-drawing quality with printed decorative film or trasparent PMMA film.
Characteristics
- UV-resistant
- Printed decorative foil or crystal-clear foil available
Application Examples
Technical Specifications Maywodec® ABS-PMMA
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,10 |
| Water absorption | DIN EN ISO 62 | % | 0,3 |
| Flammability (Thickness 1,5mm / 3 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 55 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2085 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 23 |
| Rockwell hardness | DIN EN ISO 2039-2 | scale R | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | >180°C |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,17 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 90 |
| Service temperature, long term | Average | °C | 85 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 102 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resisitivity | DIN EN 61340 | Ω | > 1012 |
| Volume resistivity | DIN EN 61340 | Ω | > 1012 |
