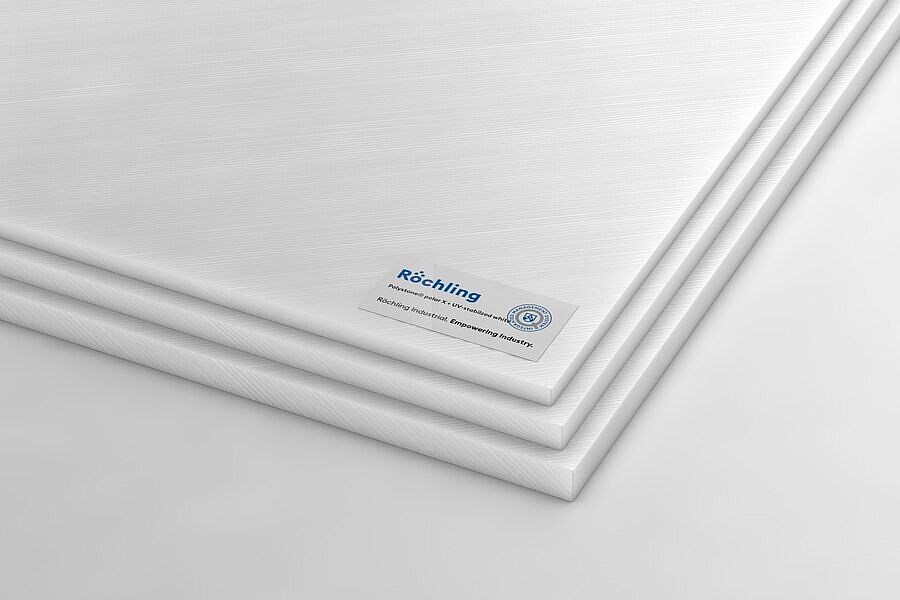

Polystone® polar X + UV-stabilzed white
PE — PE-HD - PE 500
white, similar RAL 9010
sheet
Characteristics
- High scratch resistance
- Good sliding properties
- UV-resistant
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 364537 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 15 mm | 6.000 mm | 2.000 mm | 15 mm | ||
| No stock item (MOQ) | 364754 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 18 mm | 6.000 mm | 2.000 mm | 18 mm | ||
| No stock item (MOQ) | 365519 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 3.000 (-0/+100) x 1.250 (+/-30) x 20 mm | 3.000 mm | 1.250 mm | 20 mm | ||
| No stock item (MOQ) | 365558 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.500 x 20 mm | 6.000 mm | 2.500 mm | 20 mm | ||
| No stock item (MOQ) | 377654 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 2.000 x 1.000 x 20 mm | 2.000 mm | 1.000 mm | 20 mm | ||
| No stock item (MOQ) | 377876 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 20 mm | 6.000 mm | 2.000 mm | 20 mm | ||
| No stock item (MOQ) | 401456 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 2000 x 1000 x 10 mm | 2.000 mm | 1.000 mm | 10 mm | ||
| No stock item (MOQ) | 401459 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 10 mm | 6.000 mm | 2.000 mm | 10 mm | ||
| No stock item (MOQ) | 403453 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.500 x 12 mm | 6.000 mm | 2.500 mm | 12 mm | ||
| No stock item (MOQ) | 411378 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 2000 x 1000 x 13 mm | 2.000 mm | 1.000 mm | 13 mm | ||
| No stock item (MOQ) | 411390 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 6.000 x 2.000 x 13 mm | 6.000 mm | 2.000 mm | 13 mm | ||
| No stock item (MOQ) | 443063 | Polystone® polar X + UV-stabilzed white pressed | sheet | sheet | white, similar RAL 9010 | 2.000 (-0/+10) x 1.000 (-0/+10) x 15 mm | 2.000 mm | 1.000 mm | 15 mm |
Technical Specifications Polystone® polar X + UV-stabilzed white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,95 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >27 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1200 |
| Shore hardness | DIN EN ISO 868 | scale D | 65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -100 ... 80 |
| Service temperature, short term (max.) | Average | °C | 80 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 79 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,3 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
