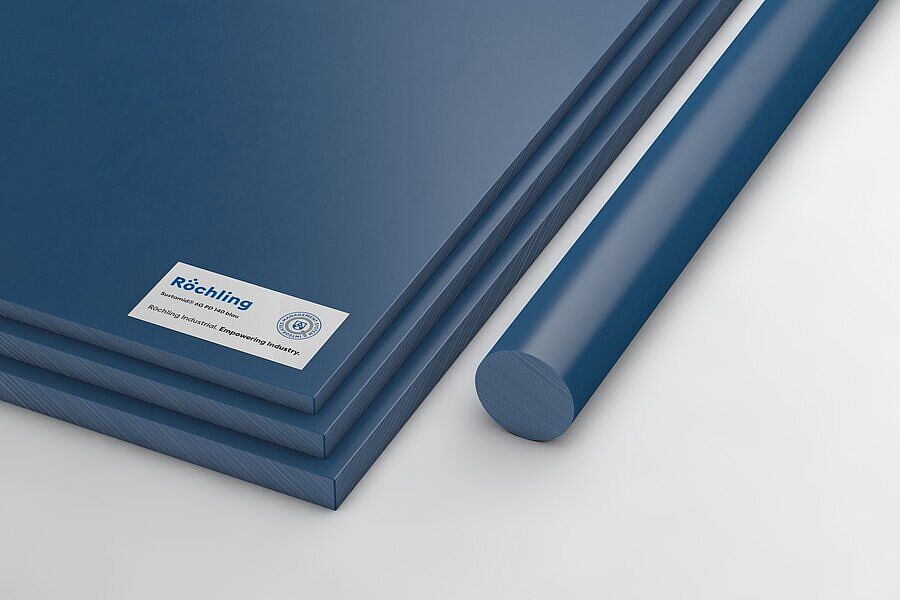

Sustamid® 6G PD 140 blue
PA — PA 6 G
gentian blue, similar RAL 5010
rod
Characteristics
- Break proof also at sub-zero temperatures
- Good sliding properties
- Good wear properties
- High absorption of moisture of up to 3 % in standard atmosphere
- Good impact strength
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 627379 | Sustamid® 6G PD 140 blue in-mould polymerised | rod | rod | gentian blue, similar RAL 5010 | Ø 600 x 1050 mm | 1.050 mm | 600 mm | |||
| No stock item (MOQ) | 627380 | Sustamid® 6G PD 140 blue in-mould polymerised | rod | rod | gentian blue, similar RAL 5010 | Ø 525 x 1050 mm | 1.050 mm | 525 mm | |||
| No stock item (MOQ) | 671725 | Sustamid® 6G PD 140 blue in-mould polymerised | rod | rod | gentian blue, similar RAL 5010 | Ø 1050 x 250 mm | 250 mm | 1.050 mm | |||
| No stock item (MOQ) | 922556 | Sustamid® 6G PD 140 blue in-mould polymerised | rod | rod | gentian blue, similar RAL 5010 | Ø 600 x 1100 mm | 1.100 mm | 600 mm |
Technical Specifications Sustamid® 6G PD 140 blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,14 |
| Water absorption | DIN EN ISO 62 | % | 2,4 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 70 |
| Elongation at break | DIN EN ISO 527 | % | 50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2900 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 210 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 80 |
| Service temperature, long term | Average | °C | -40 … 100 |
| Service temperature, short term (max.) | Average | °C | 160 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 90 |
