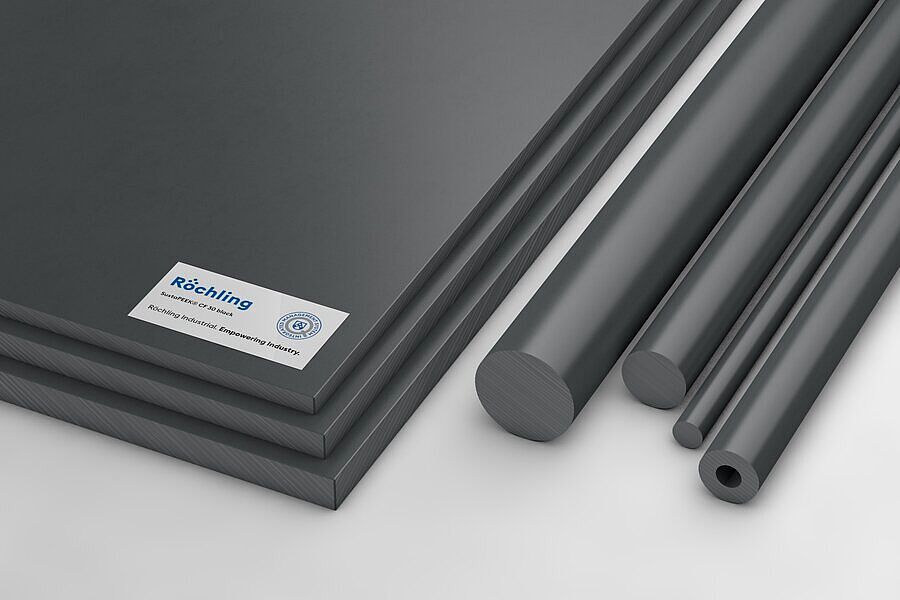

SustaPEEK CF 30 black
PEEK
PEEK with carbon fibre reinforcement
With SustaPEEK CF 30, Röchling provides pressed and extruded PEEK with 30 per cent carbon fibre reinforcement. This is suitable for applications where components have to continuously withstand high mechanical loads.
black
sheetrod
Characteristics
- Low coefficient of thermal expansion
- Electrically conductive
- High stiffness
- Good dimensional stability
Industries
Semiconductor Front-End applications- Semiconductor Wafer Handling
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 603333 | SustaPEEK CF 30 black extruded | sheet | sheet | black | 16 x 500 x 3000 mm | 3.000 mm | 500 mm | 16 mm | ||
| No stock item (MOQ) | 656228 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 70 x 1000 mm | 1.000 mm | 70 mm | |||
| No stock item (MOQ) | 661953 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 45 x 1000 mm | 1.000 mm | 45 mm | |||
| No stock item (MOQ) | 685699 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 28 x 1000 mm | 1.000 mm | 28 mm | |||
| No stock item (MOQ) | 805807 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 55 x 1000 mm | 1.000 mm | 55 mm | |||
| Stock item (no MOQ) | 924543 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 20 x 1000 mm | 1.000 mm | 20 mm | |||
| No stock item (no MOQ) | 924544 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 25 x 1000 mm | 1.000 mm | 25 mm | |||
| Stock item (no MOQ) | 924545 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 30 x 1000 mm | 1.000 mm | 30 mm | |||
| Stock item (no MOQ) | 924546 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 40 x 1000 mm | 1.000 mm | 40 mm | |||
| Stock item (no MOQ) | 924547 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 50 x 1000 mm | 1.000 mm | 50 mm | |||
| No stock item (MOQ) | 925060 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 18 x 1000 mm | 1.000 mm | 18 mm | |||
| No stock item (MOQ) | 926138 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 18 x 3000 mm | 3.000 mm | 18 mm | |||
| No stock item (MOQ) | 926325 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 15 x 1000 mm | 1.000 mm | 15 mm | |||
| Stock item (no MOQ) | 927142 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 60 x 1000 mm | 1.000 mm | 60 mm | |||
| Stock item (no MOQ) | 927174 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 80 x 1000 mm | 1.000 mm | 80 mm | |||
| No stock item (MOQ) | 928362 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 35 x 1000 mm | 1.000 mm | 35 mm | |||
| No stock item (MOQ) | 928744 | SustaPEEK CF 30 black extruded | rod | rod | black | Ø 75 x 1000 mm | 1.000 mm | 75 mm |
Technical Specifications SustaPEEK CF 30 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,40 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 120 |
| Elongation at break | DIN EN ISO 527 | % | 7 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 6500 |
| Shore hardness | DIN EN ISO 868 | scale D | 91 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 343 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,92 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 25 |
| Service temperature, long term | Average | °C | -20 … 250 |
| Service temperature, short term (max.) | Average | °C | 310 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 315 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 104 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 104 |
