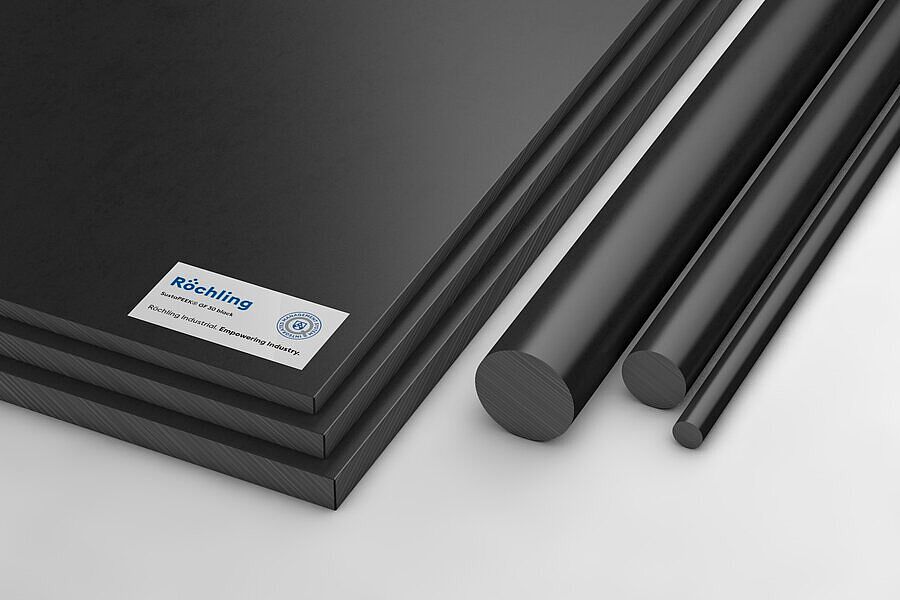

SustaPEEK GF 30 black
PEEK
black
rod
Characteristics
- High rigidity
- Good dimensional stability
- High continuous service temperature
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 931974 | SustaPEEK GF 30 black extruded | rod | rod | black | Ø 75 x 3000 mm | 3.000 mm | 75 mm | |||
| No stock item (MOQ) | 931975 | SustaPEEK GF 30 black extruded | rod | rod | black | Ø 75 x 1000 mm | 1.000 mm | 75 mm |
Technical Specifications SustaPEEK GF 30 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,49 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 80 |
| Elongation at break | DIN EN ISO 527 | % | 5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 6000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3,0 |
| Shore hardness | DIN EN ISO 868 | scale D | 89 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 343 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,43 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 30 |
| Service temperature, long term | Average | °C | -20 … 250 |
| Service temperature, short term (max.) | Average | °C | 310 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 315 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1013 |
| Comparative tracking index | IEC 60112 | 175 | |
| Dielectric strength | IEC 60243 | kV / mm | 20 |
