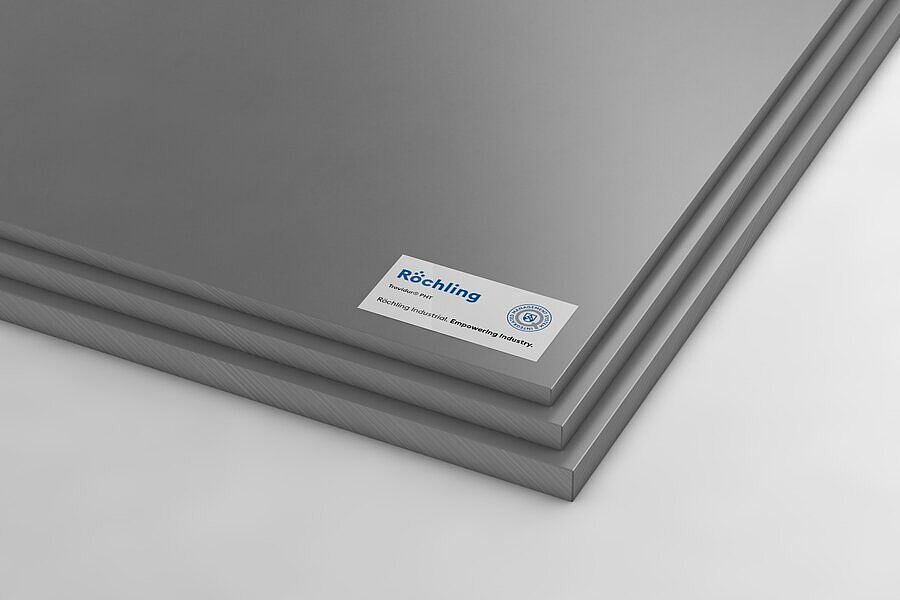

Trovidur® PHT
PVC-C
T-7037 grey
welding rodsheet
Characteristics
- Uniform physical properties
- Continous service temperature up to 90 °C
- Good resistance to acids, lyes and salt solutions
- Flame retardant
- Self-Extinguishing after removal of the flame
- Good weldability
- Good thermoformability
- Good glueability
- Good impact strength
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 101304 | Trovidur® PHT grey extruded | welding rod | welding rod | T-7037 grey | Ø 4 x 1.000 mm | 1 000 mm | 4 mm | |||
| Stock item (no MOQ) | 101305 | Trovidur® PHT grey extruded | welding rod | welding rod | T-7037 grey | Ø 3 x 1.000 mm | 1 000 mm | 3 mm | |||
| Stock item (no MOQ) | 100945 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 25 (+/-1,35) mm | 2 000 mm | 1 000 mm | 25 mm | ||
| Stock item (no MOQ) | 100946 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 15 (+/-0,85) mm | 2 000 mm | 1 000 mm | 15 mm | ||
| Stock item (no MOQ) | 100947 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 10 (+/-0,6) mm | 2 000 mm | 1 000 mm | 10 mm | ||
| Stock item (no MOQ) | 100948 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 5 (+/-0,35 ) mm | 2 000 mm | 1 000 mm | 5 mm | ||
| Stock item (no MOQ) | 100960 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 3 (+/-0,25) mm | 2 000 mm | 1 000 mm | 3 mm | ||
| Stock item (no MOQ) | 100961 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 4 (+/-0,3) mm | 2 000 mm | 1 000 mm | 4 mm | ||
| Stock item (no MOQ) | 100962 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 20 (+/-1,1) mm | 2 000 mm | 1 000 mm | 20 mm | ||
| Stock item (no MOQ) | 100972 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 30 (+/-1,6) mm | 2 000 mm | 1 000 mm | 30 mm | ||
| Stock item (no MOQ) | 100974 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 6 (+/-0,4) mm | 2 000 mm | 1 000 mm | 6 mm | ||
| Stock item (no MOQ) | 100979 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 8 (+/-0,5) mm | 2 000 mm | 1 000 mm | 8 mm | ||
| Stock item (no MOQ) | 100981 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 1.000 x 1.000 x 40 (+4/-0) mm | 1 000 mm | 1 000 mm | 40 mm | ||
| Stock item (no MOQ) | 100982 | Trovidur® PHT grey pressed | sheet | sheet | T-7037 grey | 2.000 x 1.000 x 12 (+/-0,7) mm | 2 000 mm | 1 000 mm | 12 mm |
Technical Specifications Trovidur® PHT
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,64 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 60 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 6 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,13 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 107 |
| Service Temperature | °C | -10 ... +90 | |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Glow wire ignition tempearture | DIN EN 60695-2-13 | °C | 990 |
| Glow wire flammability index | DIN EN 60695-2-12 | °C | 960 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
