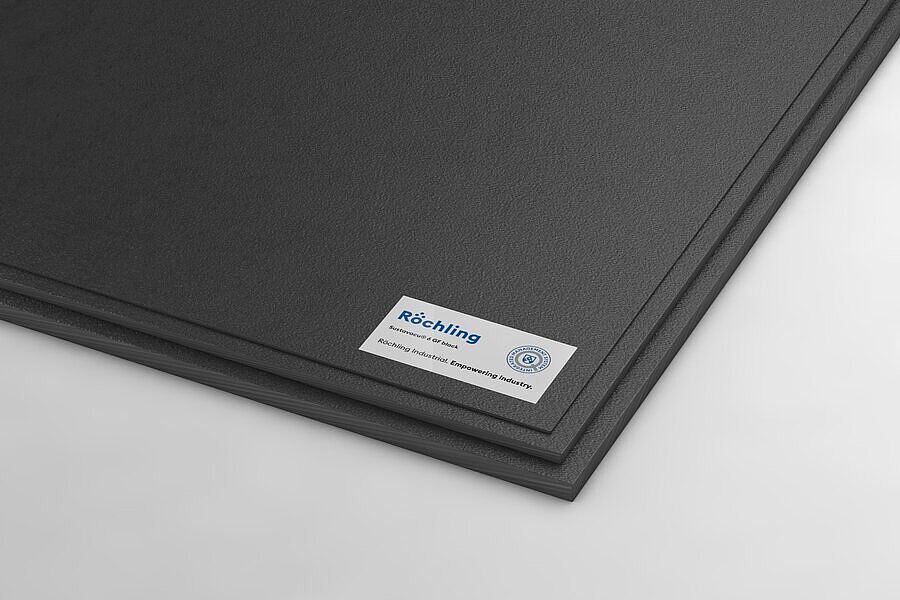

Sustavacu® 6 GF black
PA — PA 6
noir
plaque
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 102859 | Sustavacu® GF black calendered | plaque | plaque | noir | 3 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 3 mm | ||
| No stock item (MOQ) | 102860 | Sustavacu® GF black calendered | plaque | plaque | noir | 4 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 4 mm | ||
| No stock item (MOQ) | 102861 | Sustavacu® GF black calendered | plaque | plaque | noir | 5 x 1000 x 2000 mm | 2 000 mm | 1 000 mm | 5 mm | ||
| No stock item (MOQ) | 700180 | Sustavacu® GF black calendered | plaque | plaque | noir | 3 x 1000 x 1000 mm | 1 000 mm | 1 000 mm | 3 mm |
Technical Specifications Sustavacu® 6 GF black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,22 |
| Water absorption | DIN EN ISO 62 | % | 2,5 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 105 |
| Elongation at break | DIN EN ISO 527 | % | 3 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 5400 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 12 |
| Shore hardness | DIN EN ISO 868 | scale D | 83 |
| Shore hardness | DIN EN ISO 868 / 15 sec | scale D | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 220 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 70 |
| Service temperature, long term | Average | °C | -20...140 |
| Service temperature, short term (max.) | Average | °C | 180 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 190 |
