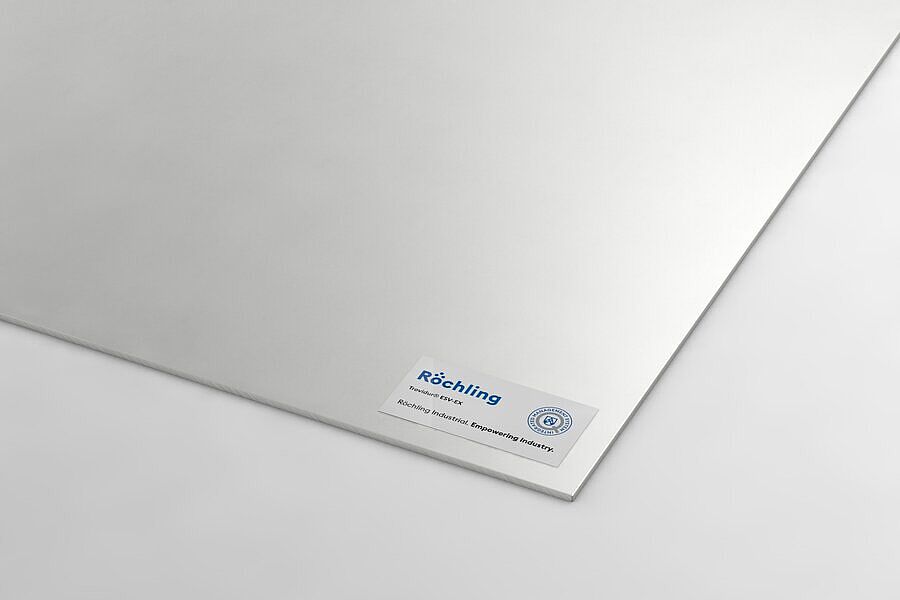

Trovidur® ESV-EX
PVC-U
T-G1626 blancT-1628 blanc
plaque
Characteristics
- High impact resistance
- UV-resistant
- Weatherability
- Good streching properties for thermoforming
- RoHS compliant
- ELV compliant
- WEEE compliant
- RLAP compliant
- High cold impact strength
- Good surface quality
- Flame retardant
- Self-Extinguishing after removal of the flame
- Good vacuum forming properties
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 206723 | Trovidur® ESV-EX white extruded | plaque | plaque | T-G1626 blanc | 2.185 x 975 x 3 mm | 2 185 mm | 975 mm | 3 mm | ||
| Stock item (no MOQ) | 256547 | Trovidur® ESV-EX white extruded | plaque | plaque | T-G1626 blanc | 2.198 x 975 x 3 mm | 2 198 mm | 975 mm | 3 mm | ||
| Stock item (no MOQ) | 272074 | Trovidur® ESV-EX white extruded | plaque | plaque | T-1628 blanc | 2.185 x 975 x 3 mm | 2 185 mm | 975 mm | 3 mm | ||
| Stock item (no MOQ) | 280778 | Trovidur® ESV-EX white extruded | plaque | plaque | T-G1626 blanc | 2.185 x 975 x 3 mm | 2 185 mm | 975 mm | 3 mm | ||
| Stock item (no MOQ) | 282649 | Trovidur® ESV-EX white extruded | plaque | plaque | T-1628 blanc | 2.185 x 975 x 3 mm | 2 185 mm | 975 mm | 3 mm | ||
| Stock item (no MOQ) | 289997 | Trovidur® ESV-EX white extruded | plaque | plaque | T-G1626 blanc | 2.190 x 990 x 3 mm | 2 190 mm | 990 mm | 3 mm | ||
| Stock item (no MOQ) | 301587 | Trovidur® ESV-EX white extruded | plaque | plaque | T-G1626 blanc | 2.200 x 980 x 2mm | 2 200 mm | 980 mm | 2 mm | ||
| Stock item (no MOQ) | 306304 | Trovidur® ESV-EX white extruded | plaque | plaque | T-1628 blanc | 2.190 x 990 x 3 mm | 2 190 mm | 990 mm | 3 mm | ||
| Stock item (no MOQ) | 385275 | Trovidur® ESV-EX white extruded | plaque | plaque | T-1628 blanc | 2.190 x 990 x 3 mm | 2 190 mm | 990 mm | 3 mm |
Technical Specifications Trovidur® ESV-EX
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Densité | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Flammability (Thickness 1,5 mm) | BS 476 Part 7 (GB) | Class 1 | |
| VOC | ISO 16.000 | conform | A+ |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 45 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Ball Hardness | ISO 2039 | MPa | 100 |
| Compressive strength | DIN EN ISO 604 | MPa | 65 |
| Bending strength | DIN EN ISO 178 | MPa | 60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 76 |
| Service Temperature | °C | -20 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 70 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
