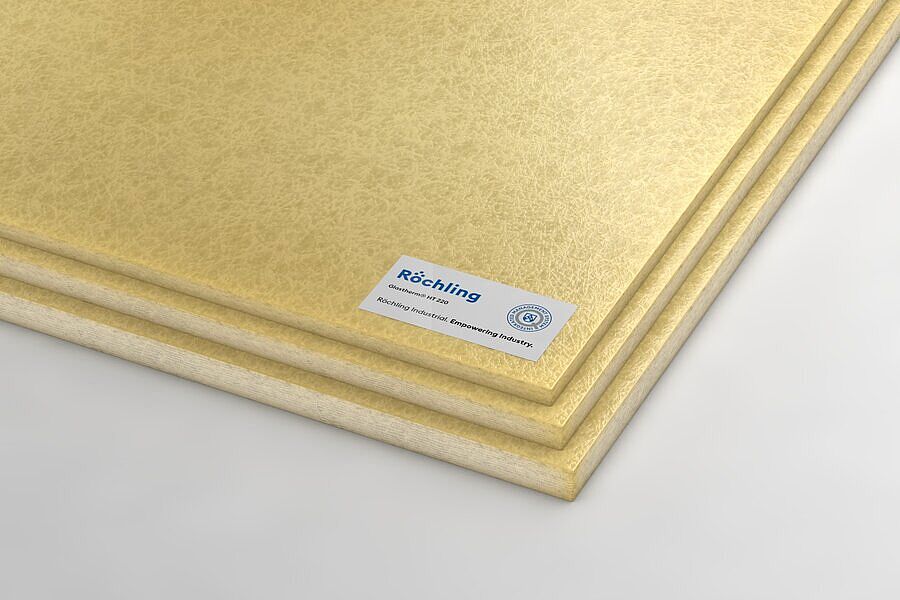

Glastherm® HT 220
GFK-EP
Glastherm® HT 220 is suitable for processes with a continuous operating temperature of up to 220 °C (428 °F) and combines a high level of heat insulation with a very high compressive strength in high temperatures. Glastherm® HT 220 is free of asbestos and can be easily cut and adapted with standard metal tools.
- Maximum continuous operation temperature: 220 °C (428 °F)
- Very high compressive strength: 360 MPa (at 200 °C)
- Good thermal insulation
sheet
Characteristics
- Fibre-reinforced composite material developed for applications in field of thermal insulation (max. continuous operating temperature 220°C)
- Low thermal conductivity
Industries
Variants
Technical Specifications Glastherm® HT 220
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 1,85 |
| Flexural strength ┴ | ISO 178 | MPa | 360 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 18000 |
| Compressive strength 1)┴ | ISO 604 | MPa | 500 |
| Compressive strength 1)┴ +200°C | ISO 604 | MPa | 360 |
| Tensile strength II | ISO 527 | MPa | 280 |
| Impact strength ┴ (Charpy) | ISO 179 | kJ / m2 | 150 |
| Splitting force II | DIN 53463 | N | 4000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity 2)┴ | W / (m * K) | ≈ 0,25 | |
| Coefficient of linear expansion II | TMA (Mettler) | 10-6 x K-1 | ≈ 10 - 15 |
| Max. continuous operating temperature | °C | 220 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (4mm thickness) | ISO 62 | % | 0,1 |
