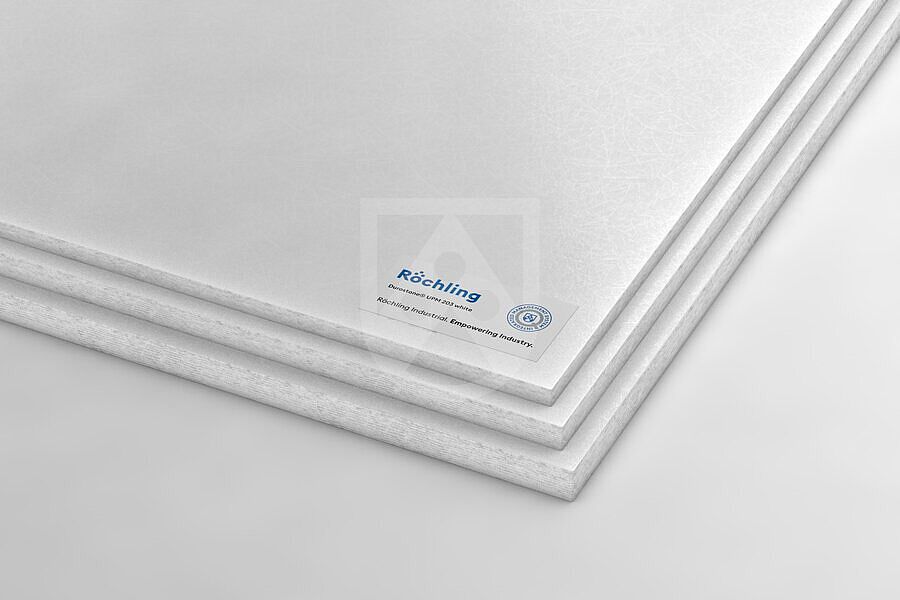

Durostone® UPM 203

GFK-UP

Durostone® UPM 203 은 기계 및 전기 제품용 섬유 강화 플라스틱입니다. 규정된 난연성(UL 등재)을 가지며 전기 아크 및 트래킹에 대하여 우수한 성능을 제공하는 플라스틱 소재입니다. 섬유 강화는 유리 매트(GRP)를 사용하여 수행됩니다.

silver grey, similar RAL 7001grey, similar RAL 7032light grey, similar RAL 7035agate grey, similar RAL 7038
All colors
sheet
QR-Code

Characteristics

  • Polyester (UP) resin matrix
  • Reinforced with an e-glass roving mat
  • UPGM 203 acc. to EN 60893

Technical Specifications Durostone® UPM 203

Test MethodUnitGuideline Value
DensityISO 1183g / cm31,85
Flexural strength ISO 178MPa130
Modulus of elasticity in flexion ISO 178MPa9000
Compressive strength ISO 604MPa250
Tensile strength IIISO 527MPa70
Impact strength II (Charpy)ISO 179kJ / m240
Test MethodUnitGuideline Value
FlammabilityUL 94/V0 / 3mm
Coefficient of linear expansion IITMA (Mettler)10-6 x K-115 - 30
Temperature indexIEC 60216T.I.155
Insulation classIEC 60085/F
Test MethodUnitGuideline Value
Water absorption (4mm thickness)ISO 62%0,2
Test MethodUnitGuideline Value
Electric strength 90°C under oil IEC 60243kV / mm12
Electric strength 90°C under oil IIIEC 60243kV/25mm75
Relative permittivity (50 Hz)IEC 60250εr4,5
Comparative tracking indexIEC 60112CTI600
Insulation resistance after 24 h water immersionIEC 60167Ω5 x 108
