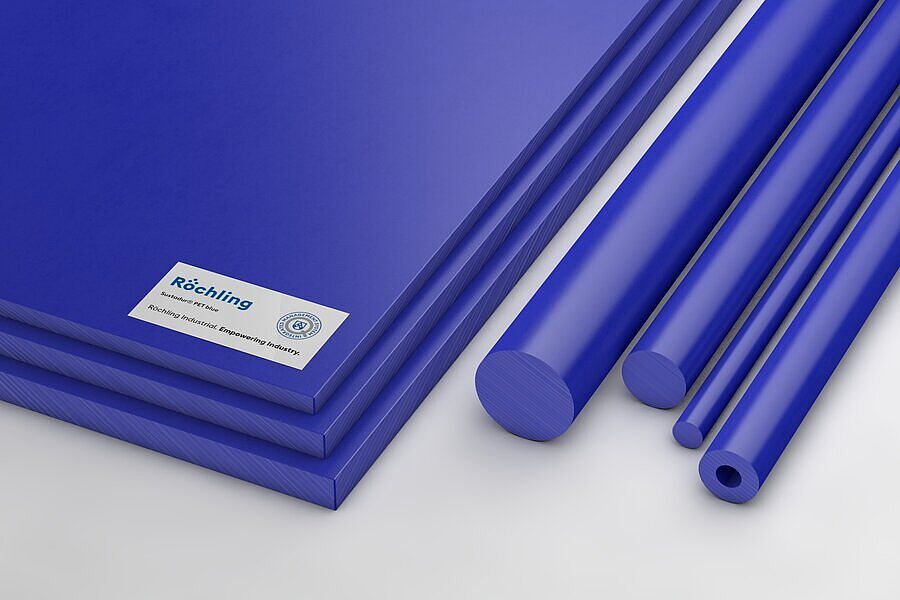

Sustadur® PET blue
PET
sky blue, similar RAL 5015gentian blue, similar RAL 5010
rod
Characteristics
- Low moisture absorption
- Good creep properties
- Good sliding properties
- High tensile strength
- High stiffness
- Good machinability
- Low coefficient of thermal expansion
- Good dimensional stability
- Good wear resistance
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 650907 | Sustadur® PET blue extruded | rod | rod | sky blue, similar RAL 5015 | Ø 180 x 1000 mm | 1,000 mm | 180 mm | |||
| No stock item (MOQ) | 730976 | Sustadur® PET blue extruded | rod | rod | gentian blue, similar RAL 5010 | Ø 180 x 2000 mm | 2,000 mm | 180 mm | |||
| No stock item (MOQ) | 804290 | Sustadur® PET blue extruded | rod | rod | gentian blue, similar RAL 5010 | Ø 180 x 3000 mm | 3,000 mm | 180 mm | |||
| No stock item (MOQ) | 804412 | Sustadur® PET blue extruded | rod | rod | gentian blue, similar RAL 5010 | Ø 110 x 3000 mm | 3,000 mm | 110 mm | |||
| No stock item (MOQ) | 806604 | Sustadur® PET blue extruded | rod | rod | gentian blue, similar RAL 5010 | Ø 180 x 1000 mm | 1,000 mm | 180 mm |
Technical Specifications Sustadur® PET blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,38 |
| Water absorption | DIN EN ISO 62 | % | 0,3 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 85 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 2 |
| Shore hardness | DIN EN ISO 868 | scale D | 84 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 248 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,28 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,10 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 60 |
| Service temperature, long term | Average | °C | -20 … 115 |
| Service temperature, short term (max.) | Average | °C | 180 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,4 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1018 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1016 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 20 |
