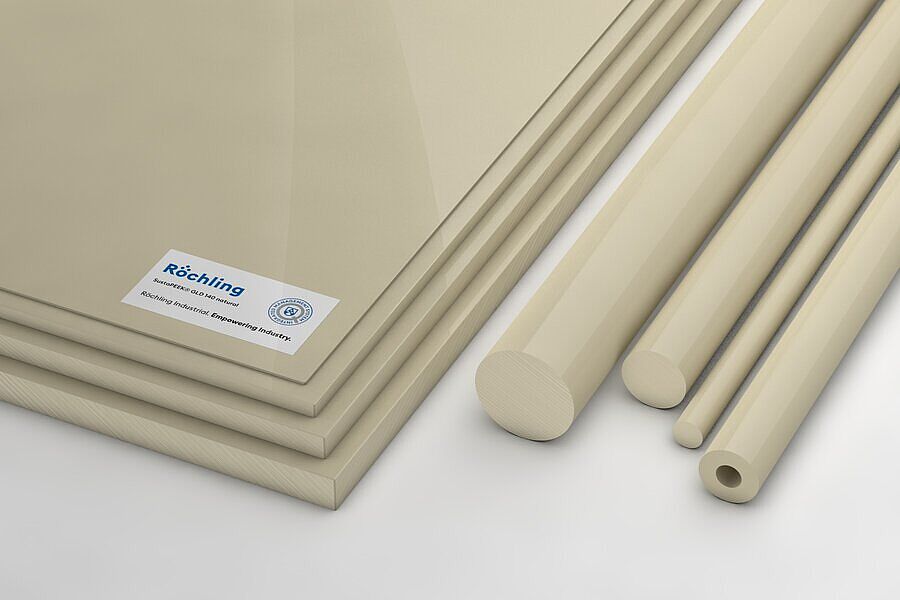

SustaPEEK GLD 140 FG natural
PEEK
natural
rodsheet
Characteristics
- 1935/2004/EC compliant
- Good sliding properties
- Good dimensional stability
Variants
Technical Specifications SustaPEEK GLD 140 FG natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,36 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 87 |
| Elongation at break | DIN EN ISO 527 | % | 3 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3700 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3,5 |
| Shore hardness | DIN EN ISO 868 | scale D | 86 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 343 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 55 |
| Service temperature, long term | Average | °C | -30 … 250 |
| Service temperature, short term (max.) | Average | °C | 310 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 150 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1016 |
| Dielectric strength | IEC 60243 | kV / mm | 20 |
