SustaPEEK MG natural

PEEK

Our premium material especially for medical devices

SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.

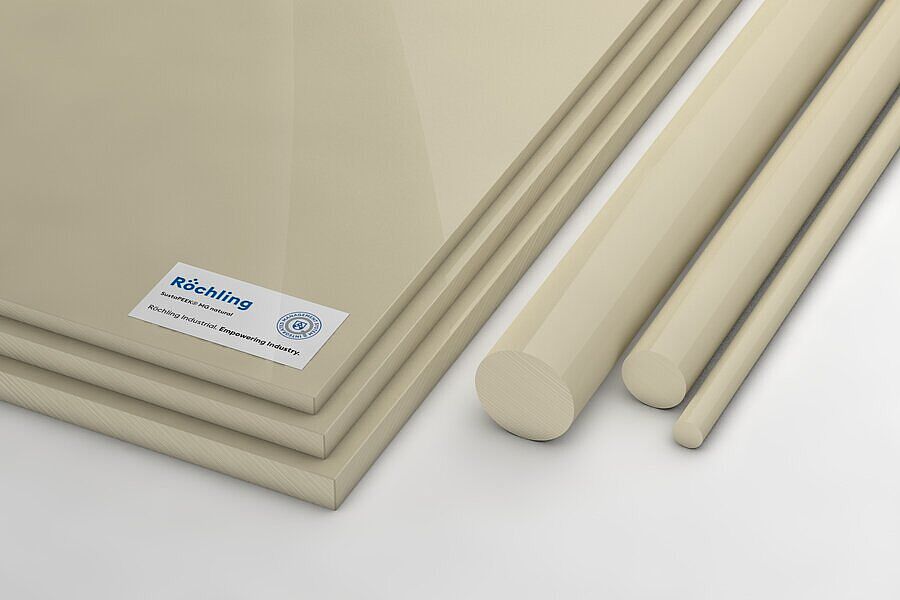

natural

sheetrod

Characteristics

High purity
Good sterilisation resistance
ISO 10993-5 tested on semi-finished product
High Strength
High rigidity
High-temperature stable up to 250°C in continuous operation
Chemical resistant

Industries

Healthcare

Application Examples

유방 생검술 장비

유방 생검 장치는 고객의 도면에 따라 엄격한 공차를 충족하도록 정밀 가공됩니다. 세척 및 멸균 절차가 우수할 뿐만 아니라 DIN EN ISO 10993-5에 따른 생체 적합성을 제공하며, SustaPEEK MG 소재로 제작된 조립 그룹으로 공급됩니다.

수술 기구용 핸들

도전 과제: 멸균 가능, 고품질 촉감 및 높은 표면 품질, 엄격한 허용 오차로 기계 가공 SustaPEEK^® MG는 다음과 같은 특별한 특성으로 인해 선택을 받았습니다. 제조 시 요구되는 우수한 안정성 충족(복잡한 부품 및 엄격한 허용 오차) 열 분산 우수한 열적 특성 우수한 내화학성

Handle of an ultrasonic probe

Handle of an ultrasonic probe machined from SustaPEEK MG.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Color	Measurements
No stock item (MOQ)	600688	SustaPEEK MG natural extruded	sheet	natural	10 x 620 x 1000 mm
No stock item (MOQ)	601306	SustaPEEK MG natural extruded	rod	natural	Ø 100 x 1000 mm
No stock item (MOQ)	601944	SustaPEEK MG natural extruded	sheet	natural	20 x 620 x 1000 mm
No stock item (MOQ)	605977	SustaPEEK MG natural extruded	rod	natural	Ø 55 x 1000 mm
No stock item (MOQ)	615247	SustaPEEK MG natural extruded	sheet	natural	5 x 620 x 1000 mm
No stock item (MOQ)	629918	SustaPEEK MG natural extruded	rod	natural	Ø 200 x 1000 mm
No stock item (MOQ)	650387	SustaPEEK MG natural extruded	rod	natural	Ø 36 x 2000 mm
No stock item (MOQ)	660888	SustaPEEK MG natural extruded	rod	natural	Ø 60 x 1000 mm
Stock item (no MOQ)	673721	SustaPEEK MG natural extruded	sheet	natural	8 x 620 x 3000 mm
No stock item (MOQ)	673723	SustaPEEK MG natural extruded	sheet	natural	8 x 620 x 1000 mm

Technical Specifications SustaPEEK MG natural

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,31
Water absorption	DIN EN ISO 62	%	0,2
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	110
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	4000
Shore hardness	DIN EN ISO 868	scale D	88

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	343
Thermal conductivity	DIN 52612-1	W / (m * K)	0,25
Thermal capacity	DIN 52612	kJ / (kg * K)	1,34
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	50
Service temperature, long term	Average	°C	-60 … 250
Service temperature, short term (max.)	Average	°C	310
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	152

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,2
Dielectric dissipation factor (50 Hz)	IEC 60250		0,001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	4,9 * 10¹⁶
Surface resistivity	DIN EN 62631-3-2	Ω	10¹⁸
Dielectric strength	IEC 60243	kV / mm	20
