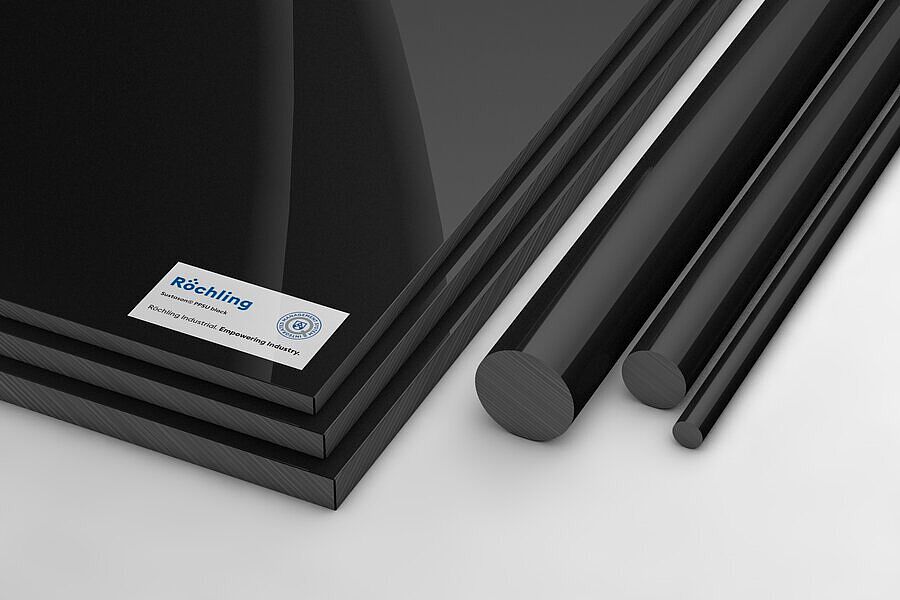

Sustason® PPSU black
PPSU
black
rodsheet
Characteristics
- High heat deflection temperature
- Low smoke development
- High tensile strength
- High creep rupture strength
- Good machinability
- good adhesive properties
- Good weldability
- High continuous service temperature
- Electrically insulating
- Good dielectric properties
- High stiffness
- Good thermoformability
- Good impact strength
- Good dimensional stability
Variants
Technical Specifications Sustason® PPSU black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,29 |
| Water absorption | DIN EN ISO 62 | % | 0,6 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 77 |
| Elongation at break | DIN EN ISO 527 | % | 30 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 10 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | - |
| Glass transition temperature | ISO 11357-3 | °C | 220 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,35 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 55 |
| Service temperature, long term | Average | °C | -50 … 180 |
| Service temperature, short term (max.) | Average | °C | 210 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 205 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,44 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1015 |
| Dielectric strength | IEC 60243 | kV / mm | 15 |
