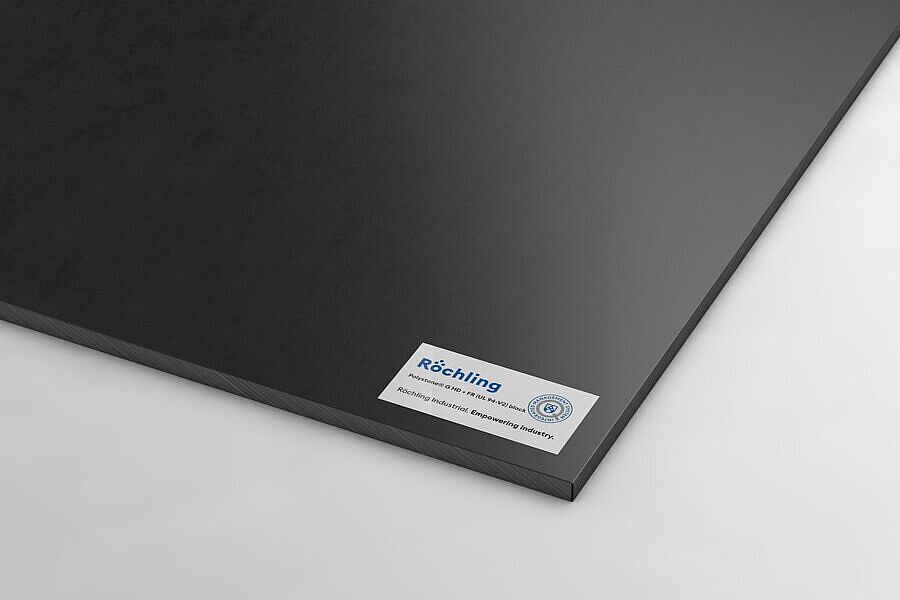

Polystone® G HD + FR (UL 94-V2) black
PE — PE-HD - PE 300
Polystone® G is a high density polyethylene (PE-HD/PE 300). It is an easily processed material for numerous applications, particularly in chemical equipment and container construction.
black, similar RAL 9005
sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 333776 | Polystone® G HD + FR (UL 94-V2) black extruded | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 8 mm | 2,000 mm | 1,000 mm | 8 mm | ||
| No stock item (MOQ) | 333777 | Polystone® G HD + FR (UL 94-V2) black extruded | sheet | sheet | black, similar RAL 9005 | 2.000 x 1.000 x 10 mm | 2,000 mm | 1,000 mm | 10 mm |
Technical Specifications Polystone® G HD + FR (UL 94-V2) black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >1,4 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1400 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >4 |
| Shore hardness | DIN EN ISO 868 | scale D | >65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -50 … 80 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 67 |
| Thermal conductivity | DIN EN ISO 22007-2 | W / (m * K) | 0,40 |
| Thermal capacity | DIN EN ISO 11357-4 | kJ / (kg * K) | 1,90 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1014 |
