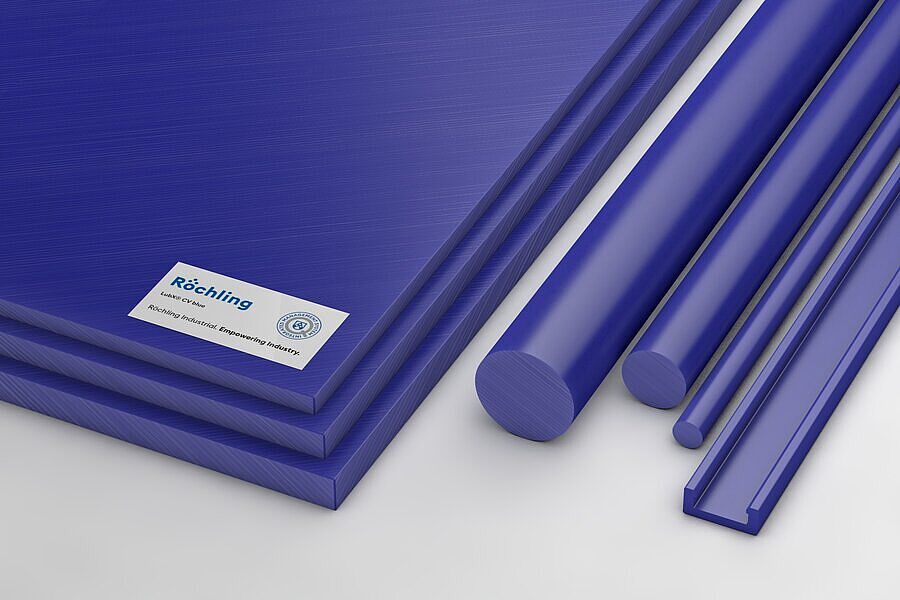

LubX® CV blue
PE — PE-UHMW - PE 1000
LubX® CV is a sliding material especially for systems and machinery used in conveyor technology and automation. The material was developed for systems intended to be operated at higher velocities and pressure loads, meaning increased productivity. Scientific research shows: The material significantly improves system performance and efficiency. Even when used for high-load applications, it retains its excellent sliding characteristics and high wear resistance.
LubX® CV has:
- exceptionally good sliding properties
- at the same time exhibits a very low temperature development
- Both results in lower wear and a longer lifespan of the entire system.
ultramarine blue, similar RAL 5002cobalt blue, similar RAL 5013pigeon blue, similar RAL 5014
sheetsample
Characteristics
- Good sliding properties even at higher load
- Good dry-running properties
- 10/2011/EU compliant
- Good machinability
- GMP 2023/2006 EC compliant
Application Examples
Variants
Technical Specifications LubX® CV blue extruded
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 0,94 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Non-toxicity | + |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 19 |
| Elongation at break | DIN EN ISO 527 | % | >250 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | no break |
| Shore hardness | DIN EN ISO 868 | scale D | 60 |
| Sliding properties: partner POM (0,5 m/s - 0,5 MPa) | REP – Tribology – Test | 0,13 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 133 – 135 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 - 230 (*) |
| Service temperature, long term | Average | °C | -150 … 80 (*) |
| Service temperature, short term (max.) | Average | °C | 130 (*) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
