Polystone® M AST black

PE — PE-UHMW - PE 1000

A Polystone^® M material with a permanent antistatic action. The electrostatic surface charge is reduced, dust is not attracted and no electrostatic discharge occurs.

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

black, similar RAL 9005black, similar RAL 9004

profilerodsheet

Characteristics

Antistatic
Good wear resistance
Good impact strength

Industries

Application Examples

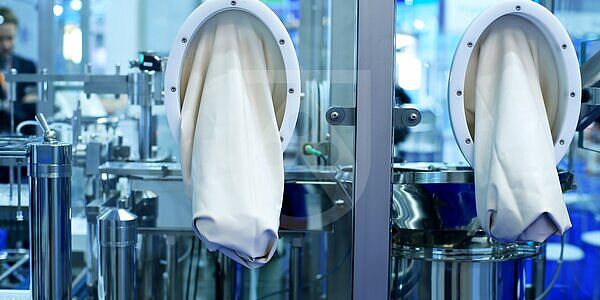

정제 제조용 ESD 및 정전기 방지 제품

도전 과제: 고객은 분말로 약제를 제조할 때 필요한 정전기 방지 소재를 요구함 사용 소재: 글로브 포트용으로 Polystone^® G EL 사용, 슈트와 튜브용으로 Polystone^® M AST 사용, 매니폴드용으로 Sustarin^® C ESD 사용, 씰과 신축성 연결부용으로 Fibracon^® PTFE AS 사용 분말의 이동에 의해 생성되는 정전기 축적을 없애는 ESD 및 AS 소재 광범위한 온도 및 세정제에 강한 소재

Variants

Show product in Webshop

	SKU	Name	Type	Color	Measurements
No stock item (MOQ)	101435	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 45 mm
No stock item (MOQ)	211691	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.250 x 15 (+0,6/+1) mm
Stock item (no MOQ)	212610	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 10 mm
Stock item (no MOQ)	212611	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 15 mm
Stock item (no MOQ)	212612	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 20 mm
Stock item (no MOQ)	212613	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 25 mm
No stock item (MOQ)	212614	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 35 mm
No stock item (no MOQ)	212615	Polystone® M AST black pressed	sheet	black, similar RAL 9005	3.000 (-0/+100) x 1.250 (+/-30) x 10 mm
No stock item (MOQ)	212617	Polystone® M AST black extruded	Clip profile (R090)	black, similar RAL 9005	2.020 x 32 x 12,8 mm
No stock item (MOQ)	218423	Polystone® M AST black pressed	sheet	black, similar RAL 9005	2.000 x 1.000 x 8 mm

Technical Specifications Polystone® M AST black extruded

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,94
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>700
Notched impact strength	DIN EN ISO 11542	kJ / m²	>50
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-150 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

Electrical properties

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	≤10⁹
Surface resistivity	DIN EN 62631-3-2	Ω	≤10⁹

Technical Specifications Polystone® M AST black pressed

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,94
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>700
Notched impact strength	DIN EN ISO 11542	kJ / m²	>50
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-150 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

Electrical properties

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	≤10⁹
Surface resistivity	DIN EN 62631-3-2	Ω	≤10⁹
