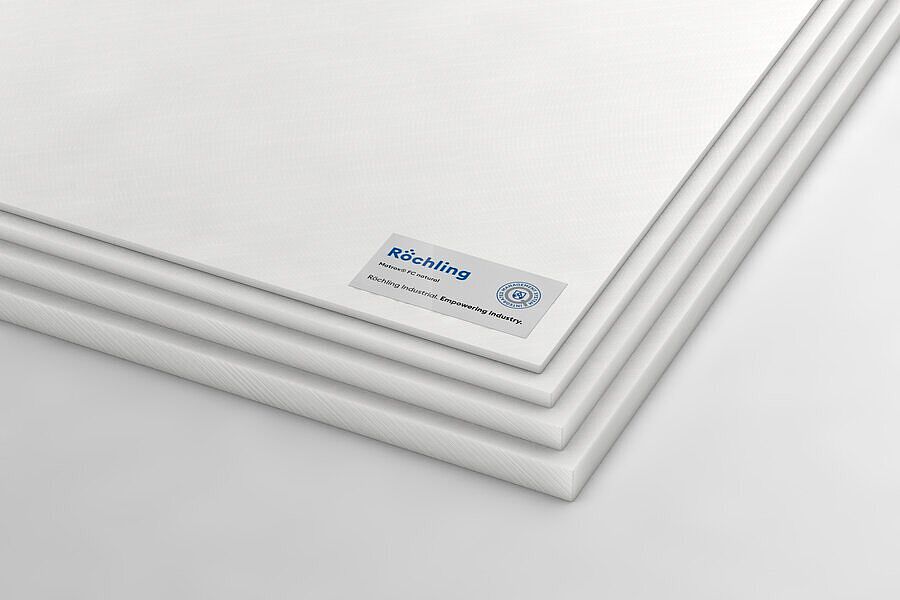

Polystone® M PIR natural
PE — PE-UHMW - PE 1000
Polystone® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.
natural
sheet
Characteristics
- Low coefficient of friction
- Good wear properties
- Good impact strength
- Good mechanical properties
Industries
Sustainability-
Post-Industrial-Recycling material
Post-Industrial-Recycling material
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 494014 | Polystone® M PIR natural pressed | sheet | sheet | natural | 2.000 x 1.000 x 15 mm | 2,000 mm | 1,000 mm | 15 mm |
Technical Specifications Polystone® M PIR natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,93 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >17 |
| Elongation at yield stress | DIN EN ISO 527 | % | >18 |
| Elongation at break | DIN EN ISO 527 | % | >235 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >550 |
| Notched impact strength | DIN EN ISO 11542 | kJ / m2 | >100 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -250 ... 80 |
| Service temperature, short term (max.) | Average | °C | 130 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
