Trovidur® EC-FR

PVC-U

Your partner for PVC-U sheets ‘Made in Germany’

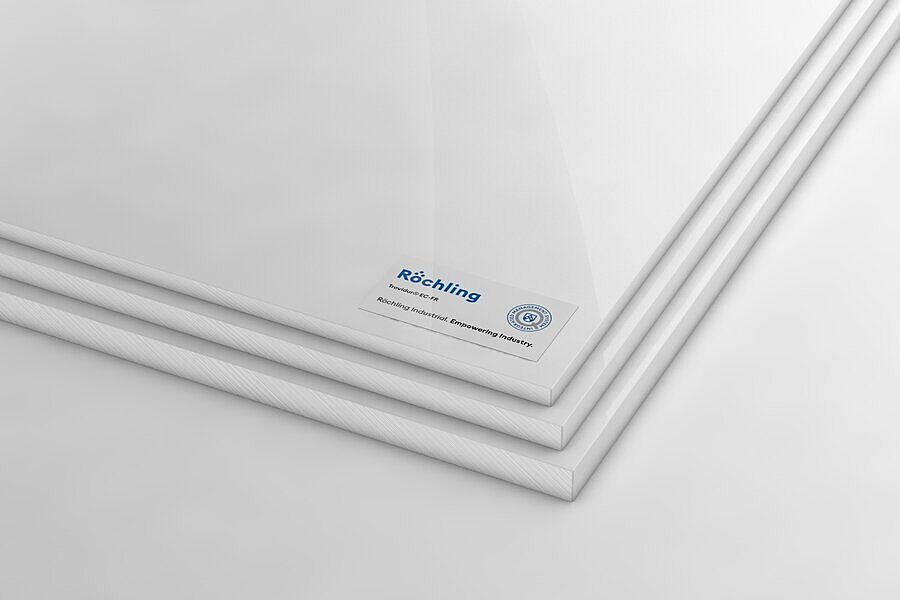

Trovidur® EC-FR White is tested in accordance with the specifications of FM 4910: “FM Approvals specification tested”. The PVC-U material meets the highest fire specifications in accordance with FM 4910 - perfect for safe and sustainable use in semiconductor and cleanroom technology applications. The material properties support employee safety, reduce contamination and help to reduce plant downtime.

T-FR1130 whiteT-1013 ivory

sheet

Characteristics

Clean Room Material

Industries

Clean-Room Technology
Semiconductor Industry
Semiconductor factory equipment
Semiconductor Front-End applications
Semiconductor Front-End Wet Bench

Application Examples

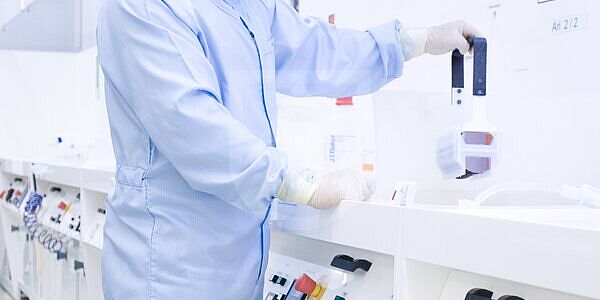

클린룸 기술 인증을 받은 Trovidur® EC-FR – FM 4910 (PVC-U)을 사용한 습식 벤치

Trovidur^® EC-FR 시트는 FM4910 승인을 받았으며, 이는 종종 반도체 산업에서 사용되는 부품을 위한 건축 자재의 전제 조건입니다. FM4910 승인은 Trovidur^® EC-FR의 난연 특성을 입증합니다. 동시에 이 소재는 매우 높은 수준의 내화학성을 제공하며 이는 "습식 벤치" 시공의 전제 조건입니다.

We are proud to offer Trovidur® EC-FR, a PVC-U sheet, an FM4910 listed product from Germany for the promising semiconductor industry worldwide.
Christoph Zell - Product Manager Trovidur - E-Mail: czell@roechling.com

Did you know that...

our Trovidur® EC-FR material is perfect for: Semiconductor industry, Machine enclosure, Wall panelling, Cleanroom panelling or Ventilation construction.

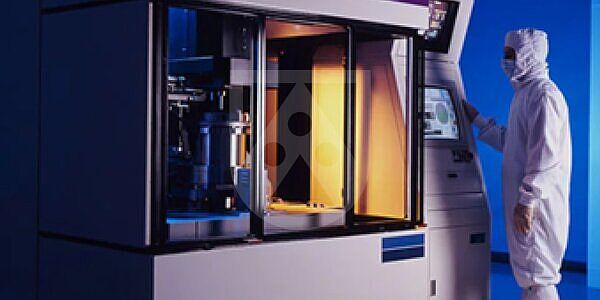

Perfect for Cleanroom technology

With its fire behavior and low smoke development, Trovidur® EC-FR White FR1130 is suitable for use in clean rooms.

Variants

Show product in Webshop

	SKU	Name	Type	Color	Measurements
Stock item (no MOQ)	458134	Trovidur® EC-FR SD beige extruded	welding rod	T-1013 ivory	Ø 4 mm
No stock item (MOQ)	458913	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 10 mm
No stock item (MOQ)	458914	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 12 mm
No stock item (MOQ)	458915	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 15 mm
No stock item (MOQ)	458916	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 20 mm
No stock item (MOQ)	460736	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 8 mm
No stock item (MOQ)	467602	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	1500 x 1.500 x 10 mm
No stock item (MOQ)	469589	Trovidur® EC-FR beige extruded	sheet	T-1013 ivory	3.000 x 1.500 x 6 mm
No stock item (MOQ)	469745	Trovidur® EC-FR SD white extruded	welding rod	T-FR1130 white	6,1 x 3,1 mm
No stock item (MOQ)	469747	Trovidur® EC-FR SD white extruded	welding rod	T-FR1130 white	Ø 3 mm

Technical Specifications Trovidur® EC-FR

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	∼1,46
Water absorption	DIN EN ISO 62	%	0,2
Cleanroom Materials Flammability Test Protocol (Thickness 6...40 mm)	FM 4910		listed

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	50
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3000
Notched impact strength	DIN EN ISO 179	kJ / m²	4
Shore hardness	DIN EN ISO 868	scale D	82
Ball indentation hardness	DIN EN ISO 2039-1	MPa	115
Compressive strength	DIN EN ISO 604	MPa	75
Bending strength	DIN EN ISO 178	MPa	80

Thermal properties

	Test Method	Unit	Guideline Value
Thermal conductivity	DIN EN ISO 8302	W / (m * K)	0,16
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	75
Service Temperature		°C	-15 ... +60
Heat deflection temperature	DIN EN ISO 75	°C	70
Coefficient of linear thermal expansion	DIN EN ISO 11359-2	mm/m K	∼0,075
Glow wire ignition tempearture	DIN EN 60695-2-13	°C	990
Glow wire flammability index	DIN EN 60695-2-12	°C	960

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		∼3,2
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		∼0,02
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁵
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹³
Dielectric strength	IEC 60243	kV / mm	12
Comparative tracking index	IEC 60112	CTI	600
