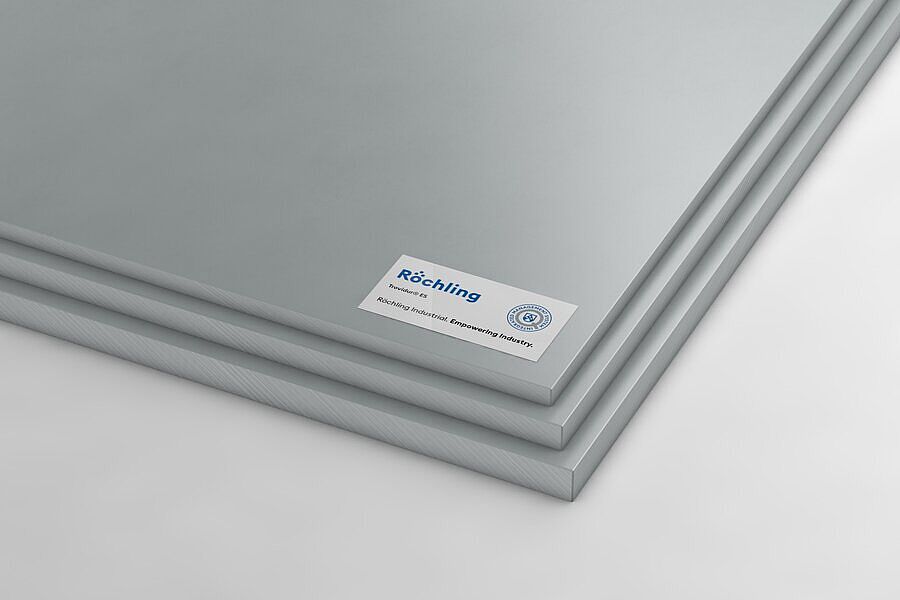

Trovidur® ES grey
PVC-U
T-6705 grey
sheet
Characteristics
- High impact resistance
- Flame retardant
- Self-Extinguishing after removal of the flame
- Good weldability
- Good thermoformability
- Good glueability
- Glossy surface
- Both sides smooth Surface
- RoHS compliant
- ELV compliant
- WEEE compliant
- RLAP compliant
- Vacuum formable
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100693 | Trovidur® ES grey extruded | sheet | sheet | T-6705 grey | 2.000 x 1.000 x 2 mm | 2 000 mm | 1 000 mm | 2 mm | ||
| Stock item (no MOQ) | 100694 | Trovidur® ES grey extruded | sheet | sheet | T-6705 grey | 2.000 x 1.000 x 3 mm | 2 000 mm | 1 000 mm | 3 mm | ||
| Stock item (no MOQ) | 100700 | Trovidur® ES grey extruded | sheet | sheet | T-6705 grey | 3.000 x 1.500 x 2 mm | 3 000 mm | 1 500 mm | 2 mm | ||
| Stock item (no MOQ) | 100701 | Trovidur® ES grey extruded | sheet | sheet | T-6705 grey | 3.000 x 1.500 x 3 mm | 3 000 mm | 1 500 mm | 3 mm |
Technical Specifications Trovidur® ES grey
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Flammability (Thickness 1 ... 2 mm) | DIN 4102 | B1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 48 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 100 |
| Compressive strength | DIN EN ISO 604 | MPa | 65 |
| Bending strength | DIN EN ISO 178 | MPa | 65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN EN ISO 8302 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | -20 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 70 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
| Dielectric strength | IEC 60243 | kV / mm | 12 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
