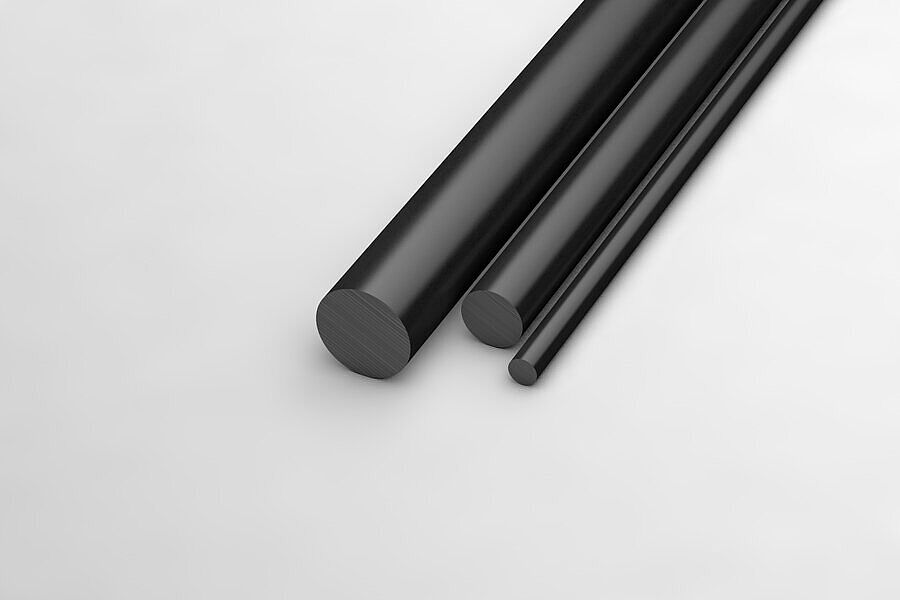

Trovidur® PVC-U black

PVC-U

black
rod
QR-Code

Characteristics

  • Flame retardant
  • Self-Extinguishing after removal of the flame
  • High rigidity
  • Electrically insulating
  • Good resistance to acids, lyes and salt solutions
  • Good weldability
  • Good thermoformability
  • Good glueability
  • Good printability
  • Chemical resistant

Industries

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		609082Trovidur® PVC-U black extruded rod rod blackØ 65 x 2000 mm 2 000 mm 65 mm
No stock item (MOQ)		671767Trovidur® PVC-U black extruded rod rod blackØ 8 x 2000 mm 2 000 mm 8 mm
No stock item (MOQ)		708329Trovidur® PVC-U black extruded rod rod blackØ 6 x 2000 mm 2 000 mm 6 mm
No stock item (MOQ)		719536Trovidur® PVC-U black extruded rod rod blackØ 150 x 2000 mm 2 000 mm 150 mm
No stock item (MOQ)		747145Trovidur® PVC-U black extruded rod rod blackØ 120 x 2000 mm 2 000 mm 120 mm
No stock item (MOQ)		806271Trovidur® PVC-U black extruded rod rod blackØ 70 x 2000 mm 2 000 mm 70 mm
No stock item (MOQ)		806273Trovidur® PVC-U black extruded rod rod blackØ 80 x 2000 mm 2 000 mm 80 mm
No stock item (MOQ)		806306Trovidur® PVC-U black extruded rod rod blackØ 12 x 2000 mm 2 000 mm 12 mm
No stock item (MOQ)		806307Trovidur® PVC-U black extruded rod rod blackØ 20 x 2000 mm 2 000 mm 20 mm
No stock item (MOQ)		806308Trovidur® PVC-U black extruded rod rod blackØ 40 x 2000 mm 2 000 mm 40 mm
No stock item (MOQ)		806897Trovidur® PVC-U black extruded rod rod blackØ 30 x 2000 mm 2 000 mm 30 mm
No stock item (MOQ)		806898Trovidur® PVC-U black extruded rod rod blackØ 50 x 2000 mm 2 000 mm 50 mm
No stock item (MOQ)		806899Trovidur® PVC-U black extruded rod rod blackØ 60 x 2000 mm 2 000 mm 60 mm
No stock item (MOQ)		806900Trovidur® PVC-U black extruded rod rod blackØ 100 x 2000 mm 2 000 mm 100 mm
No stock item (MOQ)		808005Trovidur® PVC-U black extruded rod rod blackØ 25 x 2000 mm 2 000 mm 25 mm
No stock item (MOQ)		808011Trovidur® PVC-U black extruded rod rod blackØ 90 x 2000 mm 2 000 mm 90 mm
No stock item (MOQ)		808144Trovidur® PVC-U black extruded rod rod blackØ 110 x 2000 mm 2 000 mm 110 mm
No stock item (MOQ)		808546Trovidur® PVC-U black extruded rod rod blackØ 10 x 2000 mm 2 000 mm 10 mm
No stock item (MOQ)		808547Trovidur® PVC-U black extruded rod rod blackØ 15 x 2000 mm 2 000 mm 15 mm
No stock item (MOQ)		809221Trovidur® PVC-U black extruded rod rod blackØ 45 x 2000 mm 2 000 mm 45 mm
No stock item (MOQ)		809542Trovidur® PVC-U black extruded rod rod blackØ 130 x 2000 mm 2 000 mm 130 mm
No stock item (MOQ)		809694Trovidur® PVC-U black extruded rod rod blackØ 180 x 2000 mm 2 000 mm 180 mm

Technical Specifications Trovidur® PVC-U black

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,45
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa45
Elongation at breakDIN EN ISO 527%15
Tensile modulus of elasticityDIN EN ISO 527MPa3000
Notched impact strengthDIN EN ISO 179kJ / m22
Shore hardnessDIN EN ISO 868scale D79
Test MethodUnitGuideline Value
Thermal conductivityDIN 52612-1W / (m * K)0,2
Coefficient of linear thermal expansionDIN 5375210-6 / K80
Service temperature, long termAverage°C0 … 60
Service temperature, short term (max.)Average°C70
Test MethodUnitGuideline Value
Dielectric constantIEC 602503
Dielectric dissipation factor (106 Hz)IEC 602500,02
Volume resistivityDIN EN 62631-3-1Ω * cm1015
Surface resistivityDIN EN 62631-3-2Ω1013
