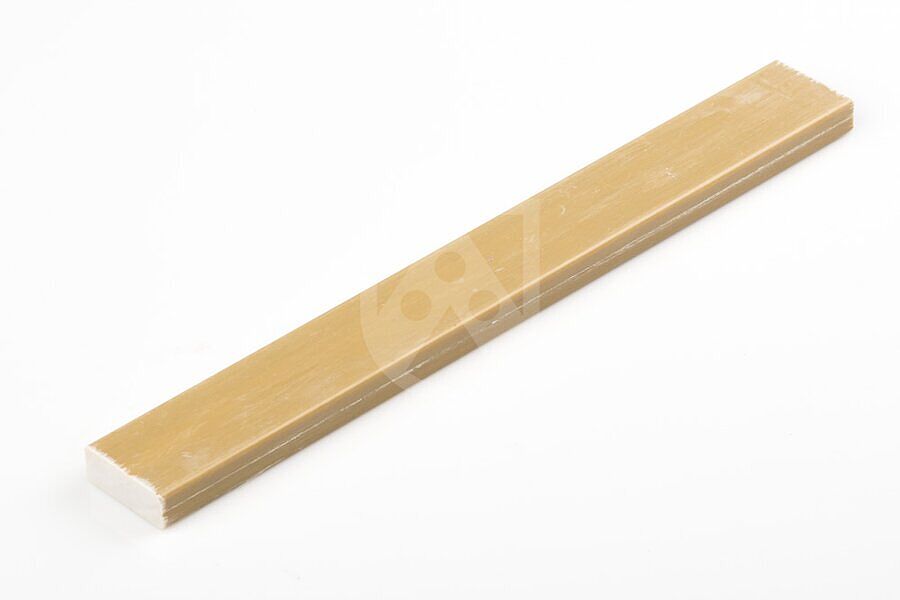

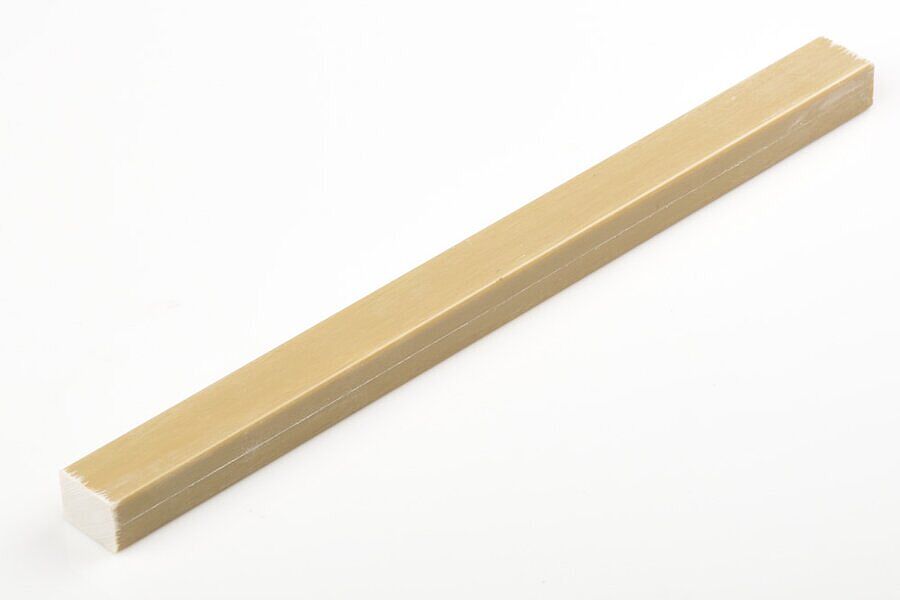

Glastic® Glasrod SG-200
GFK-UP
Characteristics
- Strong, excellent retention of properties at elevated temperature, easily fabricated
- Good dimensional stability
Technical Specifications Glastic® Glasrod SG-200
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Standard Color | Tan | ||
| UL Temperature Index - Electrical | UL 746B | °C | 210 |
| UL Temperature Index - Mechanical | UL 746B | °C | 210 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flexural Strength | ASTM D 790 | psi | 80,000 |
| Tensile Strength | ASTM D 638 | psi | 70,000 |
| Tensile Modulus | ASTM D 638 | psi X 106 | 2 |
| IZOD Impact Strength (notched) | ASTM D 256 | ft. lb./in. | 40 |
| In-Plane Shear Strength | ASTM D 3914 | psi | 3,000 |
| Compressive Strength - Axial | ASTM D 695 | psi | 50,000 |
| Compressive Strength - Transverse | ASTM D 695 | psi | 14,000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Coefficient of Thermal Expansion | ASTM D 696 | (in./in.°C) x 10-5 | 0.7 |
| Thermal Conductivity | ASTM C 177 | 2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| UL Subject 94 | UL 94 | HB | |
| UL High Amp Ignition | UL 746A | 200+ | |
| Oxygen Index | ASTM D 2863 | %O2 | 21.8 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Specific Gravity | ASTM D 792 | 1.85 | |
| Water Absorption | ASTM D 570 | % | 0.15 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Arc Resistance | ASTM D 495 | sec. | 150 |
| Permittivity, 60 Hz | ASTM D 150 | 5 | |
| Insulation Resistance | ASTM D 257 | Ω x 1012 | 64 |
| Electrical Strength - Axial in Oil | kV | 70 |
