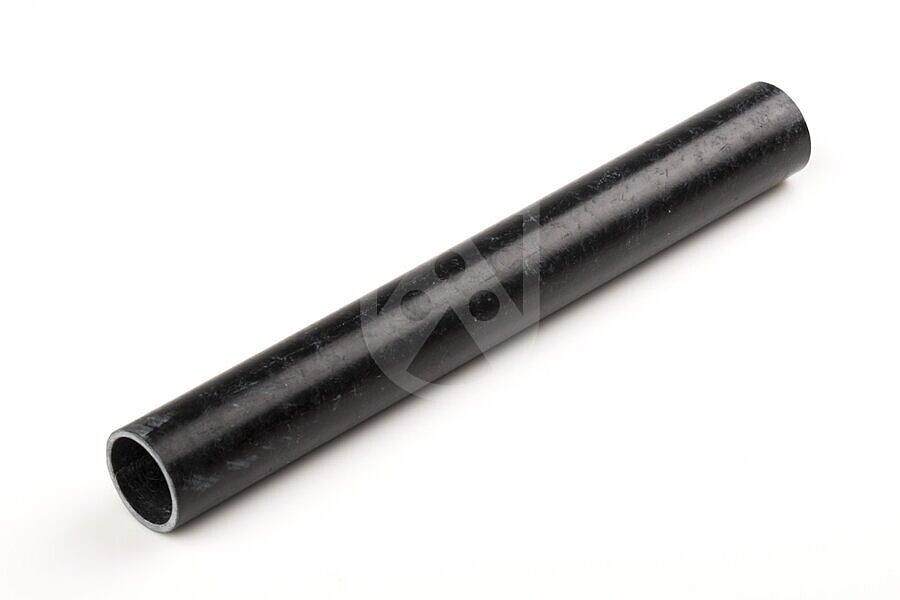

Glastic® UTR Composite Tubing
GFK-UP
Characteristics
- 1,000 Minutes Track Resistance, Electrically Insulating, Highly Flame Resistant, Low Smoke & Smoke Toxicity, UL® Recognized, and Halogen-Free
- Cost-Effective
- Dimensionally Stable
Technical Specifications Glastic® UTR Composite Tubing
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| NEMA Grade LI 1-1989 | NEMA LI-1 | GPO-3 | |
| UL Temperature Index - Electrical | UL 746B | °C | 130 |
| UL Temperature Index - Mechanical | UL 746B | °C | 160 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Tensile Strength | ASTM D 638 | psi | 30,700 |
| Tensile Modulus | ASTM D 638 | psi X 106 | 2.28 |
| Plastic Pipe Load Deflection | ASTM D 2412 | lbs. | 126 |
| Plastic Pipe Flexural Strength | ASTM D 790 | lbs. | 134 |
| Burst Strength | ASTM D 1180 | psi | 1300 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water Absorption | ASTM D 570 | % by wt. | 0.5 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Arc Resistance | ASTM D 495 | sec. | 150 |
| Inclined Plane Track Resistance | ASTM D 2303 | min. | 300 |
