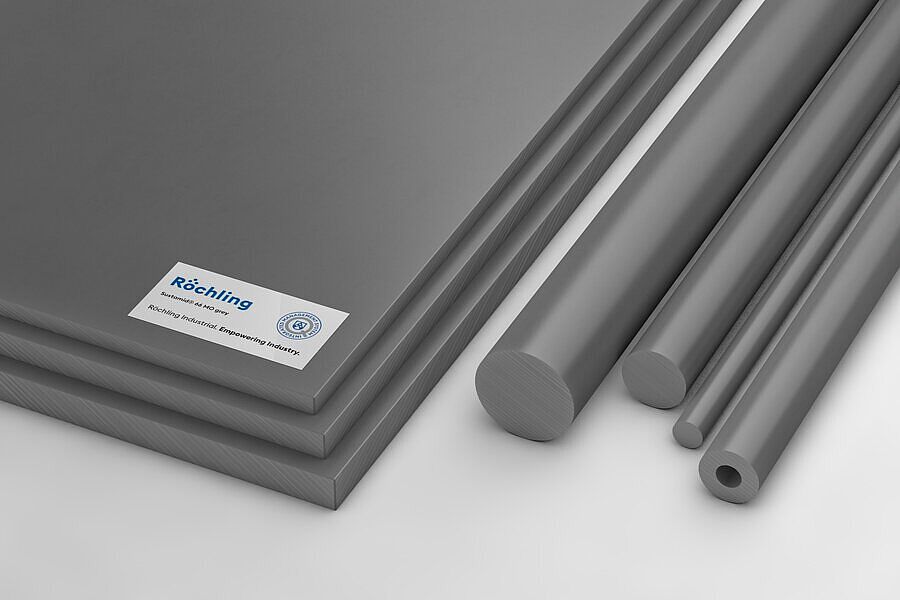

Sustamid® 66 MO (Extruded Nylon MoS2 Filled) - ASTM
PA — PA 66
Characteristics
- Good dimensional stability
- Good sliding properties
- High abrasion resistance
Technical Specifications Sustamid® 66 MO (Extruded Nylon MoS2 Filled) - ASTM
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ASTM D792 | g / cm3 | 1.15 |
| Water Absorption | ASTM D570 | % | 8.5 |
| Water Absorption 24 hours | ASTM D570 | % | 1.0 |
| Dissipation Factor | ASTM D150 | 1MHz | 0.02 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Tensile Strength at Yield | ASTM D638 | psi | 12000 |
| Hardness | ASTM D2240 | Shore D | 85 |
| Tensile Elongation | ASTM D638 | % | 25 |
| Flexural Strength | ASTM D790 | psi | 17000 |
| Flexural Modulus | ASTM D790 | psi | 460000 |
| Compressive Strength | ASTM D695 | psi | 16000 |
| Rockwell Hardness | ASTM D785 | M | 85 |
| Rockwell Hardness | ASTM D785 | R | 115 |
| Shear Strength | ASTM D732 | psi | 10500 |
| Izod Impact, Notched | ASTM D256 | ft-lb/in | 0.6 |
| Coefficient of Friction, Dynamic | 0.23 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal Conductivity | in/hr/ft2 /°F | 1.7 | |
| Coefficient of Linear Thermal Expansion | ASTM D696 | in/in/°F x10-5 | 4.0 |
| Melting Point | ASTM D789 | °F | 495 |
| Continuous Service Temperature, Air | °F | 220 | |
| Flammability, UL94 | 1/8 inch | HB | |
| Deflection Temperature at 264psi | ASTM D648 | °F | 195 |
| Deflection Temperature at 66psi | ASTM D648 | °F | 470 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | ASTM D150 | 1MHz | 3.8 |
| Dielectric strength | ASTM D149 | V/mil | 350 |
| Surface resistivity | ASTM D257 | Ω/cm | >1013 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| FDA | No | ||
| NSF | No | ||
| USDA | No |
