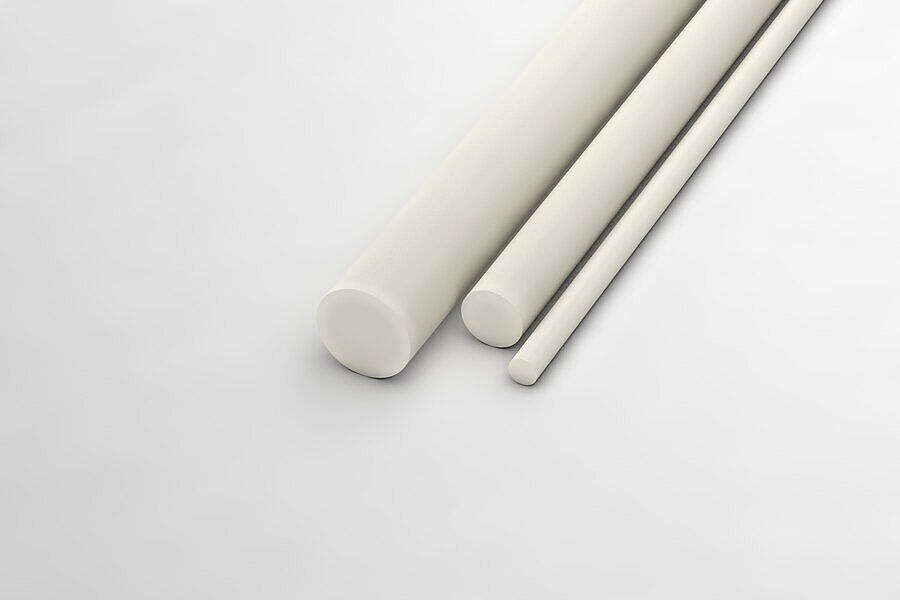

Polystone® G virgin natural - ASTM
PE — PE-HD - PE 300
Characteristics
- Good machinability
- Good weldability
- Chemical resistant
- Good mechanical properties
Technical Specifications Polystone® G virgin natural - ASTM
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ASTM D792 | g / cm3 | 0.955 |
| Water Absorption | ASTM D570 | % | 0.10 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Hardness | ASTM D2240 | Shore D | 65 |
| Tensile Strength at yield 73°F | ASTM D638 | psi | 4000 |
| Tensile Modulus | ASTM D638 | psi | 217000 |
| Elongation at Break | ASTM D638 | % | >700 |
| Flexural Strength | ASTM D790 | psi | 210000 |
| Izod Impact, Notched | ASTM D256 | ft-lb/in | 3.5 |
| Coefficient of Friction, Dynamic | 0.20-0.29 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Coefficient of Linear Thermal Expansion | ASTM D696 | in/in/°F x10-5 | 6 |
| Melting Point | °F | 268 | |
| Maximum Service Temperature, Air | °F | 180 | |
| Heat Deflection Temperature 264psi | ASTM D648 | °F | 165 |
| Brittleness Temperature | ASTM D746 | °F | -103 |
| Flammability, UL94 | 1/8 inch | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | ASTM D150 | 1MHz | 2.4 |
| Surface resistivity | ASTM D257 | Ω/cm | >1014 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| FDA | Yes | ||
| NSF | No | ||
| USDA | Yes |
