LubX® C - ASTM

PE — PE-UHMW - PE 1000

Characteristics

Energy-saving
Coefficient of friction with POM as sliding partner up to 75% less than of PE-UHMW
Coefficient of friction with steel as sliding partner up to 60% less than of PE-UHMW
Noise-reducing
Good sliding properties even at higher load
FDA compliant

Industries

Application Examples

Slide rails for spiral frosters

Profiles made of our material LubX^® are used in the construction of spiral frosters for frozen pizzas. With its outstanding slide properties, the material helps to reduce the conveying power required and hence the energy used. LubX^® meets the requirements of Regulation 10/2011/EU and the FDA and so is suitable for direct contact with foodstuffs. Depending on the application we recommend LubX^® CV, LubX^® C, LubX^® S or LubX^® Ast black.

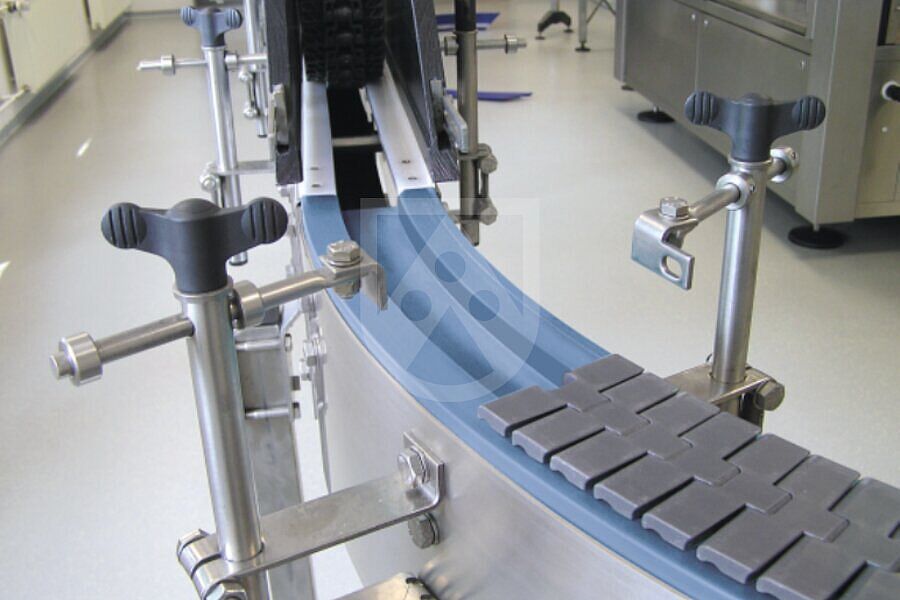

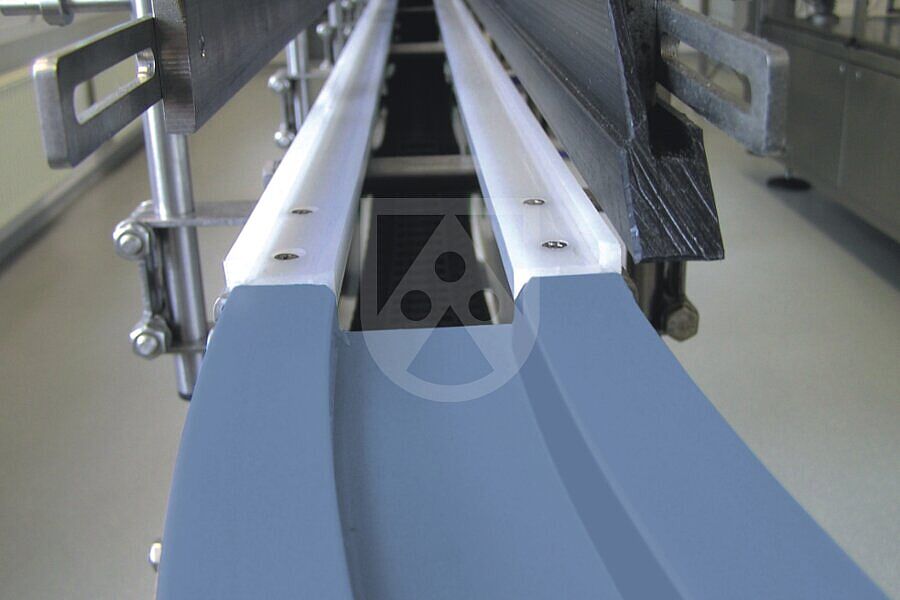

Slide elements for beverage bottling plants

Our LubX^® product range offers heavy-duty sliding materials specifically developed for conveyor technology. Thanks to its outstanding slide properties, conveyor systems equipped with LubX®, such as those in beverage bottling plants, need less energy, slip-stick effects are avoided and the stability of the conveyor processes is improved. Depending on the application we recommend LubX^® CV, LubX^® C, LubX^® S or LubX^® Ast black.

Technical Specifications LubX® C - ASTM

General properties

	Test Method	Unit	Guideline Value
Water Absorption	ASTM D570	%	0.01

Mechanical properties

	Test Method	Unit	Guideline Value
Hardness	ASTM D2240	Shore D	60
Tensile Strength at yield 73°F	ASTM D638	psi	2700
Elongation at Break	ASTM D638	%	>250

Thermal properties

	Test Method	Unit	Guideline Value
CTE, linear	ASTM D696	1/K	1.0x10^-4
Melting Point		°F	275
Maximum Service Temperature, Air		°F	180
Heat Deflection Temperature 264psi	ASTM D648	°F	108
Flammability, UL94		1/8 inch	HB
