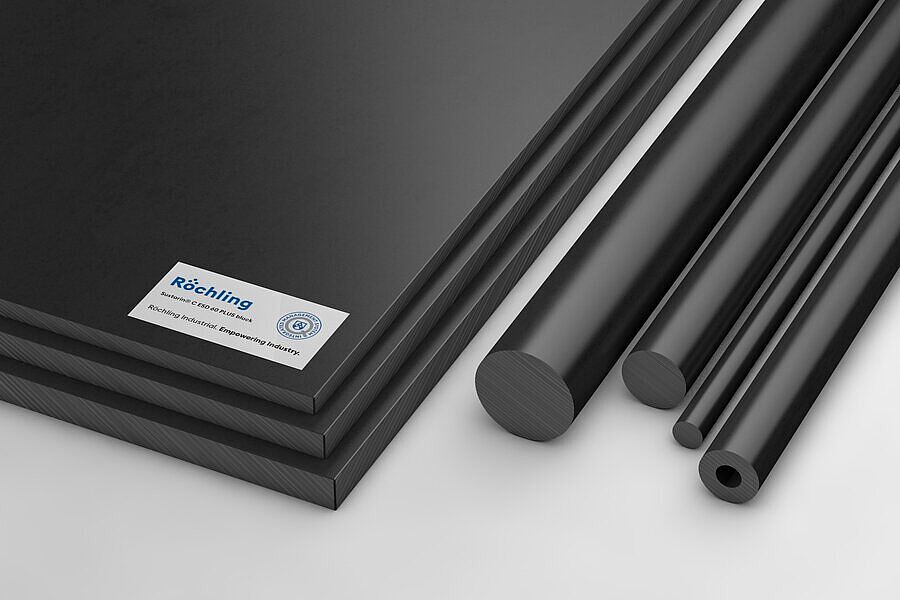

Sustarin® C ESD 60 PLUS black
POM-C
For electrically conductive and high-performance components
Sustarin© C ESD 60 PLUS has high level of mechanical stability and improved resistance to wear. The material fulfils the large market demand for electrically conductive materials that also need to withstand high mechanical loads. For instance, for: electronics industry, conveyor technology, mechanical engineering or ex zones.
black
rodsheet
Characteristics
- Conducto electrico
- Alta rigidez
- Buena estabilidad dimensional
Variants
Technical Specifications Sustarin® C ESD 60 PLUS black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 45 |
| Elongation at break | DIN EN ISO 527 | % | 10 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3700 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 2,5 |
| Shore hardness | DIN EN ISO 868 | scale D | 78 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 180 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 165 |
| Service temperature, long term | Average | °C | -20 … 100 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 110 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resistivity | DIN EN 62631-3-2 | Ω | =104 |
