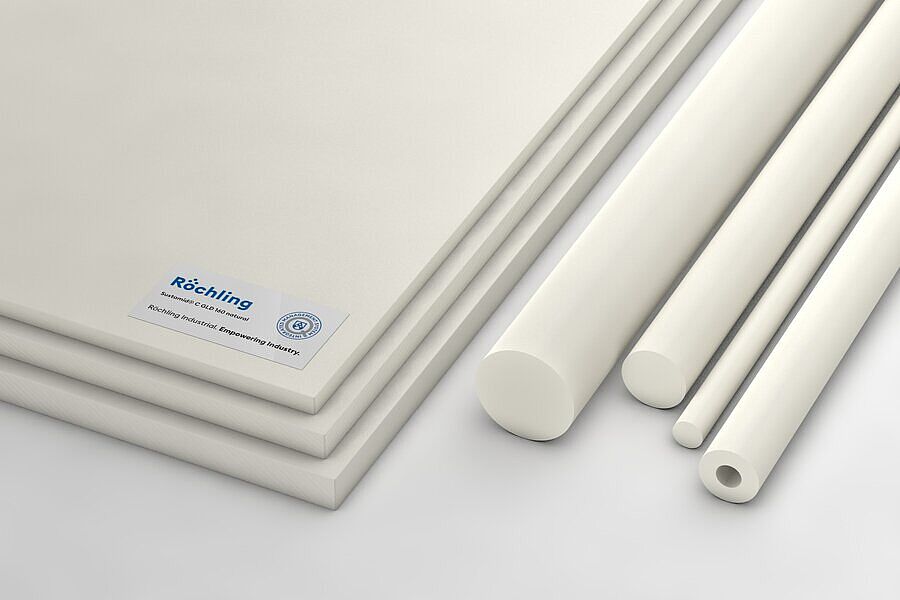

Sustarin® C GLD 160 natural
POM-C
natural
tubular barrodsheet
Characteristics
- Sin efecto "stick-slip"
- Alta resistencia a la tracción
- Alta rigidez
- Buena resistencia al impacto
- Baja absorción de humedad
- Alta resistencia a la abrasión
- Buena maquinabilidad
- Bajo coeficiente de fricción
- Buenas propiedades eléctricas
- Excelente rigidez dieléctrica
- Buenas propiedades de deslizamiento
- Muy buena resistencia a la abrasión y al desgaste.
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 102742 | Sustarin® C GLD 160 natural extruded | tubular bar | tubular bar | natural | Ø 95/80 x 3000 mm | 3.000 mm | 95 mm | 80 mm | ||
| No stock item (MOQ) | 141442 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3.000 mm | 50 mm | |||
| No stock item (MOQ) | 141463 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 40 x 3000 mm | 3.000 mm | 40 mm | |||
| No stock item (MOQ) | 141466 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 80 x 3000 mm | 3.000 mm | 80 mm | |||
| No stock item (MOQ) | 142001 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 35 x 3000 mm | 3.000 mm | 35 mm | |||
| No stock item (MOQ) | 142002 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 20 x 3000 mm | 3.000 mm | 20 mm | |||
| No stock item (MOQ) | 637463 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 30 x 3000 mm | 3.000 mm | 30 mm | |||
| No stock item (MOQ) | 757358 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 30 x 1000 mm | 1.000 mm | 30 mm | |||
| No stock item (MOQ) | 800801 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 80 x 1000 mm | 1.000 mm | 80 mm | |||
| No stock item (MOQ) | 803473 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 50 x 620 x 3000 mm | 3.000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 804003 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 35 x 1000 mm | 1.000 mm | 35 mm | |||
| No stock item (MOQ) | 804004 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 40 x 1000 mm | 1.000 mm | 40 mm | |||
| No stock item (MOQ) | 804005 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 50 x 1000 mm | 1.000 mm | 50 mm | |||
| No stock item (MOQ) | 807798 | Sustarin® C GLD 160 natural extruded | tubular bar | tubular bar | natural | Ø 125/80 x 3000 mm | 3.000 mm | 125 mm | 80 mm | ||
| No stock item (MOQ) | 810109 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 16 x 620 x 3000 mm | 3.000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 810110 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 16 x 620 x 1000 mm | 1.000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 925205 | Sustarin® C GLD 160 natural extruded | rod | rod | natural | Ø 25 x 3000 mm | 3.000 mm | 25 mm | |||
| No stock item (MOQ) | 928316 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 20 x 620 x 3000 mm | 3.000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 928366 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 50 x 620 x 1000 mm | 1.000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 928517 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 12 x 620 x 1000 mm | 1.000 mm | 620 mm | 12 mm | ||
| No stock item (MOQ) | 931524 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 20 x 620 x 1000 mm | 1.000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 933595 | Sustarin® C GLD 160 natural extruded | sheet | sheet | natural | 16 x 620 x 2000 mm | 2.000 mm | 620 mm | 16 mm |
Technical Specifications Sustarin® C GLD 160 natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,52 |
| Water absorption | DIN EN ISO 62 | % | 0,7 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 16 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 165 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 120 |
| Service temperature, long term | Average | °C | -50 … 100 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 98 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,7 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1015 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 33 |
