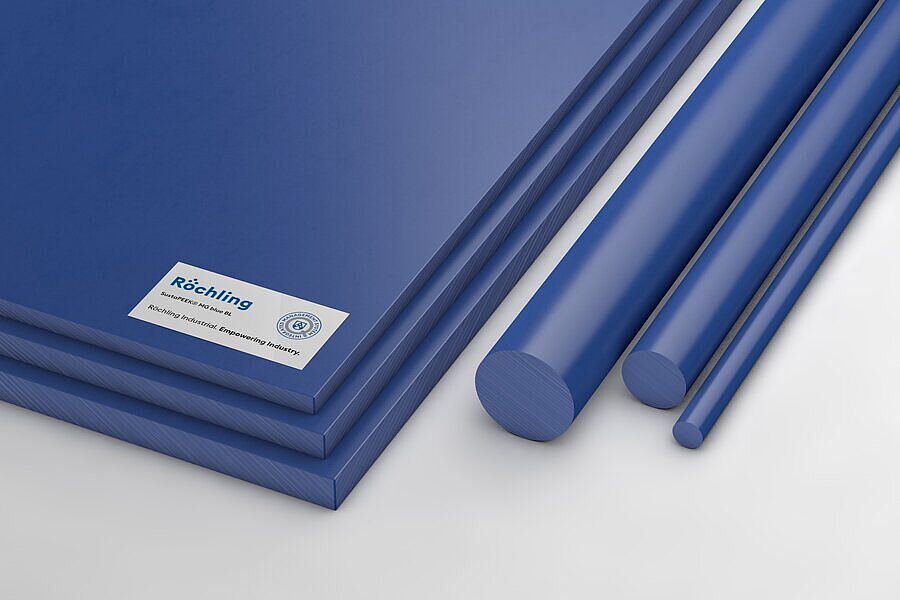

SustaPEEK MG blue BL
PEEK
Our premium material especially for medical devices
SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.
Characteristics
- Alta pureza
- Muy buena resistencia a la esterilización.
- Alta resistencia
- Alta rigidez
- ISO 10993-5 probada en producto semiacabado
- Estable a altas temperaturas hasta 250°C en funcionamiento continuo.
- Resistencia química
Industries

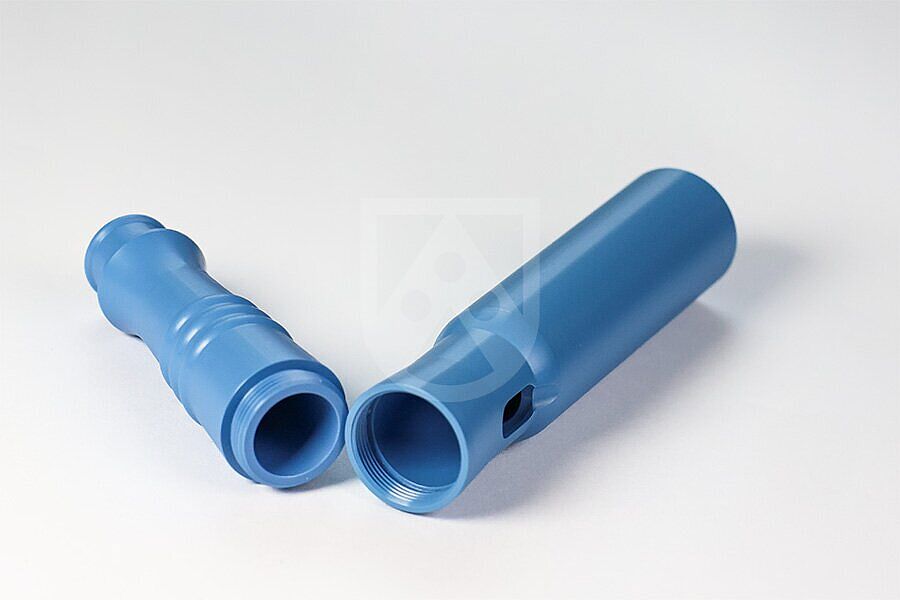

Application Examples
We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 777586 | SustaPEEK MG blue extruded | rod | rod | Ø 60 x 3000 mm | 3.000 mm | 60 mm |
Technical Specifications SustaPEEK MG blue BL
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,39 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 110 |
| Elongation at break | DIN EN ISO 527 | % | 10 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4000 |
| Notched impact strength | ISO 179-1/1eA | kJ / m2 | 3,7 |
| Shore hardness | DIN EN ISO 868 | scale D | 87 |
| Elastic modulus of compression | DIN EN ISO 604 | MPa | 3600 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 341 |
