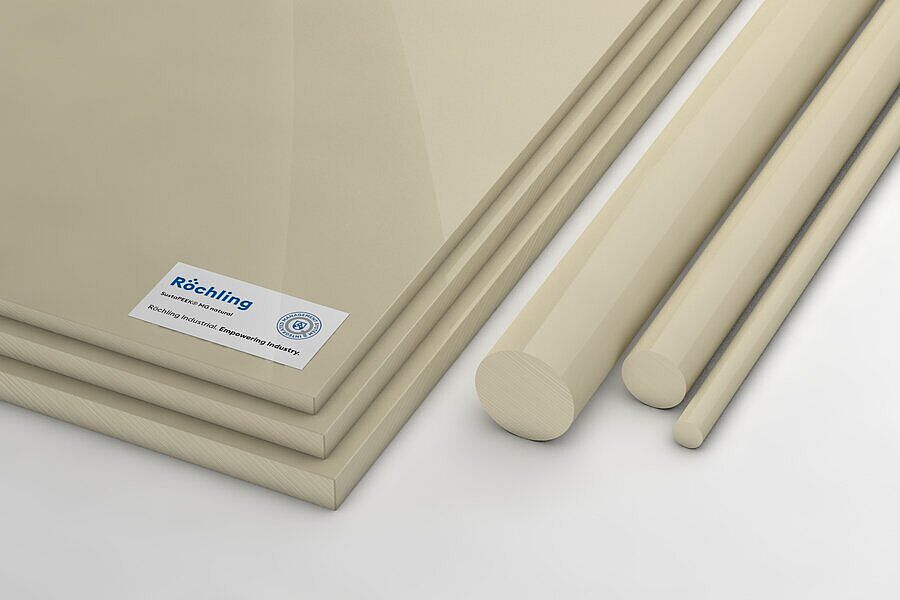

SustaPEEK MG natural

PEEK

Our premium material especially for medical devices

SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.

natural
sheetrod
QR-Code

Characteristics

  • Alta pureza
  • Muy buena resistencia a la esterilización.
  • ISO 10993-5 probada en producto semiacabado
  • Alta resistencia
  • Alta rigidez
  • Estable a altas temperaturas hasta 250°C en funcionamiento continuo.
  • Resistencia química

Industries

Application Examples

+

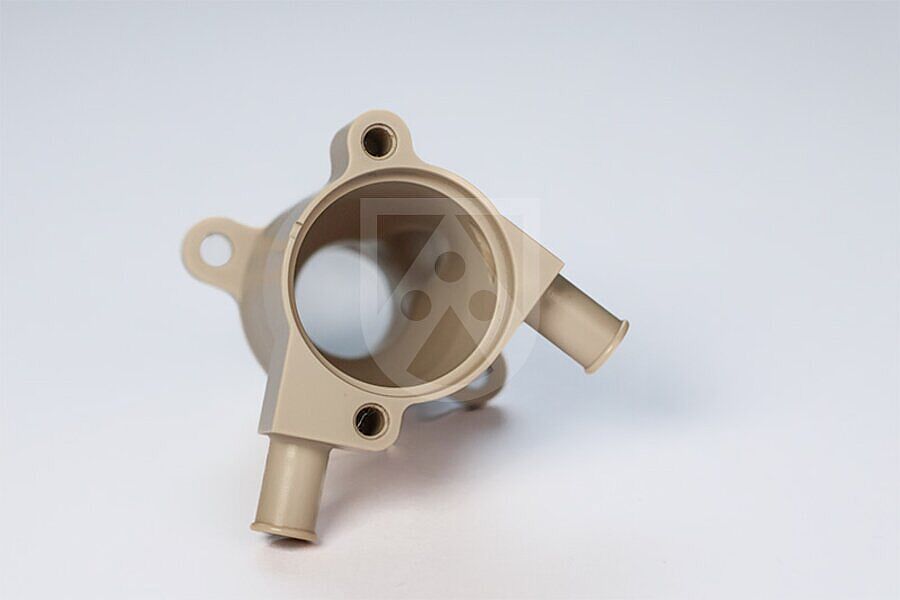

Unidad de Biopsia de Mama

La unidad de biopsia mamaria se mecaniza con precisión para cumplir tolerancias estrictas según los planos del cliente. Ofrece excelentes procedimientos de limpieza y esterilización, así como biocompatibilidad conforme a la norma DIN EN ISO 10993-5, y se suministra como grupo de montaje fabricado en material SustaPEEK MG.

+

Mango para instrumental quirúrgico

Reto: Esterilizable, tacto de alta calidad y superficie de alta calidad, mecanizado con tolerancias muy ajustadas Se eligió SustaPEEK® MG por sus propiedades especiales: Buena estabilidad requerida para la fabricación (componentes complejos y tolerancias muy ajustadas) Disipación del calor Buenas propiedades térmicas Buena resistencia química

+

Mango para una sonda ultrasónica

Mango para una sonda ultrasónica mecanizado por desprendimiento de viruta a partir de SustaPEEK® MG.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.

Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		600688SustaPEEK MG natural extruded sheet sheet natural10 x 620 x 1000 mm 1.000 mm 620 mm 10 mm
No stock item (MOQ)		601306SustaPEEK MG natural extruded rod rod naturalØ 100 x 1000 mm 1.000 mm 100 mm
No stock item (MOQ)		601944SustaPEEK MG natural extruded sheet sheet natural20 x 620 x 1000 mm 1.000 mm 620 mm 20 mm
No stock item (MOQ)		605977SustaPEEK MG natural extruded rod rod naturalØ 55 x 1000 mm 1.000 mm 55 mm
No stock item (MOQ)		615247SustaPEEK MG natural extruded sheet sheet natural5 x 620 x 1000 mm 1.000 mm 620 mm 5 mm
No stock item (MOQ)		629918SustaPEEK MG natural extruded rod rod naturalØ 200 x 1000 mm 1.000 mm 200 mm
No stock item (MOQ)		650387SustaPEEK MG natural extruded rod rod naturalØ 36 x 2000 mm 2.000 mm 36 mm
No stock item (MOQ)		660888SustaPEEK MG natural extruded rod rod naturalØ 60 x 1000 mm 1.000 mm 60 mm
Stock item (no MOQ)		673721SustaPEEK MG natural extruded sheet sheet natural8 x 620 x 3000 mm 3.000 mm 620 mm 8 mm
No stock item (MOQ)		673723SustaPEEK MG natural extruded sheet sheet natural8 x 620 x 1000 mm 1.000 mm 620 mm 8 mm
No stock item (MOQ)		673788SustaPEEK MG natural extruded sheet sheet natural12 x 620 x 3000 mm 3.000 mm 620 mm 12 mm
No stock item (MOQ)		673789SustaPEEK MG natural extruded sheet sheet natural12 x 620 x 1000 mm 1.000 mm 620 mm 12 mm
No stock item (MOQ)		760138SustaPEEK MG natural extruded rod rod naturalØ 110 x 1000 mm 1.000 mm 110 mm
No stock item (MOQ)		760139SustaPEEK MG natural extruded rod rod naturalØ 110 x 3000 mm 3.000 mm 110 mm
No stock item (MOQ)		765343SustaPEEK MG natural extruded sheet sheet natural16 x 620 x 2000 mm 2.000 mm 620 mm 16 mm
Stock item (no MOQ)		806297SustaPEEK MG natural extruded rod rod naturalØ 32 x 3000 mm 3.000 mm 32 mm
No stock item (MOQ)		806416SustaPEEK MG natural extruded sheet sheet natural20 x 620 x 3000 mm 3.000 mm 620 mm 20 mm
No stock item (MOQ)		806417SustaPEEK MG natural extruded sheet sheet natural16 x 620 x 3000 mm 3.000 mm 620 mm 16 mm
No stock item (MOQ)		806419SustaPEEK MG natural extruded sheet sheet natural16 x 620 x 1000 mm 1.000 mm 620 mm 16 mm
No stock item (MOQ)		806502SustaPEEK MG natural extruded rod rod naturalØ 10 x 3000 mm 3.000 mm 10 mm
No stock item (MOQ)		806503SustaPEEK MG natural extruded rod rod naturalØ 10 x 1000 mm 1.000 mm 10 mm
Stock item (no MOQ)		806506SustaPEEK MG natural extruded rod rod naturalØ 40 x 3000 mm 3.000 mm 40 mm
No stock item (MOQ)		806507SustaPEEK MG natural extruded rod rod naturalØ 40 x 1000 mm 1.000 mm 40 mm
Stock item (no MOQ)		806596SustaPEEK MG natural extruded rod rod naturalØ 16 x 3000 mm 3.000 mm 16 mm
No stock item (MOQ)		806599SustaPEEK MG natural extruded sheet sheet natural10 x 620 x 3000 mm 3.000 mm 620 mm 10 mm
Stock item (no MOQ)		806606SustaPEEK MG natural extruded rod rod naturalØ 20 x 3000 mm 3.000 mm 20 mm
No stock item (MOQ)		806607SustaPEEK MG natural extruded rod rod naturalØ 20 x 1000 mm 1.000 mm 20 mm
No stock item (MOQ)		806608SustaPEEK MG natural extruded rod rod naturalØ 25 x 1000 mm 1.000 mm 25 mm
Stock item (no MOQ)		806609SustaPEEK MG natural extruded rod rod naturalØ 25 x 3000 mm 3.000 mm 25 mm
Stock item (no MOQ)		806610SustaPEEK MG natural extruded rod rod naturalØ 30 x 3000 mm 3.000 mm 30 mm
No stock item (MOQ)		806611SustaPEEK MG natural extruded rod rod naturalØ 30 x 1000 mm 1.000 mm 30 mm
Stock item (no MOQ)		806635SustaPEEK MG natural extruded sheet sheet natural6 x 620 x 3000 mm 3.000 mm 620 mm 6 mm
Stock item (no MOQ)		806637SustaPEEK MG natural extruded sheet sheet natural30 x 620 x 3000 mm 3.000 mm 620 mm 30 mm
Stock item (no MOQ)		806642SustaPEEK MG natural extruded rod rod naturalØ 50 x 3000 mm 3.000 mm 50 mm
Stock item (no MOQ)		806643SustaPEEK MG natural extruded rod rod naturalØ 60 x 3000 mm 3.000 mm 60 mm
No stock item (MOQ)		806688SustaPEEK MG natural extruded rod rod naturalØ 8 x 3000 mm 3.000 mm 8 mm
No stock item (MOQ)		806689SustaPEEK MG natural extruded rod rod naturalØ 12 x 3000 mm 3.000 mm 12 mm
No stock item (MOQ)		806697SustaPEEK MG natural extruded sheet sheet natural25 x 620 x 1000 mm 1.000 mm 620 mm 25 mm
No stock item (MOQ)		806698SustaPEEK MG natural extruded sheet sheet natural30 x 620 x 1000 mm 1.000 mm 620 mm 30 mm
No stock item (MOQ)		806699SustaPEEK MG natural extruded sheet sheet natural6 x 620 x 1000 mm 1.000 mm 620 mm 6 mm
No stock item (MOQ)		806924SustaPEEK MG natural extruded rod rod naturalØ 6 x 3000 mm 3.000 mm 6 mm
No stock item (MOQ)		806925SustaPEEK MG natural extruded rod rod naturalØ 45 x 3000 mm 3.000 mm 45 mm
No stock item (MOQ)		806926SustaPEEK MG natural extruded rod rod naturalØ 70 x 3000 mm 3.000 mm 70 mm
Stock item (no MOQ)		806927SustaPEEK MG natural extruded rod rod naturalØ 80 x 3000 mm 3.000 mm 80 mm
No stock item (MOQ)		807276SustaPEEK MG natural extruded rod rod naturalØ 50 x 1000 mm 1.000 mm 50 mm
No stock item (MOQ)		807608SustaPEEK MG natural extruded rod rod naturalØ 45 x 1000 mm 1.000 mm 45 mm
No stock item (MOQ)		808145SustaPEEK MG natural extruded rod rod naturalØ 12 x 1000 mm 1.000 mm 12 mm
No stock item (MOQ)		808190SustaPEEK MG natural extruded rod rod naturalØ 36 x 3000 mm 3.000 mm 36 mm
No stock item (MOQ)		808513SustaPEEK MG natural extruded rod rod naturalØ 70 x 1000 mm 1.000 mm 70 mm
No stock item (MOQ)		808686SustaPEEK MG natural extruded rod rod naturalØ 6 x 1000 mm 1.000 mm 6 mm
No stock item (MOQ)		809019SustaPEEK MG natural extruded rod rod naturalØ 16 x 1000 mm 1.000 mm 16 mm
No stock item (MOQ)		809020SustaPEEK MG natural extruded rod rod naturalØ 32 x 1000 mm 1.000 mm 32 mm
No stock item (MOQ)		809170SustaPEEK MG natural extruded sheet sheet natural5 x 620 x 3000 mm 3.000 mm 620 mm 5 mm
No stock item (MOQ)		810172SustaPEEK MG natural extruded rod rod naturalØ 120 x 1000 mm 1.000 mm 120 mm
No stock item (MOQ)		810173SustaPEEK MG natural extruded rod rod naturalØ 120 x 3000 mm 3.000 mm 120 mm
No stock item (MOQ)		921774SustaPEEK MG natural extruded rod rod naturalØ 80 x 1000 mm 1.000 mm 80 mm
No stock item (MOQ)		924805SustaPEEK MG natural extruded rod rod naturalØ 8 x 1000 mm 1.000 mm 8 mm
Stock item (no MOQ)		926450SustaPEEK MG natural extruded rod rod naturalØ 100 x 3000 mm 3.000 mm 100 mm
No stock item (MOQ)		931215SustaPEEK MG natural extruded rod rod naturalØ 36 x 1000 mm 1.000 mm 36 mm
Stock item (no MOQ)		931249SustaPEEK MG natural extruded sheet sheet natural40 x 620 x 3000 mm 3.000 mm 620 mm 40 mm
No stock item (MOQ)		931373SustaPEEK MG natural extruded sheet sheet natural40 x 620 x 1000 mm 1.000 mm 620 mm 40 mm

Technical Specifications SustaPEEK MG natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,31
Water absorptionDIN EN ISO 62%0,2
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa110
Elongation at breakDIN EN ISO 527%20
Tensile modulus of elasticityDIN EN ISO 527MPa4000
Shore hardnessDIN EN ISO 868scale D88
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C343
Thermal conductivityDIN 52612-1W / (m * K)0,25
Thermal capacityDIN 52612kJ / (kg * K)1,34
Coefficient of linear thermal expansionDIN 5375210-6 / K50
Service temperature, long termAverage°C-60 … 250
Service temperature, short term (max.)Average°C310
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C152
Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (50 Hz)IEC 602500,001
Volume resistivityDIN EN 62631-3-1Ω * cm4,9 * 1016
Surface resistivityDIN EN 62631-3-2Ω1018
Dielectric strengthIEC 60243kV / mm20
