SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
---|---|---|---|---|---|---|---|---|---|---|---|

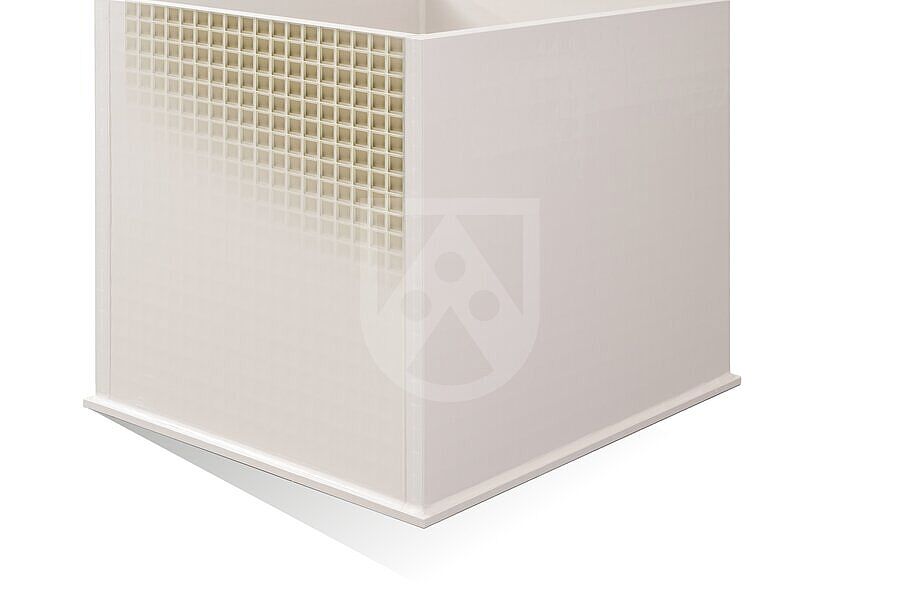

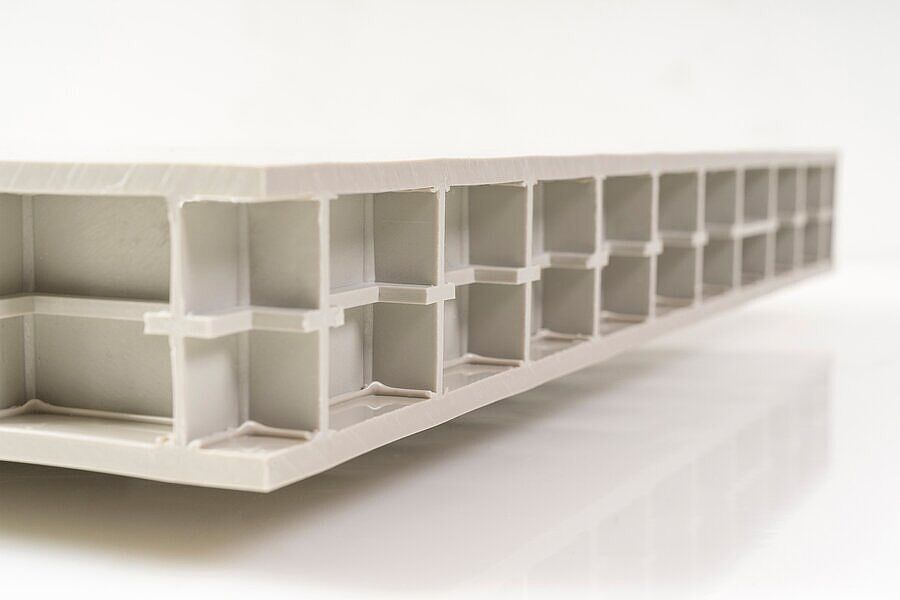

No stock item (MOQ) | 455019 | Polystone® G CubX® UV-stabilized white | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | white, similar RAL 9010 | 2.000 x 1.500 x 57 mm | 2.000 mm | 1.500 mm | 57 mm |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Thermal conductivity | ISO 8302 | Tested with: GHP 500-1, Single-sheet process | W / (m * K) | Lambda 0,2 |
Density | DIN EN ISO 1183 | g / cm3 | 0,3 |
Area weight | kg/m2 | 18,6 | |
Weld strength lattice / covering sheets | MPa | ≥ 16 | |
Flatness | DIN EN ISO 15860 | mm/m | 4 |
Test Method | Unit | Guideline Value | |
---|---|---|---|
Density, RT | DIN EN ISO 1183 | g / cm3 | 0,96 |
Yield stress | DIN EN ISO 527 | MPa | 24 |
Elongation at break | DIN EN ISO 527 | % | > 50 |
Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1000 |
Notched impact strength | DIN EN ISO 179 | kJ / m2 | 20 |
Dielectric constant | IEC 60250 | 2,5 | |
Surface resistivity | DIN EN 62631-3-2 | >1014 |
