Trovidur® EC-FR
PVC-U
T-FR1130 whiteT-1013 ivory

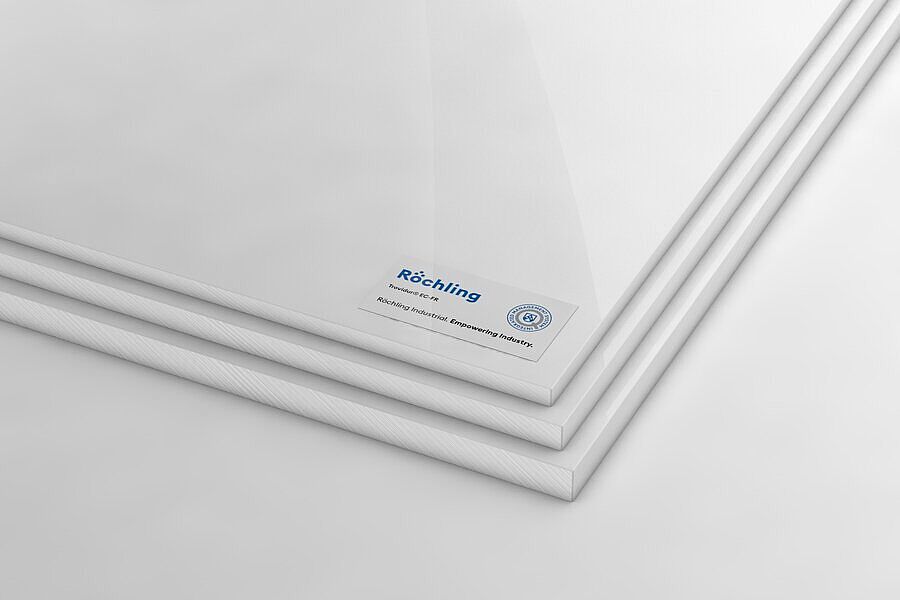

sheet
Characteristics
- Material de sala limpia
Industries

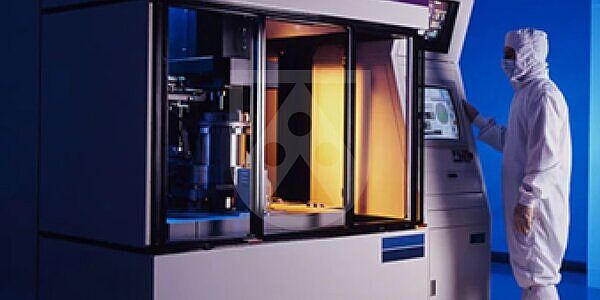

Semiconductor factory equipment- Semiconductor Front-End applications

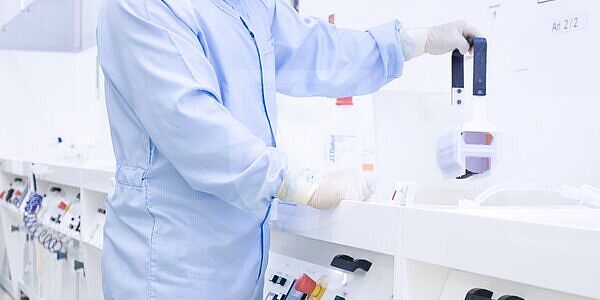

- Semiconductor Front-End Wet Bench
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 458134 | Trovidur® EC-FR SD beige extruded | welding rod | welding rod | T-1013 ivory | Ø 4 mm | 4 mm | ||||
| No stock item (MOQ) | 478224 | Trovidur® EC-FR SD beige extruded | welding rod | welding rod | T-1013 ivory | Ø 4 mm | 4 mm | ||||
| No stock item (MOQ) | 478440 | Trovidur® EC-FR SD beige extruded | welding rod | welding rod | T-1013 ivory | Ø 3 x1.000 mm | 1.000 mm | 3 mm | |||
| No stock item (MOQ) | 468123 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 10 mm | 3.000 mm | 1.500 mm | 10 mm | ||
| No stock item (MOQ) | 469702 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 6 mm | 3.000 mm | 1.500 mm | 6 mm | ||
| No stock item (MOQ) | 469720 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 15 mm | 3.000 mm | 1.500 mm | 15 mm | ||
| No stock item (MOQ) | 469722 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 20 mm | 3.000 mm | 1.500 mm | 20 mm | ||
| No stock item (MOQ) | 473288 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 12 mm | 3.000 mm | 1.500 mm | 12 mm | ||
| Stock item (no MOQ) | 474140 | Trovidur® EC-FR white extruded | sheet | sheet | T-FR1130 white | 3.000 x 1.500 x 6 mm | 3.000 mm | 1.500 mm | 6 mm | ||
| No stock item (MOQ) | 458913 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 10 mm | 3.000 mm | 1.500 mm | 10 mm | ||
| No stock item (MOQ) | 458914 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 12 mm | 3.000 mm | 1.500 mm | 12 mm | ||
| No stock item (MOQ) | 458915 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 15 mm | 3.000 mm | 1.500 mm | 15 mm | ||
| No stock item (MOQ) | 458916 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 20 mm | 3.000 mm | 1.500 mm | 20 mm | ||
| No stock item (MOQ) | 460736 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 8 mm | 3.000 mm | 1.500 mm | 8 mm | ||
| No stock item (MOQ) | 467602 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 1500 x 1.500 x 10 mm | 1.500 mm | 1.500 mm | 10 mm | ||
| No stock item (MOQ) | 469589 | Trovidur® EC-FR beige extruded | sheet | sheet | T-1013 ivory | 3.000 x 1.500 x 6 mm | 3.000 mm | 1.500 mm | 6 mm |
Technical Specifications Trovidur® EC-FR
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | ∼1,46 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Cleanroom Materials Flammability Test Protocol (Thickness 6...40 mm) | FM 4910 | listed |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 115 |
| Compressive strength | DIN EN ISO 604 | MPa | 75 |
| Bending strength | DIN EN ISO 178 | MPa | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN EN ISO 8302 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | -15 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 70 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼0,075 |
| Glow wire ignition tempearture | DIN EN 60695-2-13 | °C | 990 |
| Glow wire flammability index | DIN EN 60695-2-12 | °C | 960 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | ∼3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | ∼0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
| Dielectric strength | IEC 60243 | kV / mm | 12 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
